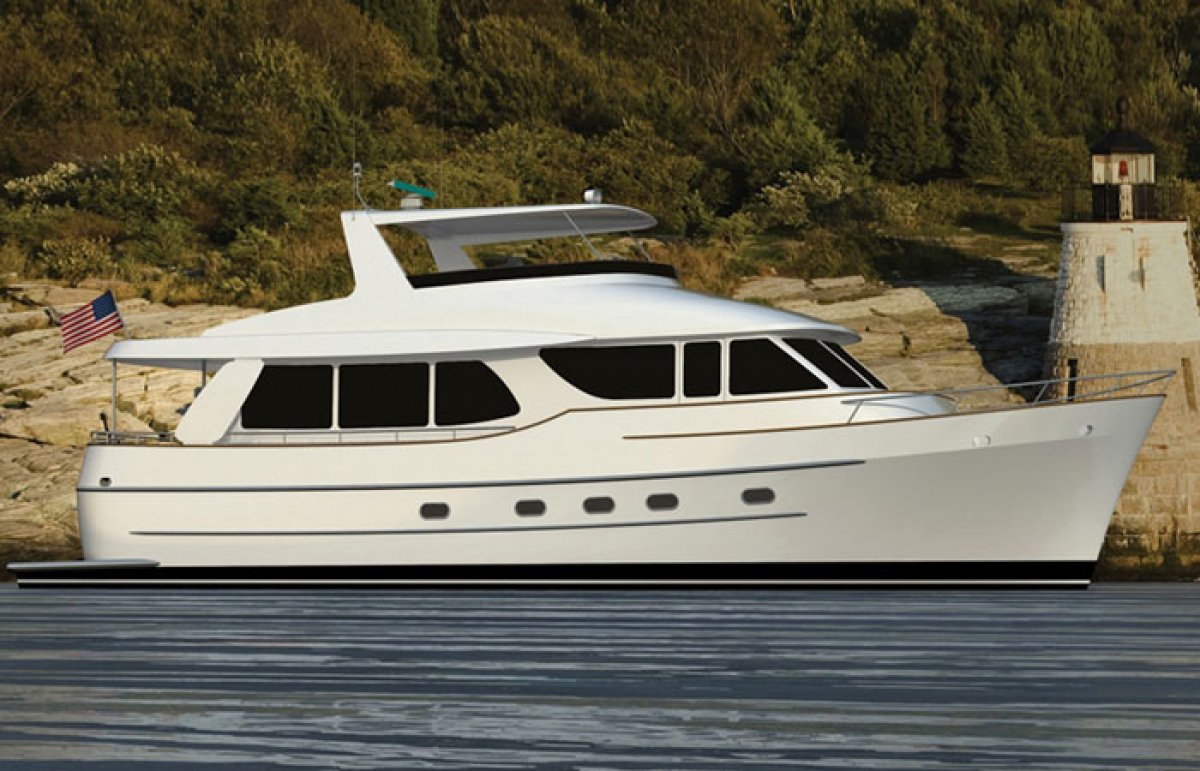

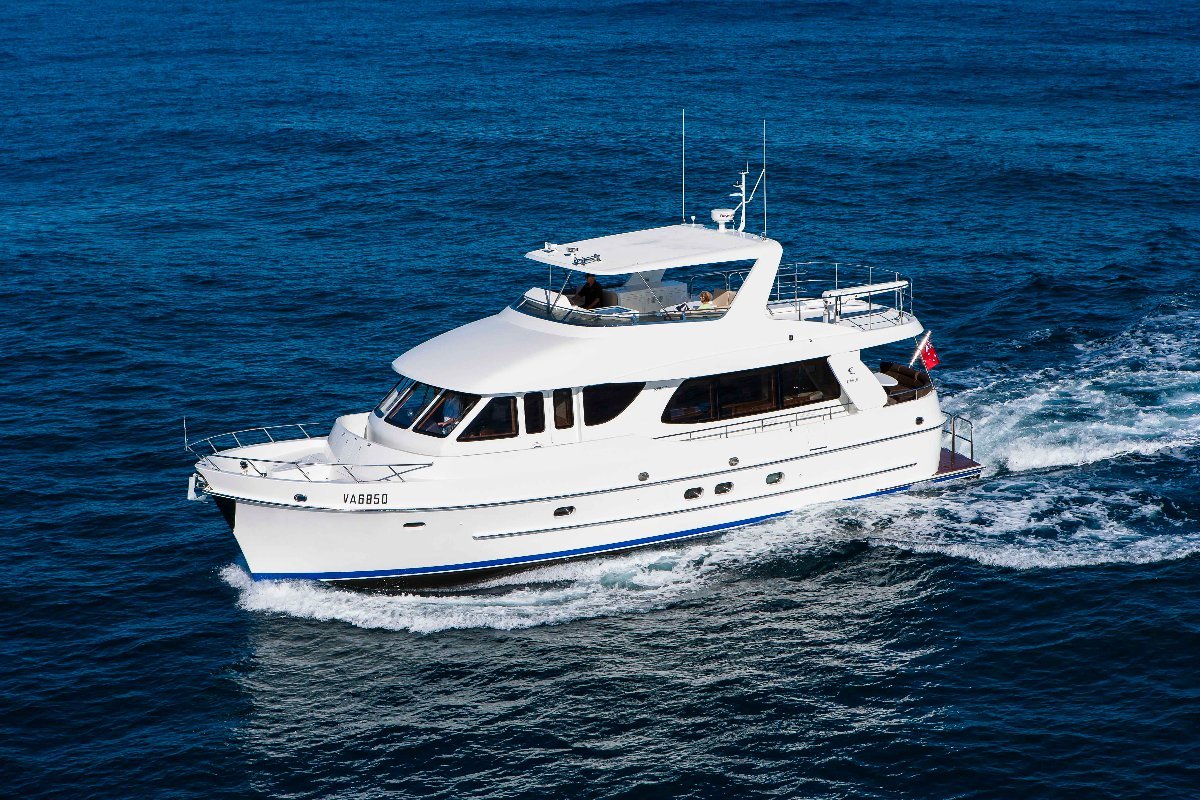

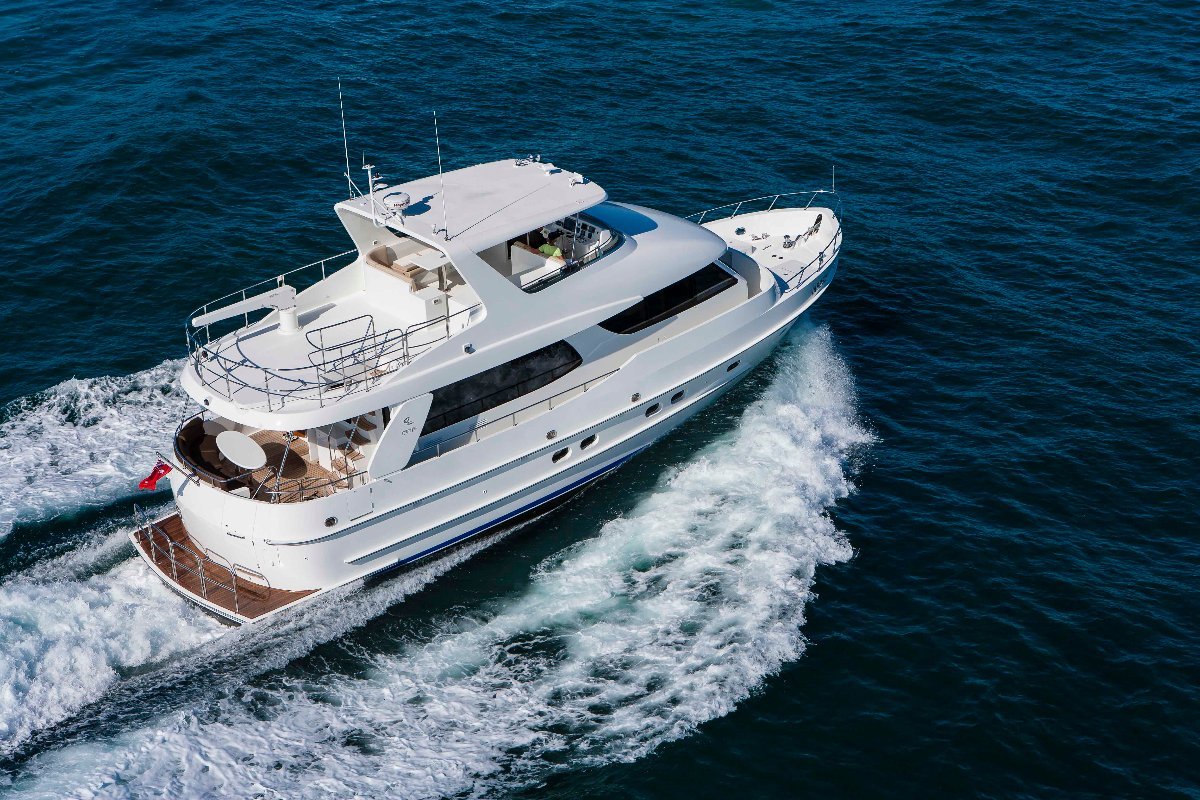

2017 Cheoy Lee Serenity 61
Length
61' 4" - 18.69m
Model Year
2017
Hull Material
Fibreglass/GRP
The latest in Cheoy Lee's full displacement Serenity Series, the Serenity 61 is another rugged and seaworthy yacht. Configured with a single main engine, with the option of a get home wing engine or twins, the Serenity 61 offers the range and ability to take on any ocean. The high freeboard, safe decks, canoe stern, double bottoms, Germanischer Lloyd approved construction and offshore commercial grade engineering makes this one of the most dependable yachts afloat. In combination with interior refinement, style and outstanding fuel efficiency, the Serenity 61 is a class above conventional trawler yachts, and a green alternative for the sophisticated luxury yacht owner.
Vessel Name
Built to Order
Model Year
2017
Length
61' 4" - 18.69m
Beam
17'2" (5.23m)
Draft
5'4" (1.63m)
Displacement
56,400kg
Use
Leisure, Cruising
Designer
Cheoy Lee
Builder
Cheoy Lee
Hull Material
Fibreglass/GRP
Engine
Single John Deere 6081AFM, M3 rating 330bhp
Genset
Onan 21.5kW, 60Hz
Fuel
1,800 USG (6,800 litre)
Water
425 USG (1600 litre)
Galley
Galley appliances
· GE four-burner electric cook top
· GE stainless steel electric oven
· GE stainless steel refrigerator/freezer
· GE stainless steel microwave oven with ventilation hood
· GE four-burner electric cook top
· GE stainless steel electric oven
· GE stainless steel refrigerator/freezer
· GE stainless steel microwave oven with ventilation hood
Deck Gear
Equipment
· Single trumpet air horn
· Fresh water anchor wash down
· CENTEK air/water separator generator muffler
· 220vAC reverse cycle direct expansion air-conditioning
· FIREBOY fire protection system, manually actuated fire extinguisher system
· NAIAD 25hp hydraulic bow thruster driven by gearbox PTO
· MORSE 'S' series engine controls
· LLEBROC series 2 helmsman's seat
· MAXWELL VWC3500 hydraulic windlass with 45 fathoms (270m) of 1/2" chain
· 110 lb. (50kg) Bruce type anchor
· 1,100 lb davit on flybridge
· ACR 100 searchlight with dual station remote control
· Stainless steel propeller shaft
· Dynamically balanced propeller
· PYI packless shaft seal
· JABSCO Deluxe Flush 24 volt DC electric heads, fresh water flush
· ParMAX 4 water pump fresh water pump with accumulator tank
· 220 volt 50 amp, 3-pole shore power inlet
· Isolation transformer (15 kVA) for shore power system
· Fresh water washdown bib on foredeck, flybridge and aft deck
· HART Tank Tender gauges
· Single trumpet air horn
· Fresh water anchor wash down
· CENTEK air/water separator generator muffler
· 220vAC reverse cycle direct expansion air-conditioning
· FIREBOY fire protection system, manually actuated fire extinguisher system
· NAIAD 25hp hydraulic bow thruster driven by gearbox PTO
· MORSE 'S' series engine controls
· LLEBROC series 2 helmsman's seat
· MAXWELL VWC3500 hydraulic windlass with 45 fathoms (270m) of 1/2" chain
· 110 lb. (50kg) Bruce type anchor
· 1,100 lb davit on flybridge
· ACR 100 searchlight with dual station remote control
· Stainless steel propeller shaft
· Dynamically balanced propeller
· PYI packless shaft seal
· JABSCO Deluxe Flush 24 volt DC electric heads, fresh water flush
· ParMAX 4 water pump fresh water pump with accumulator tank
· 220 volt 50 amp, 3-pole shore power inlet
· Isolation transformer (15 kVA) for shore power system
· Fresh water washdown bib on foredeck, flybridge and aft deck
· HART Tank Tender gauges
Remarks
Basic Specification
LOA: 61'4" (18.70m)
Length Waterline: 56'10" (17.32m)
Beam: 17'2" (5.23m)
Draft: 5'4" (1.63m)
Black Water: 245 USG (930 litre)
Grey Water Tank: 85 USG (320 litre)
Displacement: 124,000 lbs (56,400kg)
Interior Designer: Sylvia Bolton
Construction
· Molded fiberglass hull with stabilizer reinforcement and resin infused foam cored deck, superstructure, bulkheads and cabin soles
· Integral fiberglass fuel, fresh water and holding tanks with baffles and manholes
· Vinylester laminate and epoxy hull barrier with five-year structure and osmosis warranty
· Storage lockers/sun beds on foredeck.
LOA: 61'4" (18.70m)
Length Waterline: 56'10" (17.32m)
Beam: 17'2" (5.23m)
Draft: 5'4" (1.63m)
Black Water: 245 USG (930 litre)
Grey Water Tank: 85 USG (320 litre)
Displacement: 124,000 lbs (56,400kg)
Interior Designer: Sylvia Bolton
Construction
· Molded fiberglass hull with stabilizer reinforcement and resin infused foam cored deck, superstructure, bulkheads and cabin soles
· Integral fiberglass fuel, fresh water and holding tanks with baffles and manholes
· Vinylester laminate and epoxy hull barrier with five-year structure and osmosis warranty
· Storage lockers/sun beds on foredeck.
