2019 Monterey M6

LUXURIOUS MULTITASKER
The M6 has everything you'll need to enjoy a full day of cruising, skiing, wakeboarding and tubing. Featuring spacious seating and storage options, a head compartment, two recessed and telescoping boarding ladders located in the bow and stern, and a Fusion satellite ready AM/FM stereo, you'll have everything you need to enjoy your time out on the water. With the standard signature graphics and colored hull and deck, you're sure to have one of the sharpest boats on the water. The M6 is style, luxury and performance personified!

S = Syandard inclusion.
O = Optional.
Canvas
Bimini Top w/Embroidered Boot S
Bow and Cockpit Cover O

Cockpit
Cockpit Table w/ Pedestal & Vertical Side Mount Bases, Fwd & Aft S
Cooler, 48 Qt Carry-On S
Courtesy Lighting, Blue/White, LED 12 V S
Drink Holders, Stainless Steel (13) S
Fiberglass Cockpit Liner w/Non-Skid & Drainage S
Grab Rails S
Outlet, 12 V S
Stereo, Fusion Satellite Ready AM/FM w/built-in iPod Dock & (4) Speakers & Dash Remote S
Storage, In-Floor Ski w/Gas Assisted Hatch Cover & Dry Deck S
Storage, Starboard Helm S
Transom Shower w/Pressurized Water (Cold Only) S
Cockpit Inlay (SeaDek) (Requires Swim Platform Inlay Option) O
Forward Shower O
Premium Stereo Upgrade Includes 4 upgrade speakes, sub-woofer, LED Lights & 5 Channel Amp (Requires Dual Battery Switch) O
Stern Mounted Stereo Remote O
Cone Speakers with 2 Channel Amp (Requires Stereo Upgrade Package and Wakeboard Tower) O
Wet Bar w/Solid Surface Insert, Sink, Faucet, Slide-Out Carry-On Cooler & Storage (In Lieu of Standard Aft Seat) O
Wet Bar w/Solid Surface Insert, Sink, Faucet, & Drawer Refrigerator (In Lieu of Aft Seat) O
Woven Cockpit Flooring O

Electrical Systems
Battery Switch, Single, On/Off S
Battery Tray S
Weatherproof Electrical System w/Individual Circuit Protection S
Transom Tilt Switch S
Engine Compartment
Automatic Bilge Pump S
Bilge Blower S
Engine Hatch, Electrically Actuated S
Fire Port S
Forced Air Ventilation w/Concealed Vents S
Gel Coated Bilge & Engine Compartment S
Dual Battery Switch with Additional Battery Tray O
Battery Charger with Deck Plug O
Fire Extinguishing System (Domestic Only) (Standard in EU Countries) O

Fuel Systems
Double Clamped Fuel Lines S

Head
Toilet (Porta-Potti) S
Vanity w/Solid Surface Top, Sink & Pullout Sprayer S
Flooring, Synthetic Wood S
Toilet, Pump-out Deck Fitting O
Electric Head System w/Holding Tank O

Helm
Compass S
Depth Sounder w/Shallow Water Alarm S
Digital GPS Speedometer S
Instrumentation w/Fog Resistant Gauges & Low Glare Night Lighting S
MP3 Adapter S
Outlet, 12 V USB S
Steering Wheel, Black w/Silver Insert S
Steering, Power Assisted S
Steering, Tilt S
Switches, Lighted Weatherproof S
Active Trim (Mercury Only) O
Digital Helm Display, Medallion (Includes Compass, Depthsounder and GPS Functions) O
GPS/Chartplotter/Sonar, w/Transducer (Raymarine A67) (Required w/Volvo Forward Drive Option Except MX6 Surf Package) O

Hull & Deck
Air Assist Chine S
Barrier Coat, Vinylester S
Boarding Ladder, Telescoping & Recessed, Bow S
Bow & Stern Eyes, Stainless Steel, w/SS Backing Plate S
Bow Hand Rails, Stainless Steel S
Bow Plate, Stainless Steel S
Cleats, Pull-up, Stainless Steel (6) S
Colored Hull & Deck Stripe S
Cooler Molded In, Bow S
Custom Hull Side Graphics S
Door, Walk-Thru at Helm S
Door, Walk-Thru at Transom S
Drain Plug, Brass Garboard S
Horn, Electric Flush Mount S
Lifetime Limited Hull Warranty S
Lights, Docking S
Lights, Navigation, LED S
NMMA Certified S
Rub Rail, Heavy Duty w/Stainless Steel Insert S
Ski Tow, Stainless Steel S
Storage, Anchor w/Fiberglass Hatch (Drains Overboard) S
Storage, Transom Wakeboard w/Gas Assisted Hatch & Dry Deck S
Swim Ladder, Telescoping & Recessed, Stern w/Fiberglass Hatch S
Swim Platform, Integral S
Thru Hulls, Stainless Steel Above Waterline S
Transhield Cover S
Windshield, Curved Tempered w/Walk-Thru, Onyx Framed S
Anchor Windlass Pre-Wire O
Anchor Windlass w/Anchor Rope & Chain (Requires Dual Battery) O
Colored Hull Bottom (Other Than Arctic Ice) O
Phender Pro Holders (4) O
Platform Grill, Portable (Propane) (Domestic Only) O
Portlight, Stainless Steel with Screen O
Removable Ski Tow Pylon O
Swim Platform Inlay (SeaDek) O
Underwater LED Lights O
Wakeboard Tower, Black or White (Includes Wakeboard Bimini) O

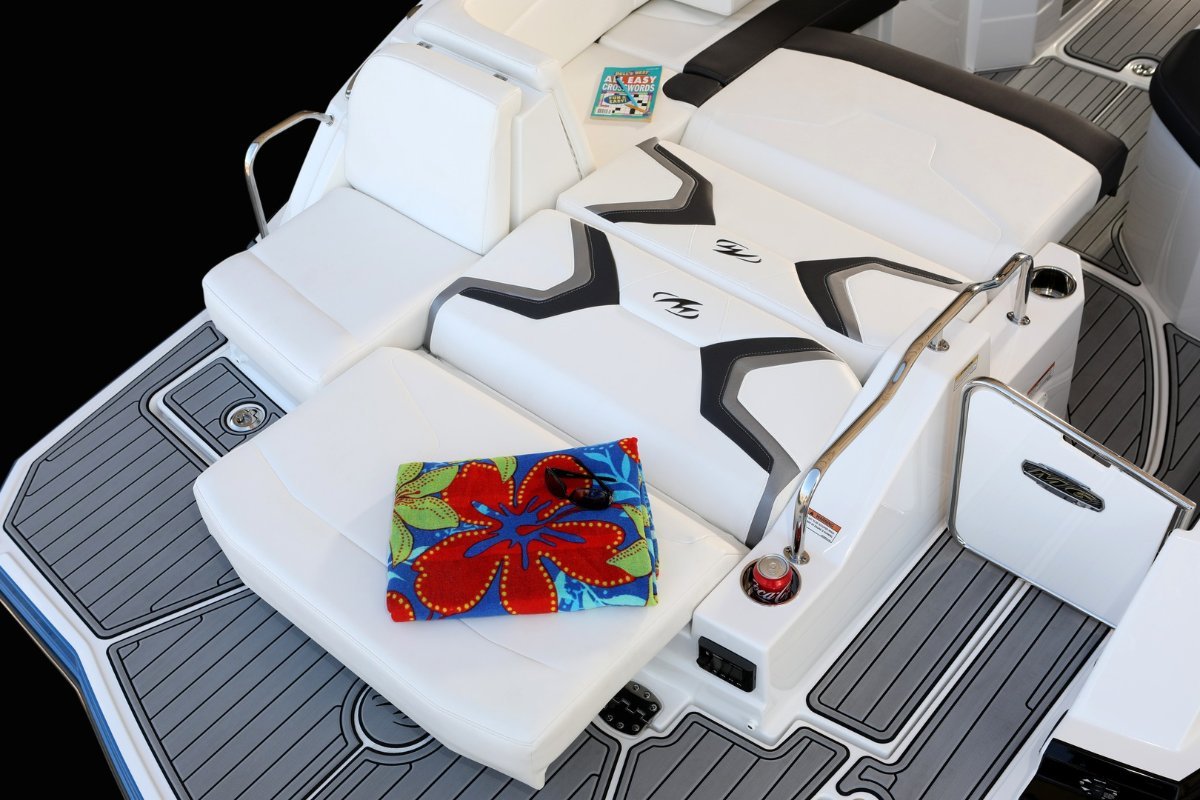

Seating
Aft Back To Back L-Lounge w/ Fiberglass Bases & Sun Pad Conversion w/Recliner Electrically Actuated S
Aft Facing Seat, Starboard W/Carry-on Slide-Out Cooler S
Aft Transom Seating S
Bow Seating w/Fold Down Arm Rest S
Bucket Seat, Swivel w/Slider & Flip-Up Bolster, Port & Starboard S
Seat Cushions w/Storage Compartments, Bow S
Filler Cushion, Bow O
Portside Forward/Aft Facing Lounger O

Under Water Gear
Trim Tabs w/Indicators O
Super Surf Trim Tabs (Requires Forward Drive Engine Option) O

Waste Systems
Grey Water System for Porta Potti (N/A With Macerator) O
Macerator w/Overboard Discharge (requires Electric Head Option) O
Grey Water System For Electric Head (N/A With Macerator)

Beam 8' 6" 2.59M Width of hull at widest section including rubrail
Bridge Clearance W/Tower 8' 2.4M Height from water to highest point on tower, normal load
Deadrise 20° 20° Angle of keel measured at transom
Draft - Stern Drive Down 36" 91.4CM Depth of hull to bottom of stern drive, trimmed down
Draft - Stern Drive Up 22" 55.9CM Depth of hull to lowest point, stern drive trimmed up
Dry Weight 5,200LBS 2,359KG Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Fuel Capacity 80GAL 302.8L Capacity of fuel tank in gallons/liters
LOA W/Swim Platform 25' 10" 7.87M Length Overall, including add-on swim platform, not including bow rail or anchor roller
Max Persons Weight 2475LBS 975KG Maximum capacity of people that can be safely carried in pounds/kilograms
Max Persons/Gear Weight 2715LBS 1030KG Maximum capacity of people and gear that can be safely carried in pounds/kilograms
Max Power 430HP 321KW Maximum horsepower for safe operation
Waste Capacity 11GAL 41.6L Capacity of waste tank in gallons/liters
Water Capacity 15GAL 56.8L Capacity of water tank in gallons/liters
