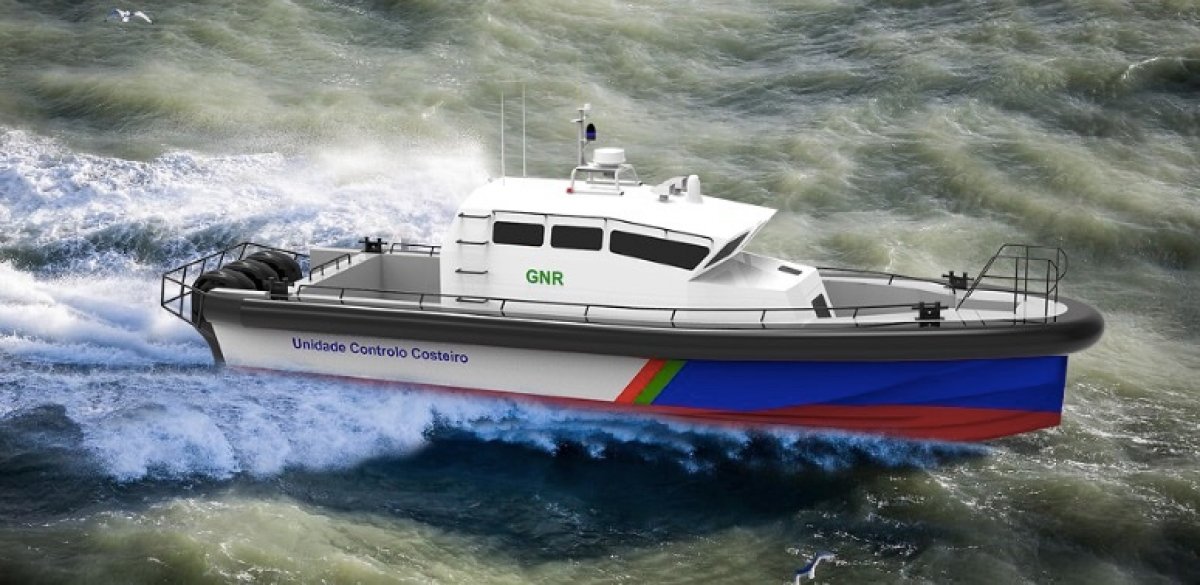

NEW 13.2m Fast Patrol Boat

Principal particulars:
o Waterline Length: 12.0 m
o BOA: 4.0 m
o Hull Beam: 3.4 m
o Chine Beam: Approx. 3.2 m
o Depth(at hull side of midship): Approx. 1.8 m
o Freeboard(at bow in static condition): Approx. 1.45 m
o Freeboard(at bow in dynamic condition): Approx. 1.65 m
o Deadrise(Transom): 28 deg.
o Deadrise(Forward entry): 55-65 deg. Subject to the level of speeds
Range: No less than 190 NM at cruising speed
1.2 Design and Attributes
i. Vessel Layout:
The vessel is laid out with the hull to include one reinforced anti-collision fore peak tank, one void tank with watertight access hatch for stowage of manual operated anchor and its dedicated nylon rope, one fresh water tank compartment with one small cabin above the flooring of same watertight compartment, one fuel tank compartment and one void space for stowage of service items while the deckhouse is laid out with one large fully closed, air-conditioned deckhouse as per shown in the GA drawings.

Taking in mind for intention of stable, efficient and long voyage navigation in the special adverse conditions of tropical Western Pacific Seas to cater tough mission in coastal water, the vessel is specially laid out with best available ergonomics for improved comfort, better sustained duty-efficiency and capability, highlighted as follows:
1) The console station is separated into helmsman control station and crew controlstation to get the functional areas exclusively focused to simplify boat handling and communicating work while the fore windows are designed to be forward facing so as to effectively and efficiently stop the burning sun from shining directly onto the dashboard to secure easy and precision data obtaining from the instruments;.
2) The deck is designed with 360 degree of walk around the whole deckhouse, featuring wide side decks and raised deck bulwarks together with grab rails for unrivalled crew maneuvering safety in all handling conditions;
3) The collar is designed to be heavy-duty, over-sized EVA foam coated with 4mm elastomeric polyurethane, and is to be bonded to the specially moulded D-shaped/half-round installation channel at the gunwale, thus achieving best safety and durability to ensure the highest level of protection to the hull against strong, frequent impact by other vessel in boarding/disembarking;
ii. Hull Form
The hull is well proven and will be variable deadrise deep V high performance planing in form, incorporating a fine forward entry, two well immersed and full-length outer tunnels(also called revised reverse chine), extended waterline length, wide chine beam, high freeboard, flared bow above waterline, slightly curved down buttock lines from stern transom till 3/4 of waterline length, down angled and wide chine flats on bottom sides of the mid hull body, giving a softer ride and safer handling with superior stability in all sea conditions, providing high speed maintained in waves while also having capability to self correct when running in following seas.
iii. Seakeeping Ability:
iii. I Seakeeping Ability in Head Seas
Seakeeping ability in head seas for any planing hull is dependent on trim angle and deadrise of the V-shaped hull bottom that encounters the wave. In our design, we have given strict control on longitudinal center of buoyancy(Lcb) and Longitudinal center of
gravity(Lcg) so that there will be no big change to distance between Lcb and Lcg no matter at displacement speeds or fully planing speeds, making the vessel ride with extremely low trim at the bow, thus the vessel will be able to run much flatter with the forward fine entry formed by approx. 65 deg. Of high deadrise to be always in best effective contact with water to efficiently cut through head seas, ensuring truly soft, smooth, high speed and comfortable riding quality with no significant hull slamming even in high waves.
iv Seakeeping Ability in Following Seas, Side/Quartering Waves
Seakeeping ability of a planing hull in following seas, side/quartering waves is dependent on dynamic stability of the vessel. No matter what type of boat it is, the dynamic stability of the vessel will be subject to the capability of the underwater hull configuration in gripping/locking water so that the tracking course cannot be easily affected by outside factors/forces generated by following seas and side/quartering waves. In order to achieve superior dynamic stability for top quality in safety against steep following seas and side/breaking waves, below trade-offs have been made in the hull form design:
