NEW 15.90m Passenger Catamaran


Price
US $334,000 Available to order
Currency
Length
52' 2" - 15.90m
Vessel Location
India
Model Year
New
Hull Material
Fibreglass/GRP

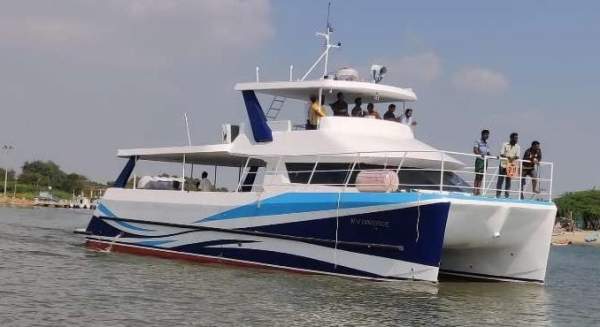

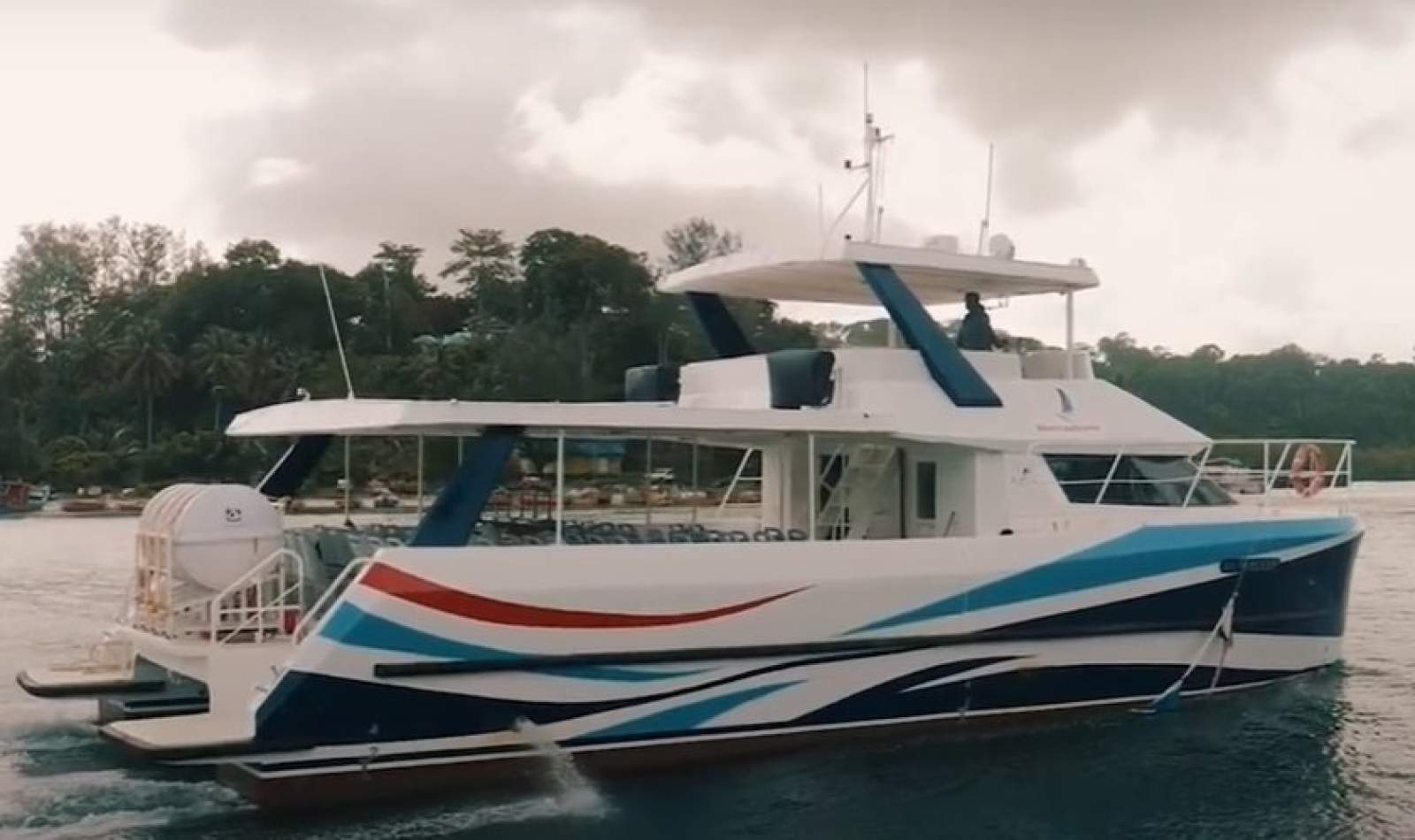

This 15m passenger catamaran is FRP construction and has a mixture of internal and external seating and is ideal as a day tourist vessel or ferry. Passengers: 50 Crew: 4. Main Engines: 2 x Yanmar 6MP. 140Hp, 2200RPM. Maximum Speed: 12 knots. Cruising Speed: 8 knots.

SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.


Price
US $334,000 Available to order
Boat Reference
5326
Model Year
New
Length
52' 2" - 15.90m
Beam
6.00m (19ft 8.2in)
Draft
0.85m (2ft 9.4in)
Displacement
Tonnes
Vessel Location
India
Region
Asia
Use
Leisure, Commercial
Hull Material
Fibreglass/GRP
Engine
Main Engines: 2 x Yanmar 6MP 140Hp, 2200RPM Gear Box: DONG-I Model DMT90A Ratio 2.06:1 Sullage: 1x 500L Tanks Fuel tank - Made out of Marine grade aluminium with IRS approved certificate. water tank + pump Sewage tank pump
Engine Make
Yanmar
Number Engines
2
Horsepower
140 hp
Max Speed
12 knots
Cruise Speed
8 knots
Genset
2X 12Kva
Fuel
2 x 500L
Water
2x 300L
Accommodation
Passengers: 50
Crew: 4
Seats with UV Resistant Cushion.
Ground Tackle
Anchor - SHHP anchor with 50 kg
Winch - with required motor winch will be fixed on deck to operate the Anchor load.
Rope/ Chain - combined of 2-meter chain with 30-meter rope will be provided for anchor.
Mooring Ropes and Towing Ropes will be provided as per drawing
Bollard - 4 nos of aluminium Bollard fixed.
Rub rail - 100 mm rubber rub rail fixed all the way of hull on both sides will be fixed through SS bolts and nuts.
Safety Gear
Fire Fitting equipment:
Fire extinguisher (powder 5kg DCP type) - qty 6 nos Type approval.
Fire Alarm
Fire hydrant 32NB
Fire hose 32NB, 60 ft long hose with nozzle spray jet - 1 set
Sand Scoop ( 0.075 Cum )
Buckets (2 with LANYARD) - 2 nos

Lifesaving Appliances:
Life buoy(2nos)
Rope S. I light
Life Raft
25-person capacity will be fixed fore deck part
Flares
55 adult life jacket and 6 child life jacket
Electrics
5 x CCTV Install
Wiring Cables- all IACS approved cable will be fixed for electrical wiring
Panel board - IACS type approved panel fixed.
Lights - LED lights fixed on top of deck inside and hull and wherever necessary.
Battery - 4 Nos of 200 AH capacity Litium battery will be attached.
Sockets / Switches
Electrical Toilet fittings / 2nos
Piping / Pump as approved drawing.
Auxiliary
Electronics / Navigation
VHF
GPS
Compass & Binocular
Radar, Echo sounds
Rudder angle indication
Navigations Search light
SART & AIS type B
Deck Gear
Canopy structure:
Canopy Structure Is Made Out Of FRP Composites With SS Piping Support.
Remarks
Breadth Of Each Hull: 1.8m
Depth: 2.90m
Able to afford up to 2.5 Mtr wave height.

PAINTING
Hull outside, below waterline
2 coats : Primer: 150 microns DFT
1 coat : Sealer Coat: 100 microns DFT
2 coats : Antifouling: 100 microns DFT
SUPER STRUCTURE OUTSIDE
2 coats : Epoxy Primer: 150 microns DFT
2 coats : TOPCOAT: 85 microns DFT
