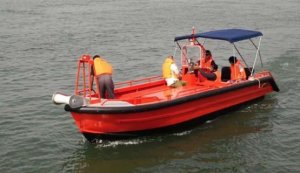

NEW Five AB&E Centurion 24 - NEW BUILD Aluminium Workboat
Length
24' 5" - 7.43m
Vessel Location
Singapore
Model Year
2019
Hull Material
Aluminium Alloy (5083H321)
The Centurion 24 Workboat is a wide body workboat to provide generous working space in a small workboat. The hull is designed for stability for crew during working. This hull is constructed with multiple chambers underneath and foam filled. This boat is capable for carrying 10 crews. It can be powered by single or twin petrol or diesel outboard motors.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Boat Reference
1412
Model Year
2019
Length
24' 5" - 7.43m
Beam
2.34m (7ft 8in)
Draft
0.25m (9in)
Displacement
Tonnes
Vessel Location
Singapore
Region
Asia
Use
Commercial
Hull Material
Aluminium Alloy (5083H321)
Engine
D36 Diesel Outboard Motors
Engine Room
Description Quantity
Twin YANMAR D36 Diesel Outboard Motors with Remote Control (Reconditioned) 2
Outboard Motors Propeller Guard 2
Battery On-Off Switch 1
Fuel Emergency Shut Off Cock with Fuel Hose 1
12VDC Bilge Pump with Automatic Float Switch
Engine Make
Yanmar
Number Engines
2
Fuel Type
Diesel
Fuel
Built-in 200 litre Fuel Tank
Electronics / Navigation
Navigation Lights (All round white combination of Port and Starboard Light, Mast Light) 1
12V Electric Horn 1
12V Maintenance Free Lead Acid Battery with Plastic Battery Box 2
12V Electric Horn 1
12V Maintenance Free Lead Acid Battery with Plastic Battery Box 2
Remarks
Principal Dimension
Depth: 0.9m
Draft: Approx. 0.25m unladen
Hull Weight: 1000kg without engines
Payload: More than 2 Tons
Hull bottom thickness: 4mm
Hull side thickness: 4mm
Deck: Aluminium Alloy Checker Plate (Thickness:4mm)
Class Type: Not build to Class Survey
General Design
1. Hull Structure: Marine Grade Aluminium Alloy, Multiple Transverse & Longitudinal Frame Reinforcement Structures; Multiple Chambers filled with Unsinkable Foam; Reinforced keel and chines; Reinforced side bar on hull sides
2. Hull Coating: PU Paint to Owner's Choice
3. Cockpit Floor: Aluminium Alloy Checker Plate
Standard Configuration
Description Quantity
Steering Console with Hydraulic Steering System 1
Forward Bow Platform with Step 1
Aluminium Grab Rails Set (1 1/4" Diameter) 1
Heavy Duty 6" Width Rubber D Fender 1
Coxwain Seat (removable aluminium frame) 1
Welded Alloy Cleats and Lifting Rings Pad Eyes 4
Self-draining Holes 2
Anchor Storage under Bow Platform 1
Built-in Aluminium Fuel Tank (200 Litres)
Accessories Fitted & Supplied
Description Quantity
6-way Toggle Type Gang Switches (12 VDC) at the Driving Console 1
Fuel Meter 1
Depth: 0.9m
Draft: Approx. 0.25m unladen
Hull Weight: 1000kg without engines
Payload: More than 2 Tons
Hull bottom thickness: 4mm
Hull side thickness: 4mm
Deck: Aluminium Alloy Checker Plate (Thickness:4mm)
Class Type: Not build to Class Survey
General Design
1. Hull Structure: Marine Grade Aluminium Alloy, Multiple Transverse & Longitudinal Frame Reinforcement Structures; Multiple Chambers filled with Unsinkable Foam; Reinforced keel and chines; Reinforced side bar on hull sides
2. Hull Coating: PU Paint to Owner's Choice
3. Cockpit Floor: Aluminium Alloy Checker Plate
Standard Configuration
Description Quantity
Steering Console with Hydraulic Steering System 1
Forward Bow Platform with Step 1
Aluminium Grab Rails Set (1 1/4" Diameter) 1
Heavy Duty 6" Width Rubber D Fender 1
Coxwain Seat (removable aluminium frame) 1
Welded Alloy Cleats and Lifting Rings Pad Eyes 4
Self-draining Holes 2
Anchor Storage under Bow Platform 1
Built-in Aluminium Fuel Tank (200 Litres)
Accessories Fitted & Supplied
Description Quantity
6-way Toggle Type Gang Switches (12 VDC) at the Driving Console 1
Fuel Meter 1
