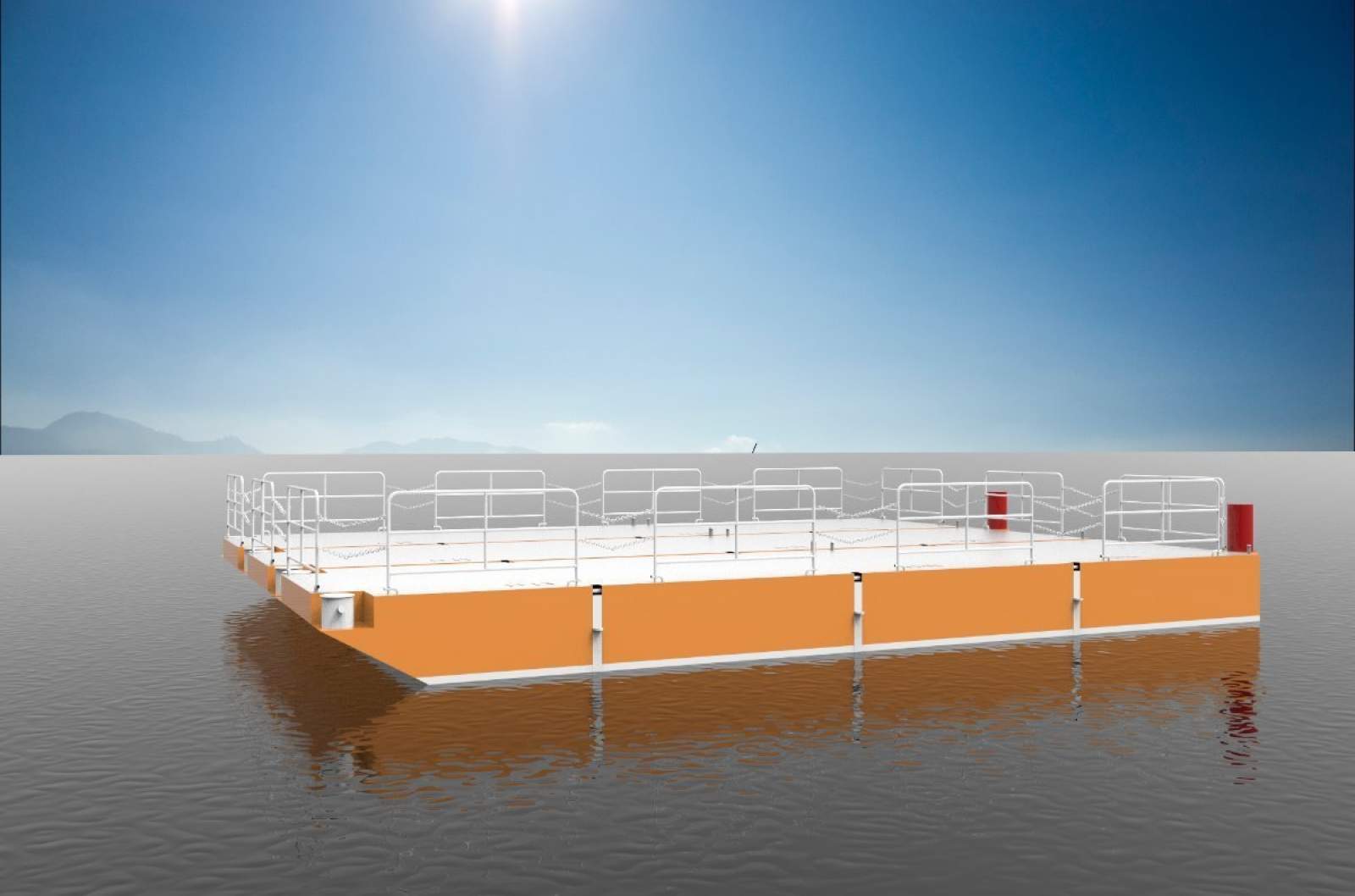

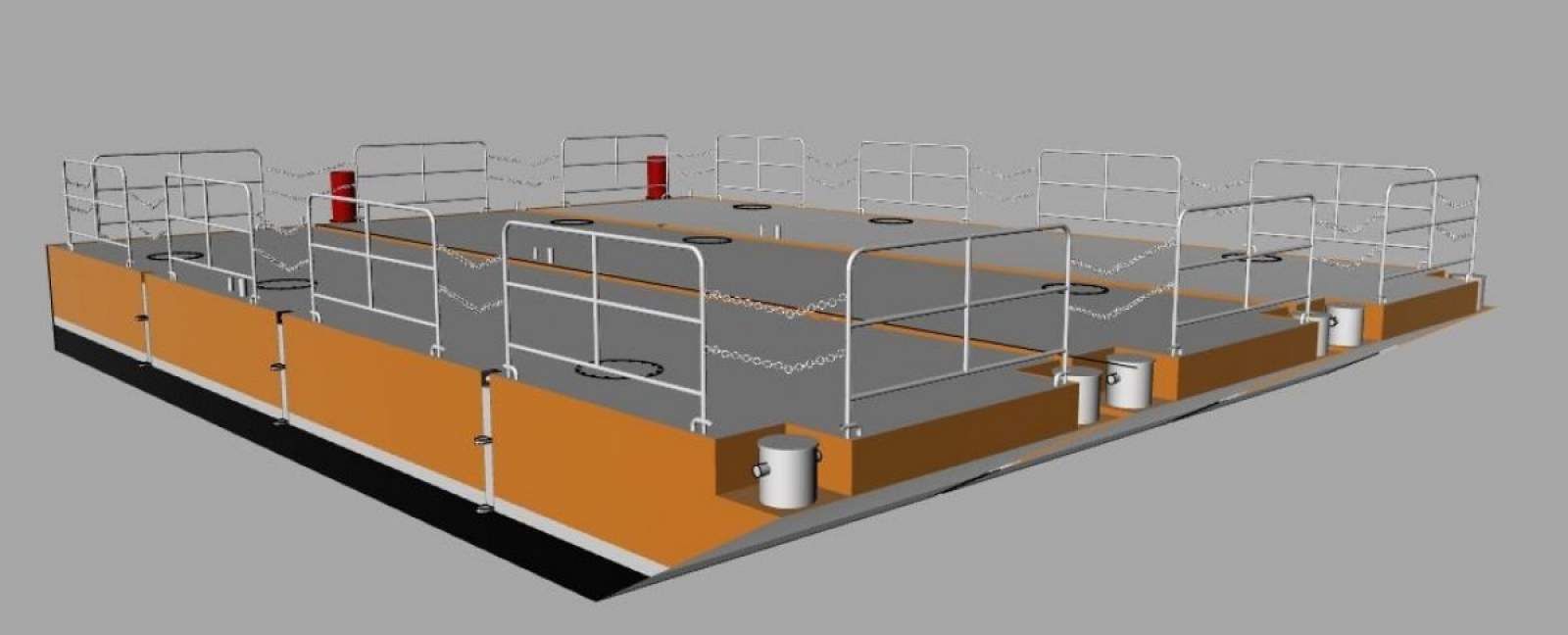

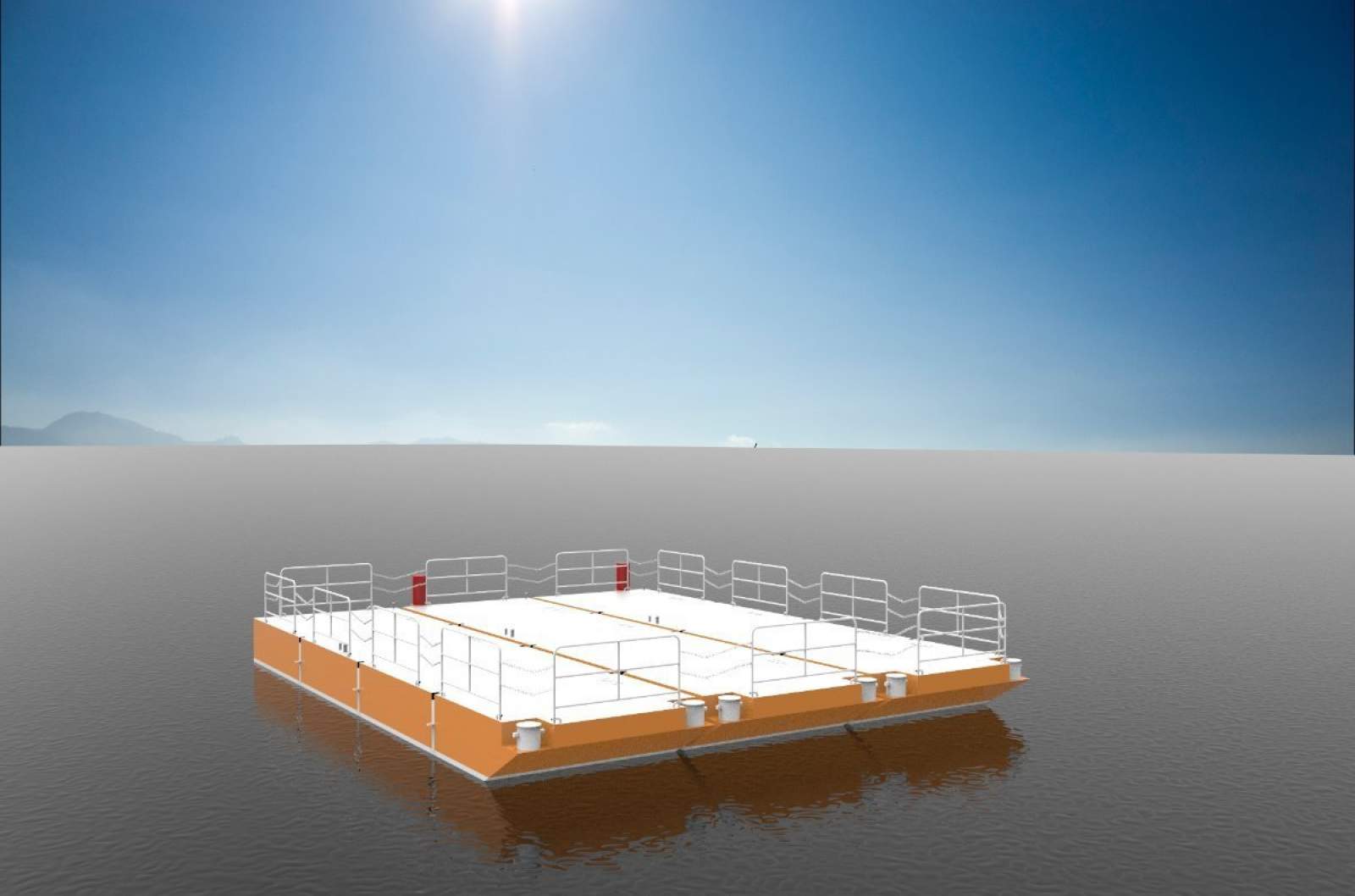

NEW Stalwart Marine Road Transportable Deck Barge Construction Dumb Barge Steel

This is a heavy duty Steel sectional deck barge that can be transported by road

A simple pin system for connection allows this to be assembled quickly on site

Price shown is for 1 x section measuring 12.00 x 3.00 x 1.20 meters

Spud Jackets and 2 x 12.00 spuds are available, se below for pricing

SPECIFICATIONS - Steel Construction Barge - Truckable
Survey: AMSA 2D
LOA: 12.00 meters
WOA: 3.10 meters
Moulded Height: 1.20 meters
Material: MS Plate Grade 250
Deck Plate: 8mm
Side Plate: 6mm
Bottom Plate: 6mm
Swim End: Included
Paint: Included
Lifting Points: 4
Weight per section 3 x 12 x 1.2: 16,000kg (estimate)

Additional
Safety Fence: $8,000 + GST
Bollards x 4 pieces: $2,000 + GST
Boarding ladders x 2 pieces: $800 +GST
Spuds Pipe (Steel) x 2 @ 12.00 meters OD323.90mm/ WT12.70mm: $8,600
Spud chute x 2: $17,800
Spud cradles x 2: $6,500

Specifications Rubber Strip 20mm
Length: 2.00 meters
Width: 800mm
Thickness: 20mm
EP200 Layers: 6
Quantity: 12 pieces
Strength: 24mpa
Price: $5,630 + GST

Notes
1. Price shown is ex yard Brisbane
2. Survey AMSA DCV with approved plans and built to plan inspections done at our cost
3. Construction allow 2 months from confirmation of order
4. Payment Terms
60% Due on order
20% Due on arrival of plate material to factory
10% Due on practical completion of hot works
10% Due prior to dispatch from factory

Visit our website for more information: Dealer Website /

Aluminium Boating Specialists!
We truly are a one stop shop for all your vessel design, certification and manufacturing needs. With our inhouse naval architects, AMSA approved surveyor, CE certified products and precision CNC, contact us today to discuss your next boating adventure!!
