NEW Stalwart Marine WB5900 Aluminium Work Boat Punt

Stalwart Marine WB5900 Work Boat Punt
- The price shown of AUD48,350 is for boat only with Standard Features, as below
- These are Commercial Vessels and GST is not included and must be added
- The images shown are as a fully optioned vessel
- See the Customisation Options below for pricing and view these options in the images provided to "build up your boat"
- Price is Ex yard Brisbane/Sydney/Perth/Melbourne
- Don't get sucked in with cheap copies of our WB series punts, look at our Standard Features and then look at the cheap copies:
no wiring, no navigation lights, no built in fuel tank, no bilge pumps, no anchor well, no fuel shut off valve, no boarding ladder, no
flotation foam and the list goes on and on

WB5900: Standard Features
Construction Material: 4/5mm Marine Grade 5083 H116 Aluminium
Length OA: 5.90 meters
Width OA: 2.30 meters
Height OA: 0.75 meters
Forward section fitted with Knee Bars
Side Pockets full length
Floor plate fully "slot welded" anchored with 150x50 RHS floor frame system
Flotation filled floor
Boarding ladder
120lt aluminium fuel tank fitted into transom, behind seat
Storage Toolbox fitted into transom, behind seat
Forward bow storage compartments with hatch covers
Storage Compartment with seating forward
Covered anchor well
Bench Seat with drivers seat as fold down
High amperage isolator switch
Fully Wired with marine grade tin plated copper wiring
Fuse Panels
Fuel Management panel with isolators
Bilge Pumps(covered) x 2: 1 x 2000GPH Manual and 1 x 1200GPH Auto
Standard Navigation Lights
Floor is aluminium plate coated with non-slip rubber membrane
AMSA Form 579 2D - CE approved 2E

Overview
With the launch of our WB Series Punts into the USA, our range is now better than ever. The WB's are now available in 3 variations, WB5900, WB7400 and WB7400X. These are the best built work punts in the market of Australia and USA

In fact, everything about our work boats are truly Heavy Duty: Bollards, Toe Holds, Grab Rails, Boarding Ladder, Covers for the Bilge Pumps, Fuel Tank, Lifting Lugs, Console and we are always looking to improve

The rear area behind the seat is now bunded 100mm to allow for any water, fuel spills to concentrate within the bunded area for removal by the built in bilge pumps or with fuel spills, removed by hand

The paint is Marine Grade PU inside is White and the outside colour is your choice

These are Production Boats with stock normally always ready in the factory, on the water or in Australian holding yard Brisbane

Certification
These boats are plan approved to AMSA Domestic Commercial Vessel
Stalwart Marine is also the first company to have available in Australia "CE Approval" Module B Category D. They can be used as work boats under Self Declaration Form 579 with AMSA, no survey inspection required, less headaches with inspections and costly Surveyors fees

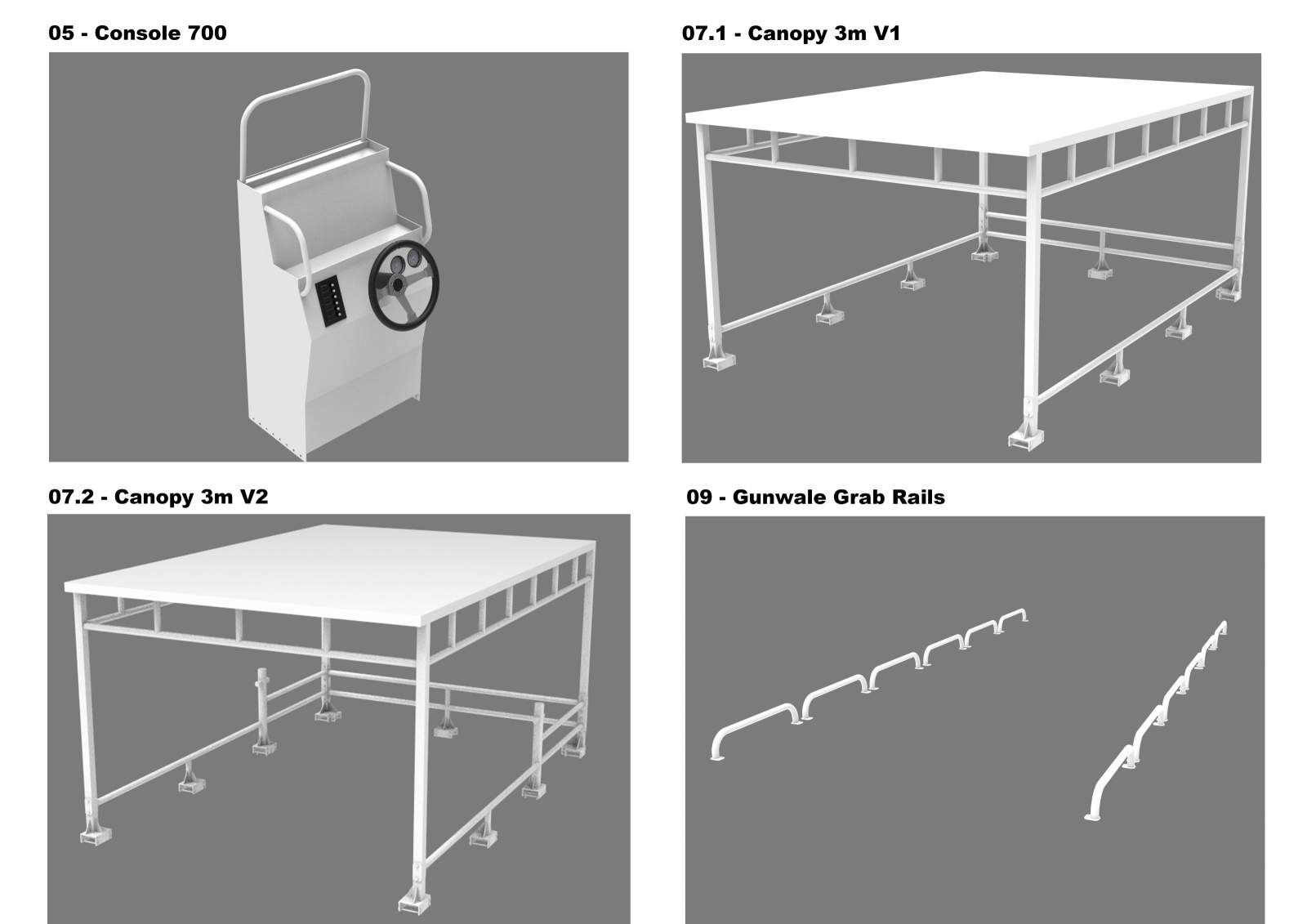

Customisation Options
Options include, but not limited to:
1.$1,480 - Side fenders standard 50mm polypipe
2.$5,800 - Side fenders flotation for high payloads
3.$480 - Side Seating - each
4.$1,470 - Console 600mm
5.$1,860 - Console 700mm
6.$3,600 - Overhead Canopy 2.0m
7.$4,200 - Overhead Canopy 3.0m
8.$4,800 - Overhead Canopy 4.0m
9.$1,230 - Gunwale grab rails (both sides)(retrofit)
10.$1,870 - Safety rails front deck
11.$480 - Cable steering
12.$1,890 - Hydraulic steering
13.$480 - Stainless Steel tie bar
14.$380 - High-pressure deck wash & hose
15.$650 - Lifting lugs x 4(load rated)
16.$4,700 - EVA Package - main deck, front deck, rear seat, forward seat
17.$1,300 - Anti-Foul bottom
18.$120 - Bollard T
19.$640 - Stern Spuds
20.$1,880 - Engine Guard

Engine Packages
Available with Yamaha, Suzuki, or Mercury outboards - matched to your application
Call and discuss your needs
FYI - The most common set-up is with twin 60hp

Aluminium Trailer (Built to AS4177.3-2003-ADR-VSB1-Rev 6)
- Main Frame: Aluminium C section
- Cross Members: Aluminium RHS100x50
- Drawbar HDG Steel RHS
- Axles: 2 x HDG RHS Steel 2 tonne rating each
- Suspension: Torsion Bar
- Brakes: Disc Dacromet Kodiak 250mm
- Actuator: Surge with Breakaway
Price - $18,850

For any further information, please email:
Email Seller
Email Seller

Or text us through:
Nis: Call Seller
Steve: Call Seller or Call Seller

Visit our website for more information: Dealer Website /

Aluminium Boating Specialists!
We truly are a one stop shop for all your vessel design, certification and manufacturing needs. With our inhouse naval architects, AMSA approved surveyor, CE certified products and precision CNC, contact us today to discuss your next boating adventure!!
