NEW Stalwart Marine WB7400 Plate Ally Workboat Punt

WB7400
Stalwart Marine WB7400 Work Boat Punt
- The price shown of AUD62,500 is for boat only with Standard Features, as below
- These are Commercial Vessels and GST is not included and must be added
- The images shown are as a fully optioned vessel
- See the Customisation Options below for pricing and view these options in the images provided to "build up your boat"
- Price is Ex yard Brisbane/Sydney/Perth/Melbourne
- Don't get sucked in with cheap copies of our WB series punts, look at our "Standard Features" and then look at the cheap copies: no wiring, no navigation lights, no built in fuel tank, no bilge pumps, no anchor well, no fuel shut off valve, no boarding ladder, no flotation foam and the list goes on and on

Overview
With the launch of our WB Series Punts into the USA, our range is now better than ever. The WB's are now available in 3 variations, WB5900, WB7400 and WB7400X. These are the best built work punts in the market of Australia and USA
The WB7400X has a huge forward deck area, that transforms the vessel into a ready made work vessel
In fact, everything about our work boats are truly Heavy Duty: Bollards, Toe Holds, Grab Rails, Boarding Ladder, Covers for the Bilge Pumps, Fuel Tank, Lifting Lugs, Console and we are always looking to improve
The rear area behind the seat is now bunded 100mm to allow for any water, fuel spills to concentrate within the bunded area for removal by the built-in bilge pumps or with fuel spills, removed by hand
The paint is Marine Grade PU inside is White and the outside colour is your choice
These are Production Boats with stock normally always ready in the factory, on the water or in Australian holding yard Brisbane

Standard package
Length: 7.40m
WOA: 2.30m
Moulded Height: 750mm
Aluminium Plate 5083-H116
Wiring (Tinned) to AS/NZS 3004.2:2014
Battery Isolator - Heavy Duty
Bilge pumps 1 x Auto 1100GPH + 1 x Manual 2000GPH
Navigation Lights - LED
Fuel Tank - 120lt
Toolbox Rear
Rear Fold-Up Seats x 2
Boarding Ladder
Non-Slip Main Deck
Non-Slip Forward Deck
Anchor Well
Engine Pod/s
Forward Bow Storage
Certification: AMSA Form 579 (2E) and CE 2D approved
Gunwale Tie Down Rail (Underside)Full Length
Deck Toe Hold: Full Length
Floor structure is double plate fully welded with 150x50 RHS longitudinal & cross bracing
Motors: Maximum 200hp (not included)
Price: $62,500

Additional Fit Out
Extended Deck - $4,580(includes EVA)
Forward Seat Toolbox - $2,600
EVA Main Deck - $2,800
EVA Forward Deck - $870
Console 600mm - $1,200

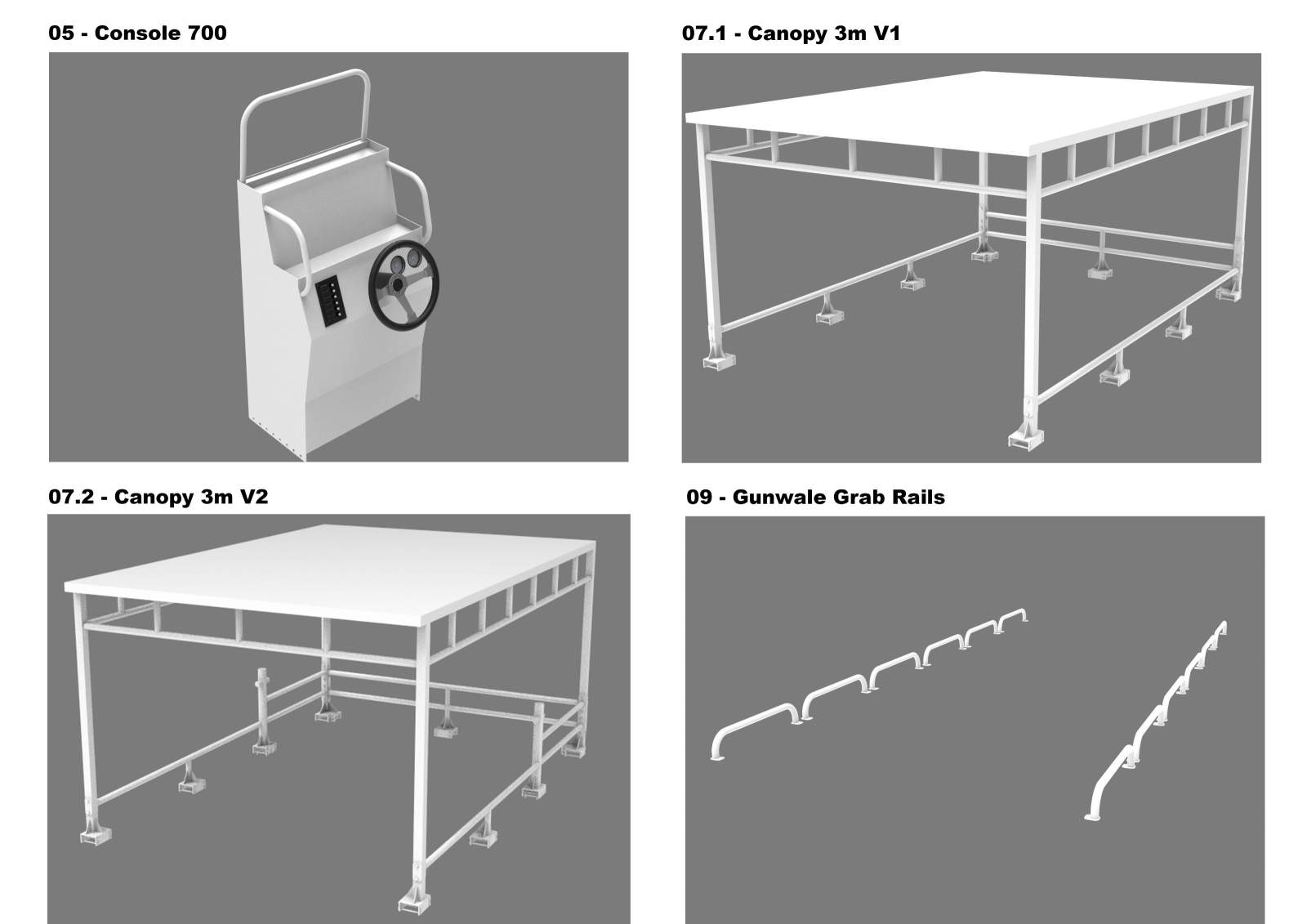

Console 700mm - $1,280
Console 800mm - $1,360

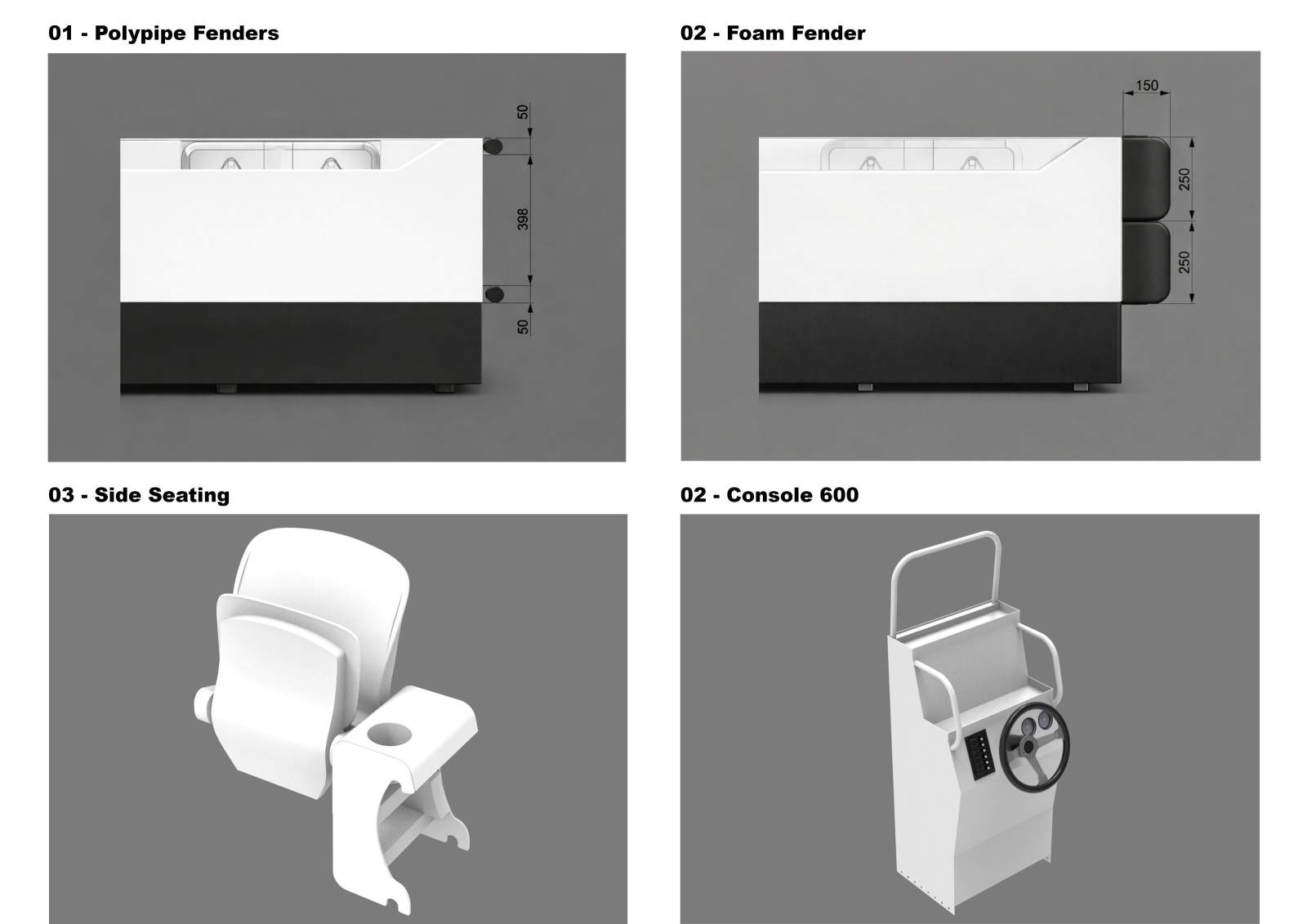

Side Fenders 50mm Polypipe (Top + Bottom) - $1,600
Side Fenders 150x100mm Poly-Urea - $3,880
Side Fenders 150x400mm Poly-Urea - $5,700(Flotation)
Enclosed Sides: $4,670 (Flotation)
Side Seating x 1 - $550 (Forward Facing)

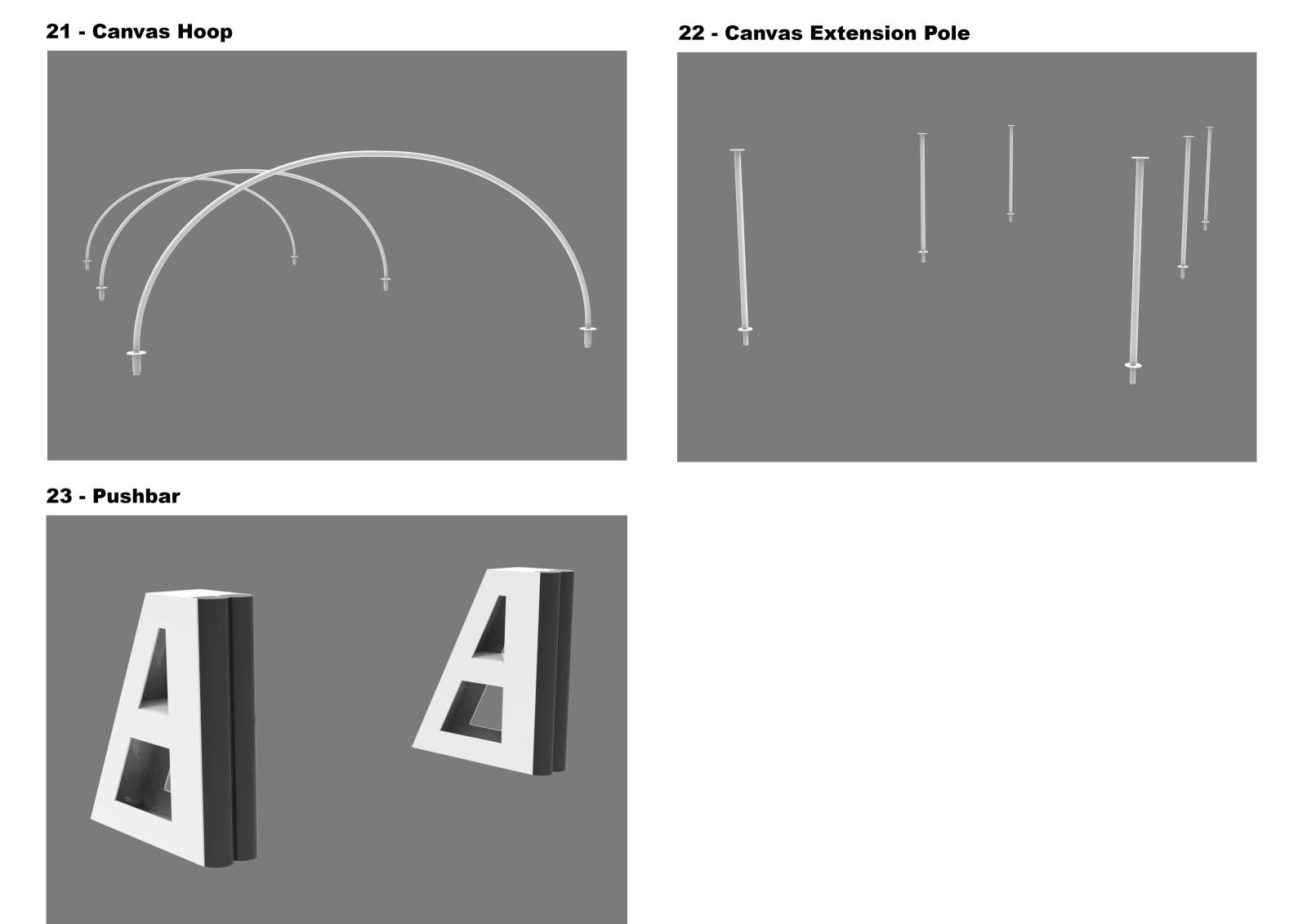

Canvas Hoop Set 25mm - $660
Canvas Cover 9.00x3.00 - $980
Tie-Off Side Rails 40mm - $1,800

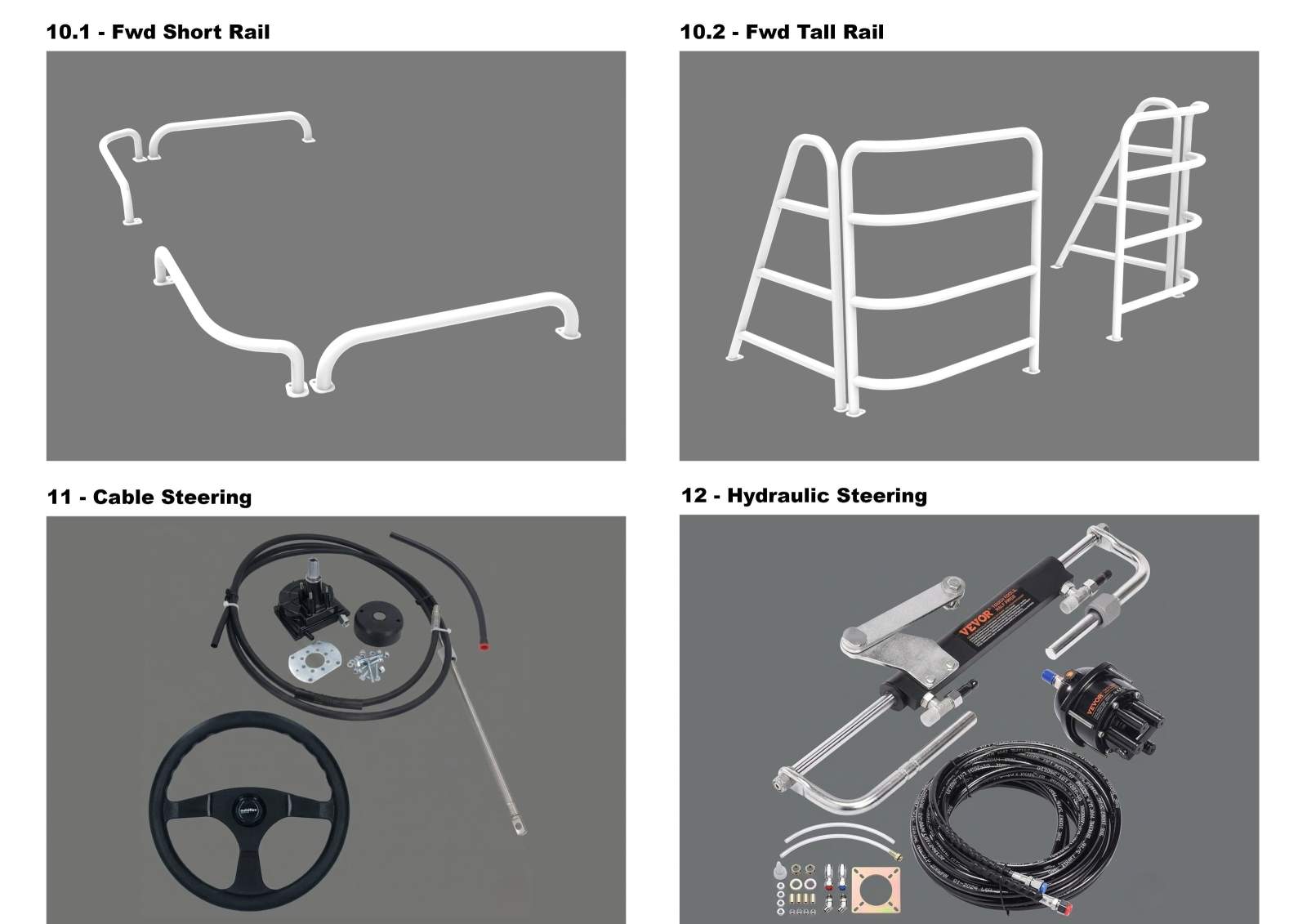

Forward Deck High Rails 40mm - $1,480

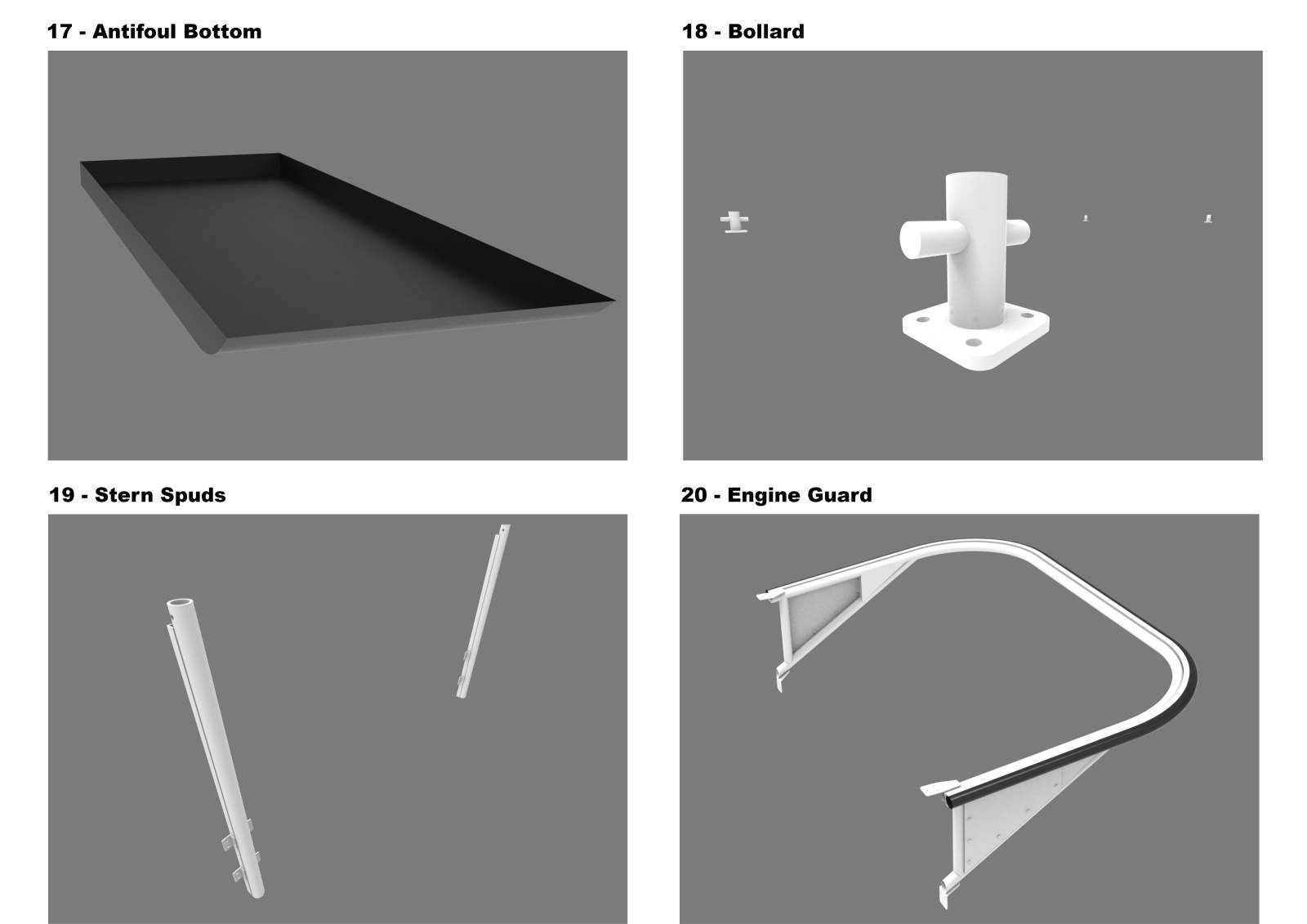

T Bollard 50+25mm $120
Canopy 2200 x 2,000 - $2,800
Canopy 2200 x 3,000 - $3,100
Canopy 2200 x 4,000 - $3,400
Canopy 2200 x 5,000 - $3,700
Engine Guard $1,450
Spuds Rear - $480
Push Bar Set - $980

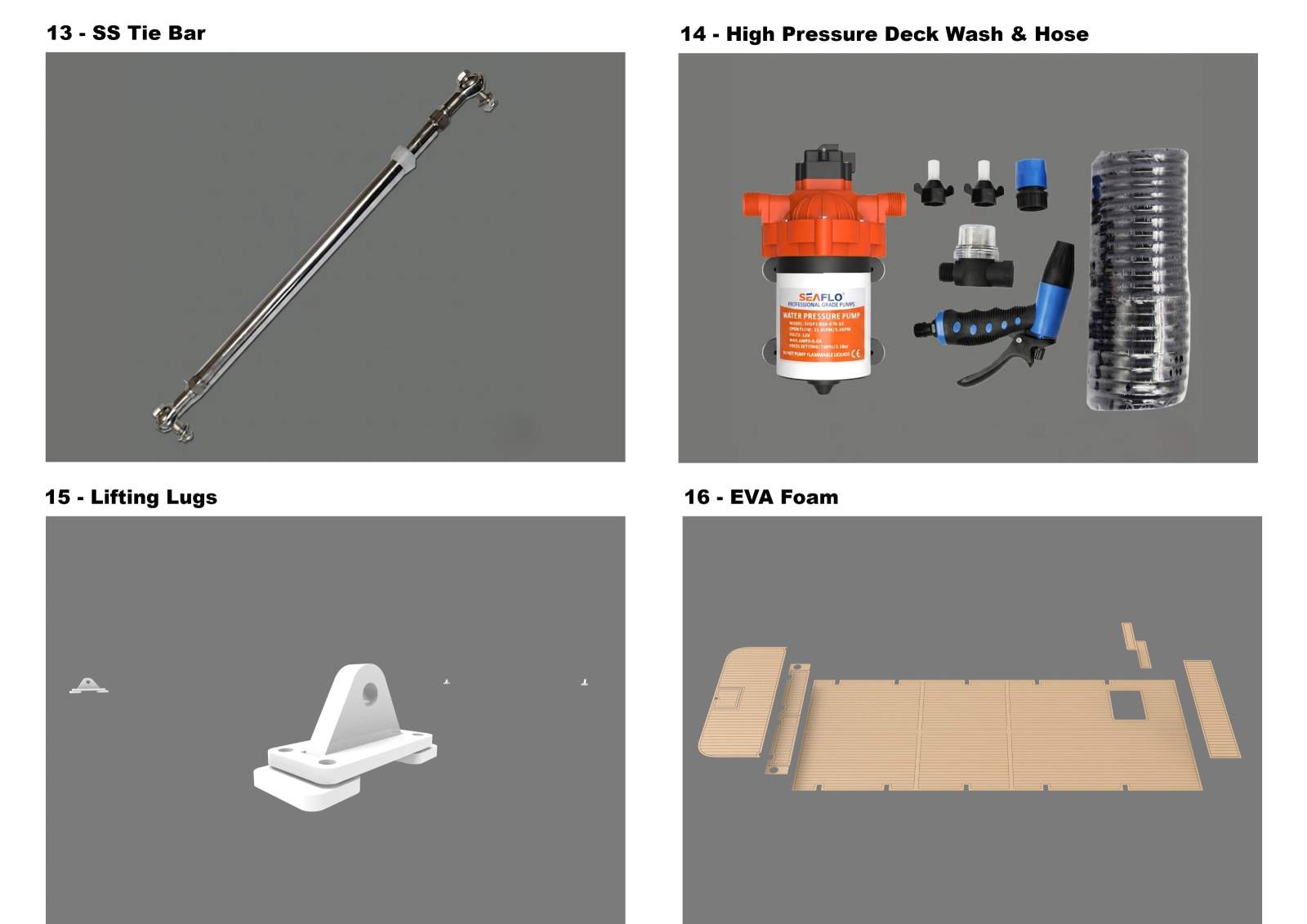

Lifting Lug Set x 4 - $660
Steering Cable - $550
Steering Hydraulic - $1,890
SS Tie Bar - $650
SS Steering Wheel - $80
Paint Internal PU - $1,800
Paint External PU - $1,300 (above waterline)
Paint Antifoul - $1,980 (below waterline)

Trailers - TWB5900 TWB7400 TWB7400X
Built to: AS4177.3-2003-ADR-VSB1-Rev 6)
Main Frame: Aluminium
Drawbar: HDG Steel
Rating: 3,400kg
Jockey Wheel: Heavy Duty 200mm 350kg rating
Coupling: Dexter 7500 with breakaway system + electric reverse solenoid
Axles: 2 x 2,000kg 75mm Square HDG/Dacromet
Suspension: Torsion Bar
Brakes: Hydraulic Discs on all wheels - with Dacromet finish
Wheels: Alloy 14 x 5
Tyres: 4 x 215-75R14
Mudguards: High Impact HDPE
Price: $18,700
