Universal Floating Drive On/Off Docks - Vessels up to 5000kgs

Universal Floating Drive On/Off Docks - Vessels up to 5000kgs
Mono & Twin Hulls - All Weather - 350kgs/m2 Payload

Drive On/Off Docks - Sold per m2

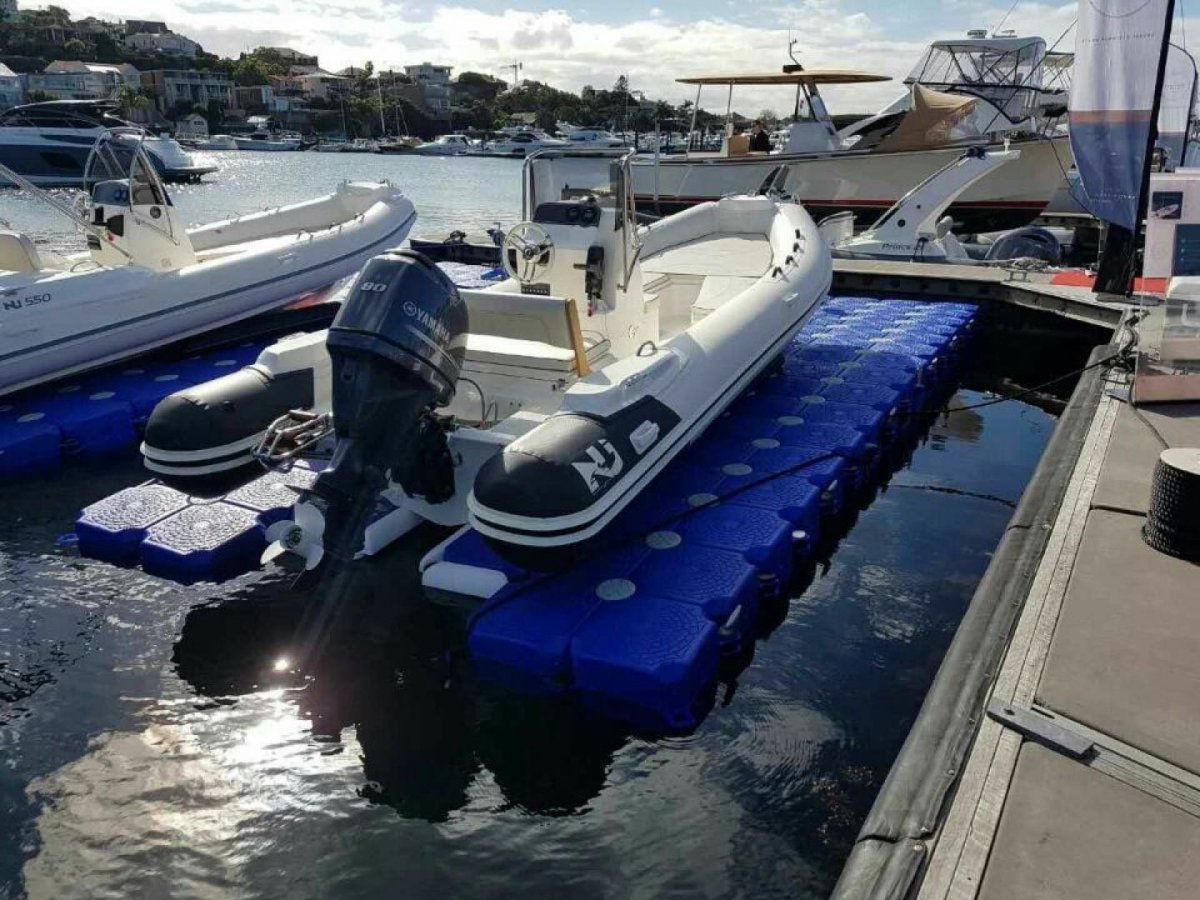

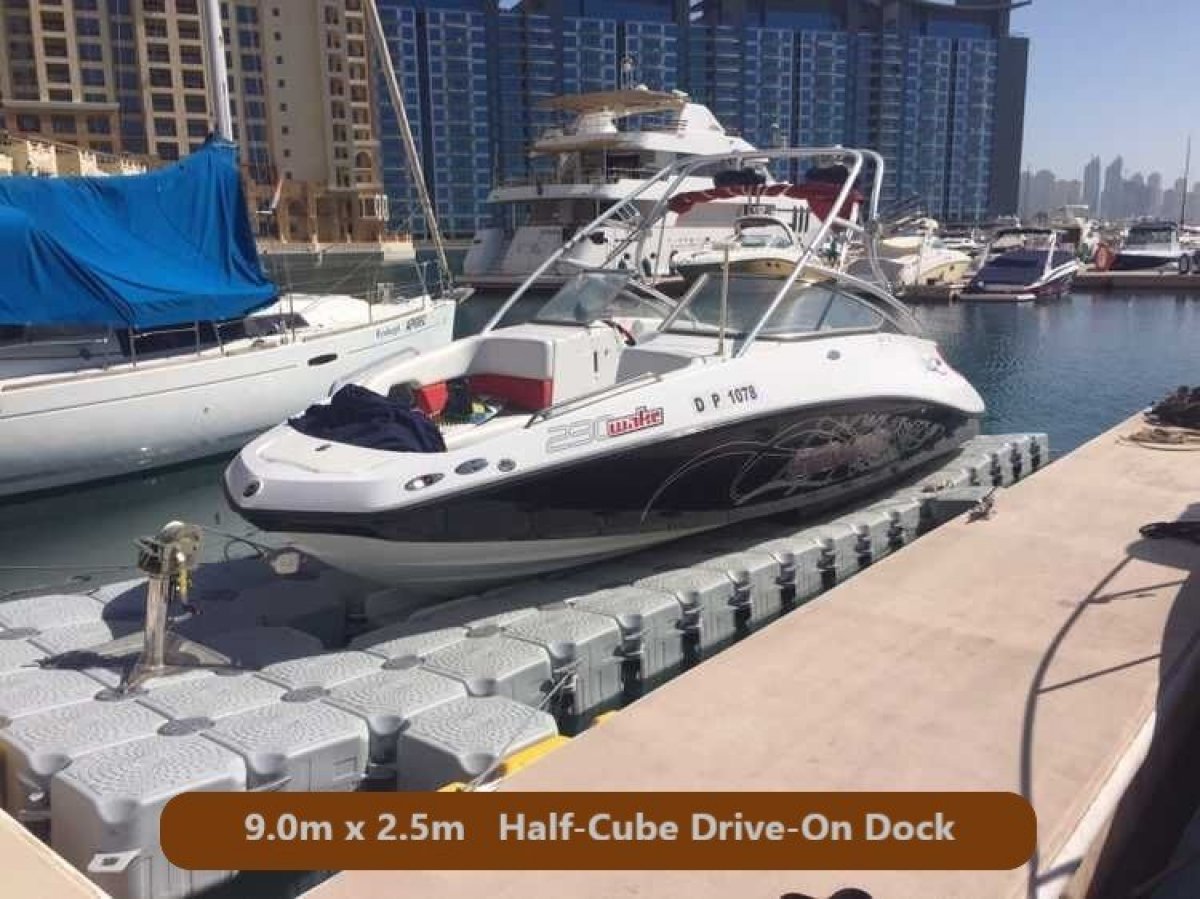

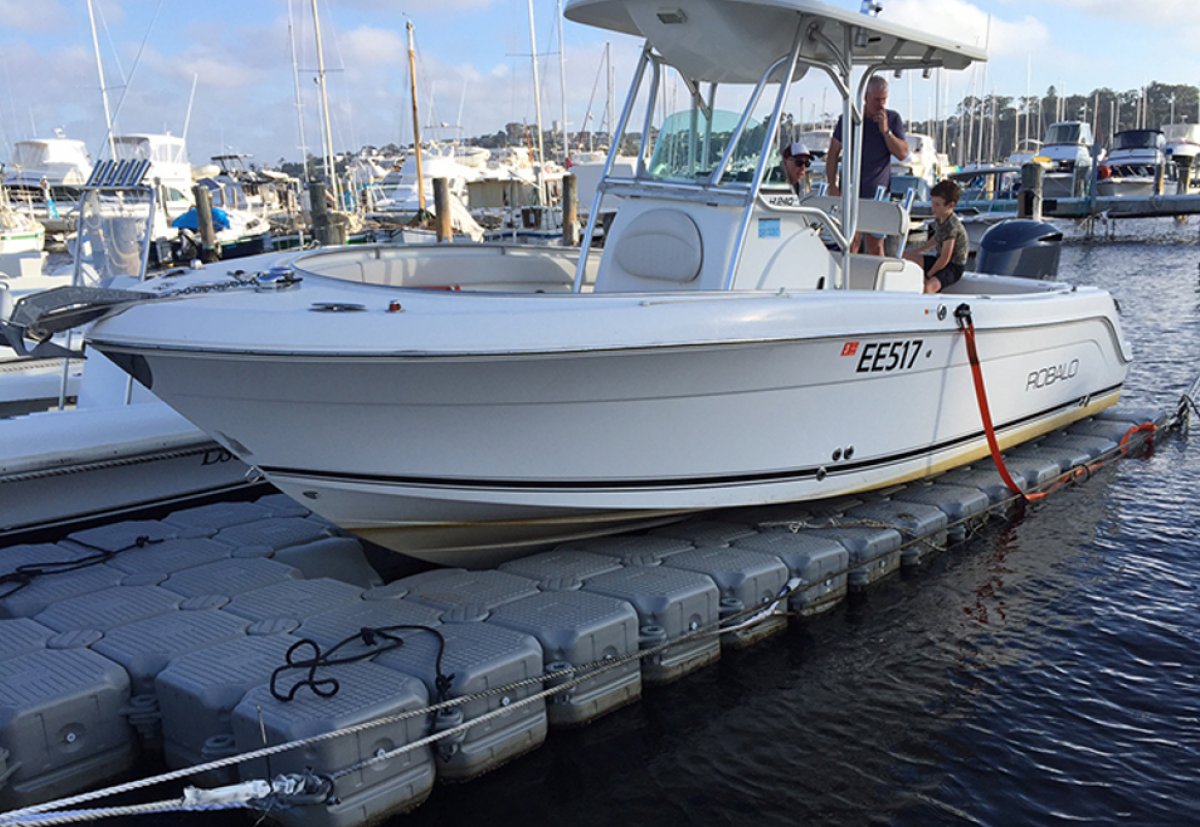

The latest drive on/off 3-Roller centre float is designed for all vessel hull types up to 5000kgs. The new 3-Roller pattern allows Vessels & Jet Skis (Mono/Twin Hulls) an easy Drive On/Off passage without the use of a winch. The DO Docks offer a payload of 350kgs/m2 and can accommodate vessels up to 5000kgs.

Drive On/Off Dock Sizes can be configured to any LxW in multiples of 0.5m
Includes Cubes, 3-Roller Centre Floats, Flooding Cubes, Connections & Tools
Complimentary SS Bollard for Dock order plus 18m2

Prices per m2 ex Depots
Docks over 30m2 $380 per m2
Docks 24 - 36m2 $400 per m2
Docks 12 - 24m2 $420 per m2
Docks under 12m2 $450 per m2

Dock Size Price Examples
4.5 x 2.5m dock = 11.25m2 x $450p/m2 = $5,062
6.0 x 3.0m dock = 18.00m2 x $420p/m2 = $7,560
8.0 x 3.5m dock = 28.00m2 x $400p/m2 = $11,200
9.0 x 4.0m dock = 36.00m2 x $380p/m2 = $13,680
Above prices are ex OTTOP depots Bne, Mel, Syd, Per

To Door Delivery & Other Destinations available on request

Flooding Cubes
Flooding Cubes (same as single cube) are positioned at the first 2 rows of dock entry and can be filled with water which in-turn curves the dock into the water. This creates an easier drive on/off passage. There is a special tool provided which allows you to empty the flooding cubes when required. No extra cost for Flooding Cubes

Free Design & Quotation Assistance
Email your Vessel details or Dock Size required, and our team will configure a suitable Floating Dock option with full details, images, & videos. E: Email Seller ottop. Com. Au

Drive On/Off Dock Installation
Installing Drive-On Docks is a simple & easy DIY assemble. Takes approximately 1 hour for 2 people to connect 50 cubes. The specialised tools are included & instructions are provided detailing how to assemble and connect. Floating Docks can be assembled on land or water. The docks also can be extended, re-shaped, re-sized and re-positioned at any time. If unable to install, OTTOP can arrange installation for an additional fee.

Product Features
Maintenance free - Ecofriendly - Easy install - Durable - 100% Recyclable - Rounded Edges
Anti Slip - UV Resistant - Anti-Corrosion - All Weather - Marine Safe - Anti-Chemical & Oil
Certified - Long Lasting - All Weather - Simple Reconfigurations - Portable - Lightweight
No Metal, Lead, Lead, Mercury, Polybrominated Biphenyl / Diphenyl, Cadmium, Hexavalent

Product Specifications
Moulding: Blow Moulding
Material: HDPE (High Density Polyethylene)
Material Thickness is 3-5cm.
Load capacity: 350kgs/m2
Lifespan: +15years
Certifications: ISO9001:2008, FFDA, SGS, ISO, CE, IAF, CNAS, GB
High Compression: Average 1000kg/m2
Versatility: Can Be Used Widely in Various Fields
Strength: Diagonal Lugs, tear strength 1950kgf. Test speed 50mm/min.
Temperature: -60°c to +80°c
Buoyancy: Standard Cube Block Provides 95kg Lift When Fully Submerged.
Draft: Without Load Per m2/2.5-3cm - With Load 150kgs/15-20cm - With Load 300kgs/35-40cm. Shallow Draft: Draft of Just 25mm Unladen Allows Use in Shallow Waters.
Wind & Waves: 9~10 Class Wind Or 7~8 Class Waves. Wave On Water Surface - 2-class and 3-class - Safe Applicable Range. 3-class and 6-class - Applicable with Safety Protection.
6-class and 9-class - Restricted Applicable Range. Diagonal pulling force of floating pontoon: 26KN - Flat angle pulling force of pontoon: 33KN.

All products are supported with Manufacturers Quality Assurance Guarantee & Product Warranty. Please ensure you have read our Purchasing & Refunds Policy prior to purchase.

Prices Shown Are Ex OTTOP Ade / Bne / Per / Mel / Syd Depots.
TO DOOR delivery & other Destinations available on request
Delivery Time: Approx. 5/6 Weeks
