2017 45m Lanfding Craft (LCT)
Price
US $2,100,000
Currency
Length
147' 8" - 45.00m
Vessel Location
West Papua
Launch Year
2017
Hull Material
Steel

CLASS RINA - C*HULL * MACH, Unrestricted navigation. Ro-Ro cargo ship - equipped for carriage of containers.
Vessel is Cook Islands Flagged, and SOLAS Compliant.
The vessel has recently undergone 5 Year Special Survey and is in very good condition.
All machinery has undergone major overhauls (including turbos).

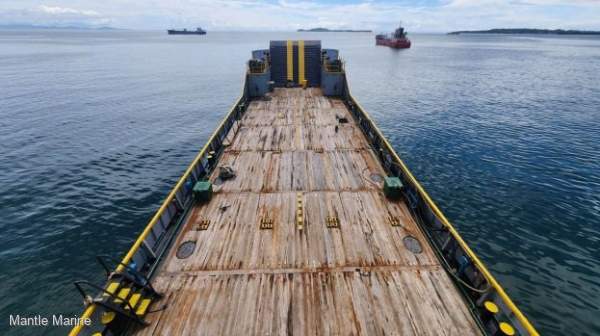

Main deck has been blasted and painted with new timbers.
New Oily Water Separator, new electonics and navigation package installed.
Major upgrades to accomodation, galley and mess area.
Length: 45m x Beam: 10m x Draft: 2.475m x Depth: 3.30m
DWT: 425T
Gross Tonnage: 448T
Net Tonnage: 135T
Hull: Steel, Double Bottom
Deck Load: 7.0 Tm/2
Ramp max Load: 50T
Service Speed: 7-8 knots
Containers: 12 teu at 20 ts each,
Main Engines:
Gear Boxes: YANMAR, YXH-160-5
Gensets: YANMAR, 6 CHL-HTN, 2 x 92 KVA, w- Stamford XIGE 203439 alternator
Capacity
Fresh Water: 80 m3
Fuel Oil: 40 m3
Day Tank: 4 m3
Fresh Water ballast: 80T
Air conditioned berths for 12 crew.
Price
US $2,100,000
Launch Year
2017
Length
147' 8" - 45.00m
Beam
10m
Draft
2.475
Vessel Location
West Papua
Region
Asia
Use
Charter, Commercial
Builder
PT Marindiri Shipyard in Samarinda Indonesia.
Hull Material
Steel
Engine
YANMAR, 6 HYM-WET, 2 x 500 HP
Engine Make
Yanmar
Number Engines
2
Horsepower
2 x 500 hp
Fuel Type
Diesel
Max Speed
9 knots
Cruise Speed
7/8 knots
Genset
Yanmar
Fuel
44m/3
Water
80T
Accommodation
10
Berths
10
Air-Con
Yes
Safety Gear
To SOLAS requirements
Electronics / Navigation
Radio & Navigation Equipment
SSB: ICOM-ICM 710
VHF: ICOM IC M 304
Navtex: FURUNO NX-300
GPS: FURUNO GP-32
Radar 5": FURUNO RDP1715
Echo Sounder: FURUNO FCV-627
Magnetic Compass: DAIKO JAPAN 6" T1508
V S AT: Starlink
Anemometer: Clipper
AIS: Samyung SI-30A
ECDIS: C-Map
SSB: ICOM-ICM 710
VHF: ICOM IC M 304
Navtex: FURUNO NX-300
GPS: FURUNO GP-32
Radar 5": FURUNO RDP1715
Echo Sounder: FURUNO FCV-627
Magnetic Compass: DAIKO JAPAN 6" T1508
V S AT: Starlink
Anemometer: Clipper
AIS: Samyung SI-30A
ECDIS: C-Map
Survey Details
RINA
