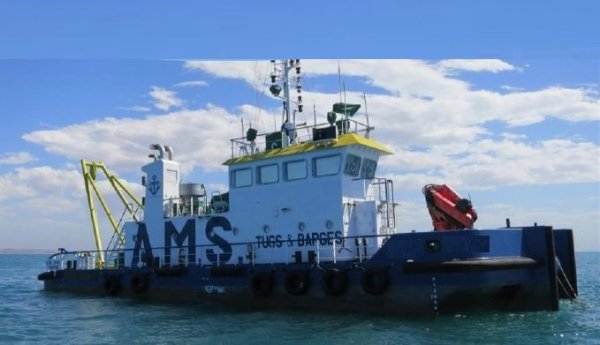

28m 1500bhp Shallow Draft Workboat
Length
91' 10" - 28.00m
Vessel Location
North Sydney NSW
Launch Year
2012
Hull Material
Steel
Classification: ABS +A1 (E), Towing Vessel, +AMS. Total Deck Space: Approx. 10 knots Bollard Pull: 19 tons. Main Engine: 2 x Caterpillar C32 ACERT - 750bhp @ 1800rpm Propeller: 2 x Fixed Pitch 4 Blade (1400mm) with Kort Nozzles. Accommodation: 1 x 1 man (Captain); 1 x 2 men; 2 x 4 men.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Boat Reference
1124558
Launch Year
2012
Length
91' 10" - 28.00m
Beam
11m (36ft)
Draft
2.275m (7ft 5in)
Vessel Location
North Sydney Nsw
Region
Queensland
Use
Commercial
Hull Material
Steel
Engine
C32 ACERT
Fuel Oil Transfer Pump - 25m³/hr
Sewage treatment plant with holding tank
Blower fan - 2 x 19" for Engine Room
Fitted with SOLAS / Class Approved CO² Fire Suppression System
Gear Box: Twin disc MGX5222 Ratio 4.59:1
Propeller: 2 x Fixed Pitch 4 Blade (1400mm) with Kort Nozzles
Engine Make
Caterpillar
Number Engines
2
Horsepower
750bhp @ 1800rpm
Genset
2 x Caterpillar C6.6 ACERT 125ekW @ 1500rpm/50Hz/415V/p. F. 0.8 (IMOT1)
Accommodation
1 x 1 man (Captain); 1 x 2 men; 2 x 4 men
Ground Tackle
Fork Towing Pin: Hydraulic Self Lifting FTP 35T WLL; Local & Remote Control
Towing Hook: Towing Hook 30 ton WLL with hydraulic emergency release
Towing Winch: 1 x ME S'pore 25 ton Single Drum Winch with 50 ton Brake holding capacity ; Local, Remote & Pendant Control
Towing Wire: 32mm dia. X 400m (6x36) IWRC EEIPS RHRL Galvanized Wire Rope
2 x Anchor Windlass: Electrical hydraulic anchor windlass having capacity 2.0 tons @ 10m/min Single gypsy suitable for 19mm dia. Stud link chain, 2 x 300kg Stockless Anchors
2 x Crane: FASSI F1100RAFM 2.24 He-Dynamic Knuckle Boom Crane (Bow & Aft), Max 25 ton @ 3.5m, Min 8 ton @ 11.25m; Individual Hand-held Remote Control
Towing Hook: Towing Hook 30 ton WLL with hydraulic emergency release
Towing Winch: 1 x ME S'pore 25 ton Single Drum Winch with 50 ton Brake holding capacity ; Local, Remote & Pendant Control
Towing Wire: 32mm dia. X 400m (6x36) IWRC EEIPS RHRL Galvanized Wire Rope
2 x Anchor Windlass: Electrical hydraulic anchor windlass having capacity 2.0 tons @ 10m/min Single gypsy suitable for 19mm dia. Stud link chain, 2 x 300kg Stockless Anchors
2 x Crane: FASSI F1100RAFM 2.24 He-Dynamic Knuckle Boom Crane (Bow & Aft), Max 25 ton @ 3.5m, Min 8 ton @ 11.25m; Individual Hand-held Remote Control
Safety Gear
Pyrotechnics, Life-buoys, Various Fire Extinguishers. Co2 Suppression System, Fireman's Outfit & BA Set. Fitted to Statutory Req. Of S'pore Non-convention Vessels, SOLAS & Australian regulations
SART: McMurdo S4 Rescue SART
SART: McMurdo S4 Rescue SART
Life Raft
2 x 15 men SOLAS (Bridge & Main Deck)
Epirb
McMurdo E5 Smartfind 406
Electronics / Navigation
Radar: Furuno FR 8062
VHF: Furuno Make
GMDSS Inmarsat C Sys. : Furuno A1+A2+A3
SSB Radio: Furuno Make
GPS Navigator: Furuno GP-150
GPS Chart Plotter: Lowrance HDS-10
Magnetic Compass: DAIKO SR-150PK
Speed Log: Furuno Make
Universal AIS: Furuno FA-150
Echo Sounder: Furuno FE-700
Navtex Receiver: Furuno NX-700
PA system: Huayuan
Intercom: Huayuan
Wind Speedometer: Furuno FI-50
Facsimile Receiver: Furuno Fax-400
VHF: Furuno Make
GMDSS Inmarsat C Sys. : Furuno A1+A2+A3
SSB Radio: Furuno Make
GPS Navigator: Furuno GP-150
GPS Chart Plotter: Lowrance HDS-10
Magnetic Compass: DAIKO SR-150PK
Speed Log: Furuno Make
Universal AIS: Furuno FA-150
Echo Sounder: Furuno FE-700
Navtex Receiver: Furuno NX-700
PA system: Huayuan
Intercom: Huayuan
Wind Speedometer: Furuno FI-50
Facsimile Receiver: Furuno Fax-400
Remarks
Registry/Delivery: Australia / December 2012
Official Number: 860900
Call Sign: VJN4416
IMO Number:
Breadth: 11m (36ft)Depth Moulded: 3.25m (10ft 7in)
Designed draft: 2.275m (7ft 5in)
Classification: ABS +A1 (E), Towing Vessel, +AMS
GRT / NRT: 247/74 Tons
FO/FW Tank: 141.2m³ / 53.70m³
Total Deck Space: Approx. 10 knots
Bollard Pull: 19 tons
A-Frame/Rollers: Class Approved Anchor Handling A-Frame
Rollers: Bow & Stern Rollers Fitted
Controls: Wheelhouse & Steering Gear Control - Fore & Aft
Official Number: 860900
Call Sign: VJN4416
IMO Number:
Breadth: 11m (36ft)Depth Moulded: 3.25m (10ft 7in)
Designed draft: 2.275m (7ft 5in)
Classification: ABS +A1 (E), Towing Vessel, +AMS
GRT / NRT: 247/74 Tons
FO/FW Tank: 141.2m³ / 53.70m³
Total Deck Space: Approx. 10 knots
Bollard Pull: 19 tons
A-Frame/Rollers: Class Approved Anchor Handling A-Frame
Rollers: Bow & Stern Rollers Fitted
Controls: Wheelhouse & Steering Gear Control - Fore & Aft
