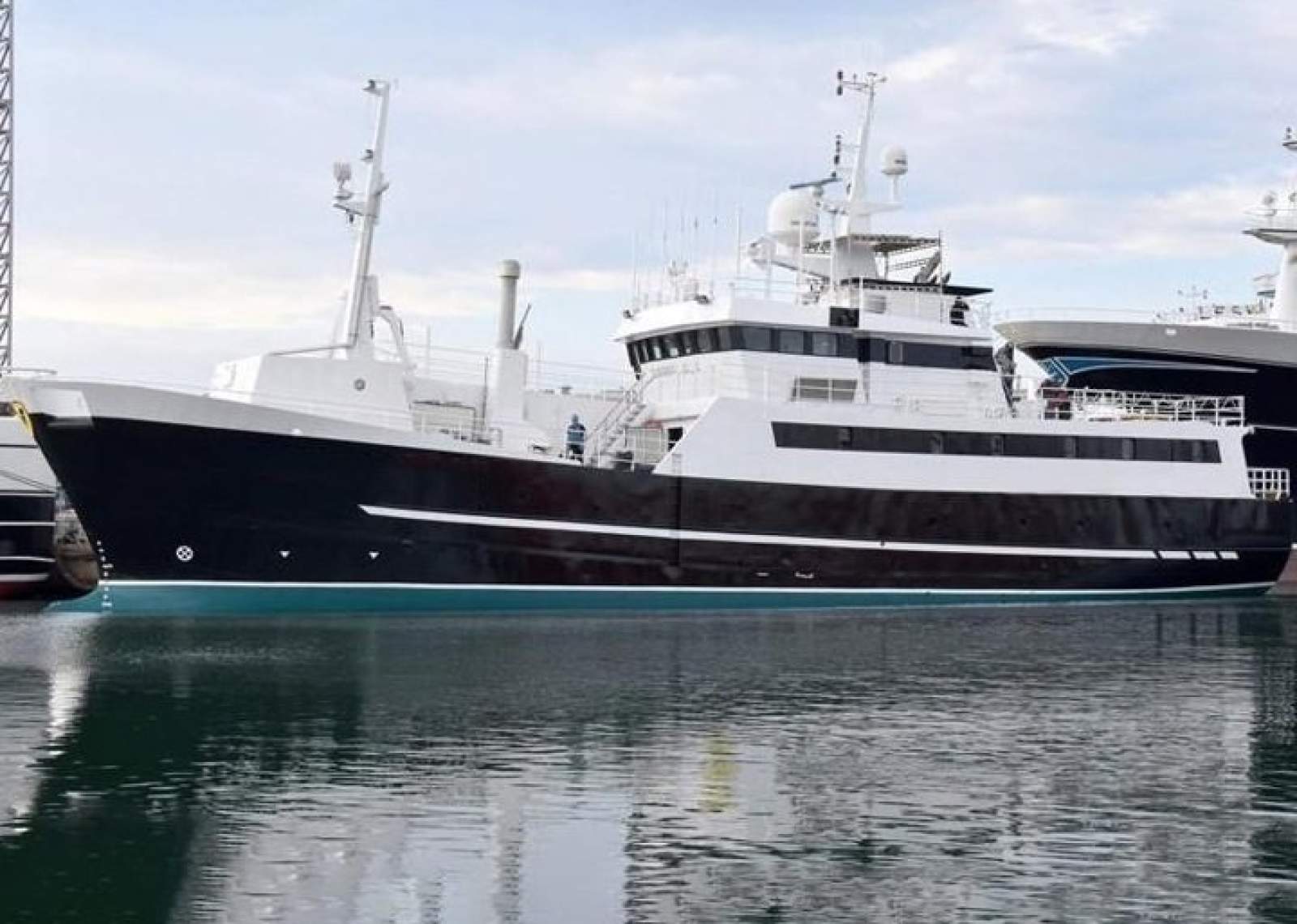

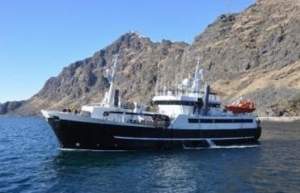

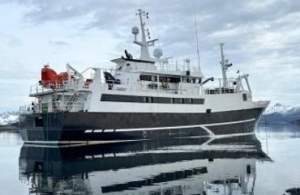

38.10m Whelk Fishing / Production Vessel
Length
27' 11" - 8.50m
Vessel Location
Northern Norway
Launch Year
1989
Hull Material
Steel
Type: Whelk vessel / Whelk Fishing / Production vessel. Built Year: 1989, Fiskerstrand Verft A/S, Fiskerstrand, Norway. Class: DNV, #1A1 Fishing vessel. Class Status: Valid until 2027. Fishing: New arrangement 2020, full hauling and gear handling, shooting system, comfortably hauling 2400 traps per day.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Vessel Name
38.10m Whelk Fishing / Production Vessel
Boat Reference
5413
Launch Year
1989
Length
27' 11" - 8.50m
Beam
8.50m (27ft 11in)
Draft
5.80m (19ft 0.3in)
Vessel Location
Northern Norway
Region
Europe
Use
Off-shore Fishing, Commercial
Builder
Fiskerstrand Verft A/S, Fiskerstrand, Norway Class: DNV, #1A1 Fishing vessel
Hull Material
Steel
Engine
Alpha, Diesel 6L23/30-DKV, 825 rpm new 1989
Main Engine
1,100 BHP, Alpha, Diesel 6L23/30-DKV, 825 rpm new 1989
Full Rebuild by Alpha Frederikshavn 2020 at 42,000 hrs. Engine running hrs. Reset to 0 hrs.
8000 hrs. From rebuild
Propeller: Alpha Ø 2550 mm with reduction gear 214 rpm. Alphatronic Manoeuvring system, 1989
Rudder: Becker rudder
Steering Gear: Tenfjord steering machine, type H 330-130-ESG
Auxiliary Engines and Generators
Auxiliary Engine 1: Scania D-12, new 2011
Generator 1: Leroy Somer LSA 46L10, new 1992
Auxiliary Engine 2: Scania D-12, new 2011
Generator 2: Leroy Somer LSA 46L10, new 2011
Auxiliary Engine 3: 1 × Volvo D7AT
Generator 3: Stamford UCM274E13, new 2020
Separators, Compressors, Pumps
Fuel oil separator: Alfa Laval MAB 103B-24,900 l/h, 1989
Sounding system: PELIO Sound 482 822-202-2,1989
2 × Sperre charging air compressor HLF 2/77 9 m³/h 30 bar, 1989
1 × Working air compressor Hydrovane get 33,50 m³/h 7 bar, 1989
Air-driven foam plant with 150 l tank, 3 outputs
2 × High pressure pumps 190 bar 21 l/min - type Nordic connected to central plant
Hauling and shooting doors hydraulically operated sec. To regulations
5 × Exh. Buxt pumps on factory deck
2 × Bilge pumps connected to valve control
Hold
340 m³ freezing hold in two holds - frozen
Forward freezing hold: 90 tons
Aft freezing hold: 100 tons
Tunnel freezer: 10 tons
Forward bait hold: 15 tons
Bait store capacity: 32 m³
Fuel Type
Diesel
Thrusters
Thrusters: 1 × Electric Bow Thruster, new 2020
Genset
Shaft Generator: 1 × Atlas Skjong shaft generator, 175 kW, 230V, 50 Hz, 1989, operated from main engine
Accommodation
For 20 persons
Mess: All fitting inside removed and replaced with new in 2018
Mess: All fitting inside removed and replaced with new in 2018
Cabins
13 cabins
All cabins with new fittings (replaced 2018)
All cabins with new fittings (replaced 2018)
Berths
20
Water-Maker
New Evaporator 2020
Safety Gear
Internal Systems and Safety Equipment
1 × Vingtor Intercom VRC 112 M, 1989
1 × TV Monitoring Color, 18 Cameras, 2020
1 × Servoteknikk Fire Alarm Box, 1989
1 × Halon Plant 1301,1989
1 × Seatel Parabolic Antenna for Radio and TV, 2013
Lighting And Additional Equipment
2 × IbaK Searchlights, 1 with Remote Control, 1989
1 × Ship Equip Satellite Phone V-Sat + Dataline (Internet), 2007
1 × Vingtor Intercom VRC 112 M, 1989
1 × TV Monitoring Color, 18 Cameras, 2020
1 × Servoteknikk Fire Alarm Box, 1989
1 × Halon Plant 1301,1989
1 × Seatel Parabolic Antenna for Radio and TV, 2013
Lighting And Additional Equipment
2 × IbaK Searchlights, 1 with Remote Control, 1989
1 × Ship Equip Satellite Phone V-Sat + Dataline (Internet), 2007
Electronics / Navigation
Navigation And Positioning Systems
1 × Max Sea Chart Plotter, 2010
1 × Max Sea Time Zero, 2013
1 × Furuno GP 80 DGPS (sat. Navigator)
1 × Furuno GP 30 DGPS
1 × Furuno GP 30 GPS
Autopilots And Gyro Systems
1 × Robertson Autopilot AP 9 Mk 2,1989
1 × Robertson Autopilot AP 45,1997
1 × Simrad AP 70 Autopilot, 2014
1 × Sperry Gyro FR 220,1989
1 × Robertson Gyro, 2001
Radar And Echo Sounders
1 × Furuno Radar 2115,2003
1 × Furuno Radar RCU 014,2014
1 × Simrad Echo Sounder EQ 60 with Colour Monitor, 2001
2 × Furuno Techis-Ecdics, 2014
Communication Equipment
1 × Furuno FS 5000,400W, 2001
1 × Sailor Simplex Transmitter Comp., 1982
1 × Sailor R 501
2 × Sailor VHF RT 4822,2003
1 × A3, GMDSS World Wide, 2003
1 × Furuno Navtex, 2003
1 × Furuno DS 860,2003
1 × Thrane & Thrane Inmarsat C TT 3800E, 2003
1 × Simrad Satellite Phone, 2000 + Iridium, 2002
3 × Mobile Phones, 1999/2001
1 × Max Sea Chart Plotter, 2010
1 × Max Sea Time Zero, 2013
1 × Furuno GP 80 DGPS (sat. Navigator)
1 × Furuno GP 30 DGPS
1 × Furuno GP 30 GPS
Autopilots And Gyro Systems
1 × Robertson Autopilot AP 9 Mk 2,1989
1 × Robertson Autopilot AP 45,1997
1 × Simrad AP 70 Autopilot, 2014
1 × Sperry Gyro FR 220,1989
1 × Robertson Gyro, 2001
Radar And Echo Sounders
1 × Furuno Radar 2115,2003
1 × Furuno Radar RCU 014,2014
1 × Simrad Echo Sounder EQ 60 with Colour Monitor, 2001
2 × Furuno Techis-Ecdics, 2014
Communication Equipment
1 × Furuno FS 5000,400W, 2001
1 × Sailor Simplex Transmitter Comp., 1982
1 × Sailor R 501
2 × Sailor VHF RT 4822,2003
1 × A3, GMDSS World Wide, 2003
1 × Furuno Navtex, 2003
1 × Furuno DS 860,2003
1 × Thrane & Thrane Inmarsat C TT 3800E, 2003
1 × Simrad Satellite Phone, 2000 + Iridium, 2002
3 × Mobile Phones, 1999/2001
Deck Gear
Deck Equipment
Mustad Autoline System shooting system (2007), comfortably hauling 2400 traps per day
Brattvaag B5-2K anchor/mooring winch, 1989
High pressure line hauler installed Feb. 2007
Hydraulic aggregate for deck equipment - Odim
2 × 65 t/min 100 bar, 1989
1 × Thistle Marine deck crane with winches, new 2020
1 × Marine Crane Pal finger PK 12000, new 2015
Equipment for longlining and crab fishing kept in storage
Mustad Autoline System shooting system (2007), comfortably hauling 2400 traps per day
Brattvaag B5-2K anchor/mooring winch, 1989
High pressure line hauler installed Feb. 2007
Hydraulic aggregate for deck equipment - Odim
2 × 65 t/min 100 bar, 1989
1 × Thistle Marine deck crane with winches, new 2020
1 × Marine Crane Pal finger PK 12000, new 2015
Equipment for longlining and crab fishing kept in storage
Survey Details
Class: DNV, #1A1 Fishing vessel
Class Status: Valid until 2027
Class Status: Valid until 2027
Remarks
Type: Whelk vessel / Whelk Fishing / Production vessel
Maintenance: A lot of work done on the vessel in 2017
Wheelhouse: New arrangement 2020,3 × NorSap Skipper Chairs
Sandblasted: 2010 - sandblasted / metallized / painted
Factory: New arrangement 2020/24, bespoke one-of-a-kind fully automated factory for processing whole whelk/ whelk meat
Fishing: New arrangement 2020, full hauling and gear handling, shooting system, comfortably hauling 2400 traps per day
Mess: All fitting inside removed and replaced with new in 2018
Freezing
IQF @ -24, takes 22 minutes. Bait mincing machine capable of processing 20kg frozen blocks
Freezing medium: Freon 449a
2 × Bitzer screw compressors each 40 kW, pump circulation system (Küloeiscope), 2013
Freezing tunnel: Freezing capacity approx. 1 ton per hour
Freezing equipment for white fish kept in storage
Cooling
New Ammonia System by Johnson Controls 2020. Capacity: 20 m³/h
Processing
Factory for processing whole whelk/ whelk meat
Capacity of 1,000kg whole whelk per hour
Factory equipment for processing white fish kept in storage
Various
ATG WF-115-3 UV Disinfection System new 2020
Board connected to condenser battery
Hydrophone fresh water system 2500 L/h type Byrne, 1940
Hydrophone seawater system 1700 L/h type Byrne, 1940
Maintenance: A lot of work done on the vessel in 2017
Wheelhouse: New arrangement 2020,3 × NorSap Skipper Chairs
Sandblasted: 2010 - sandblasted / metallized / painted
Factory: New arrangement 2020/24, bespoke one-of-a-kind fully automated factory for processing whole whelk/ whelk meat
Fishing: New arrangement 2020, full hauling and gear handling, shooting system, comfortably hauling 2400 traps per day
Mess: All fitting inside removed and replaced with new in 2018
Freezing
IQF @ -24, takes 22 minutes. Bait mincing machine capable of processing 20kg frozen blocks
Freezing medium: Freon 449a
2 × Bitzer screw compressors each 40 kW, pump circulation system (Küloeiscope), 2013
Freezing tunnel: Freezing capacity approx. 1 ton per hour
Freezing equipment for white fish kept in storage
Cooling
New Ammonia System by Johnson Controls 2020. Capacity: 20 m³/h
Processing
Factory for processing whole whelk/ whelk meat
Capacity of 1,000kg whole whelk per hour
Factory equipment for processing white fish kept in storage
Various
ATG WF-115-3 UV Disinfection System new 2020
Board connected to condenser battery
Hydrophone fresh water system 2500 L/h type Byrne, 1940
Hydrophone seawater system 1700 L/h type Byrne, 1940
