Alucraft HOUSE BOAT/TOW BARGE

Length

55' - 16.76m

Vessel Location

Exmouth WA

Launch Year

1996

Hull Material

Aluminium

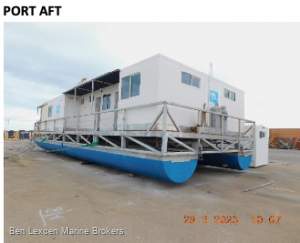

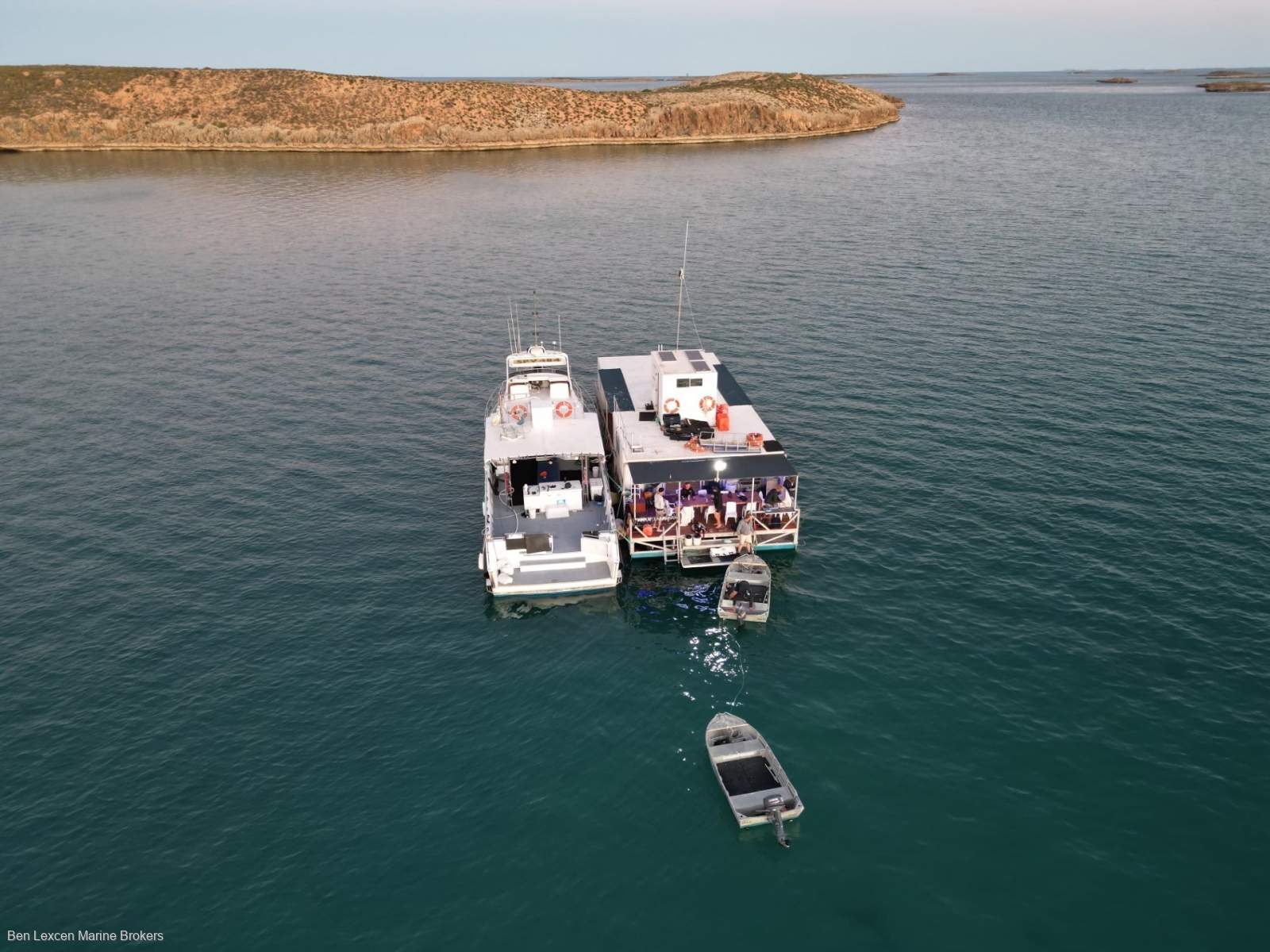

FULL MONTE is a twin hull accommodation barge consisting of 4 x sealed Aluminium pontoons, with an aluminium frame built over the pontoons to house a flat deck and a 9-room accommodation structure. The accommodation consists of a 6-bedroom, 2 Toilet/Shower amenity block and a large Galley/common area with a pantry and electrical distribution switchboard. The accommodation can sleep 16. In addition, there is a nice neat plank deck alfresco area to the forward end, which also houses a generator engine box. The barge is designed to be moored when in use and has facilities to be safely towed to site. There is a drop-down access ramp forward, for passengers and supplies to be easily loaded and unloaded from dinghies. Larger vessels can be moored alongside, and good mooring bitts are provided on the barge for mooring lines.

Fitted to the top deck of the accommodation is a Storage block with solar panels for battery charging. In between the pontoons there is storage for sullage, fresh water and extra floatation.

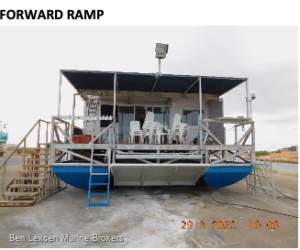

There are access points either side of the Fwd. Alfresco and from the FWD platform when in the lowered position

For an Inventory or everything available including other vessels and extra gear GO TO OUR WEBSITE BELOW

https://boatsonline. Yachthub. Com/boat_admin/edit-ad-v2. Php?action=edit_ad&pe=305567&_ =

Dealer Website /boats-for-sale. Php?dealer=benlx&cate=Commercial_V essels&de=305567&ToDo=show_det ails

For further information please contact Corrado on

Boat Reference

V589

Launch Year

1996

Length

55' - 16.76m

Beam

6.8 m

Draft

1.2 m

Displacement

18 t

Vessel Location

Exmouth Wa

Region

Western Australia

Use

Charter, Commercial

Builder

Alucraft

Hull Material

Aluminium

Decks Material

All aluminium frame with marine ply flooring. Internal floor coverings are vinyl. Alfresco area is plank decking

Engine

No Main Engine

Genset

22.3 kw Kubota 4 cyl, 4 stroke, water cooled diesel

Fuel

1 x 60L fuel Tank

Water

2 x 1000L Fresh Water Tanks, fed with a CITOR Reverse osmosis plant.

Accommodation

6 x Cabins
Sleeps 16

Shower

2 x Full Internal Bathrooms with Shower Stall

Toilet

2 x Heads

Galley

Commercial style kitchen with very good amenities, all Stainless-Steel sinks and benches, full sized fridge, commercigas stove, ice maker and a ZIP Hot water/Chilled water dispenser

Hot Water

2 x 60L 240v.

Safety Gear

Navigation lights
8 with lanyards, 1 with SIL
16 x SOLAS, lights & whistles fitted
2 x 4.5 Kg dry powder, 1 x 9 L foam, 1 x 6L CO2
Fire Blanket
Fire Buckets, 2with lanyards
First Aid Kit

Epirb

Yes

Electrics

12/240 v
Pressure Water Pump
1 banks of 1 x 12 V batteries FOR GENSET START
1 Bank of 3 solar batteries for invertor operation
Full solar charging and invertor system for 240 off grid operations.
Spare (off duty) bank acts as emergency house batteries. Cole Hersey isolation switches are fitted. Isolation breakers are fitted.
240 V single phase inverter

Deck Gear

1 x 400L Black Water tank, PVC Tube
1 x 400L Grey Water tank, PVC Tube
Fenders
Mooring Ropes
Heaps of Storage throughout vessel
Ladders

Survey Details

1C SURVEY, MARCH 2023, SURVEY REPORT AVAILABLE

Remarks

NOTE:
1. The particulars and specifications have been supplied by the seller. Such particulars and specifications have not been verified by Ben Lexcen Marine Brokers. It is the purchaser's responsibility to verify the accuracy of such particulars and specifications.
2. All items listed above are expected to be in working order unless otherwise noted
