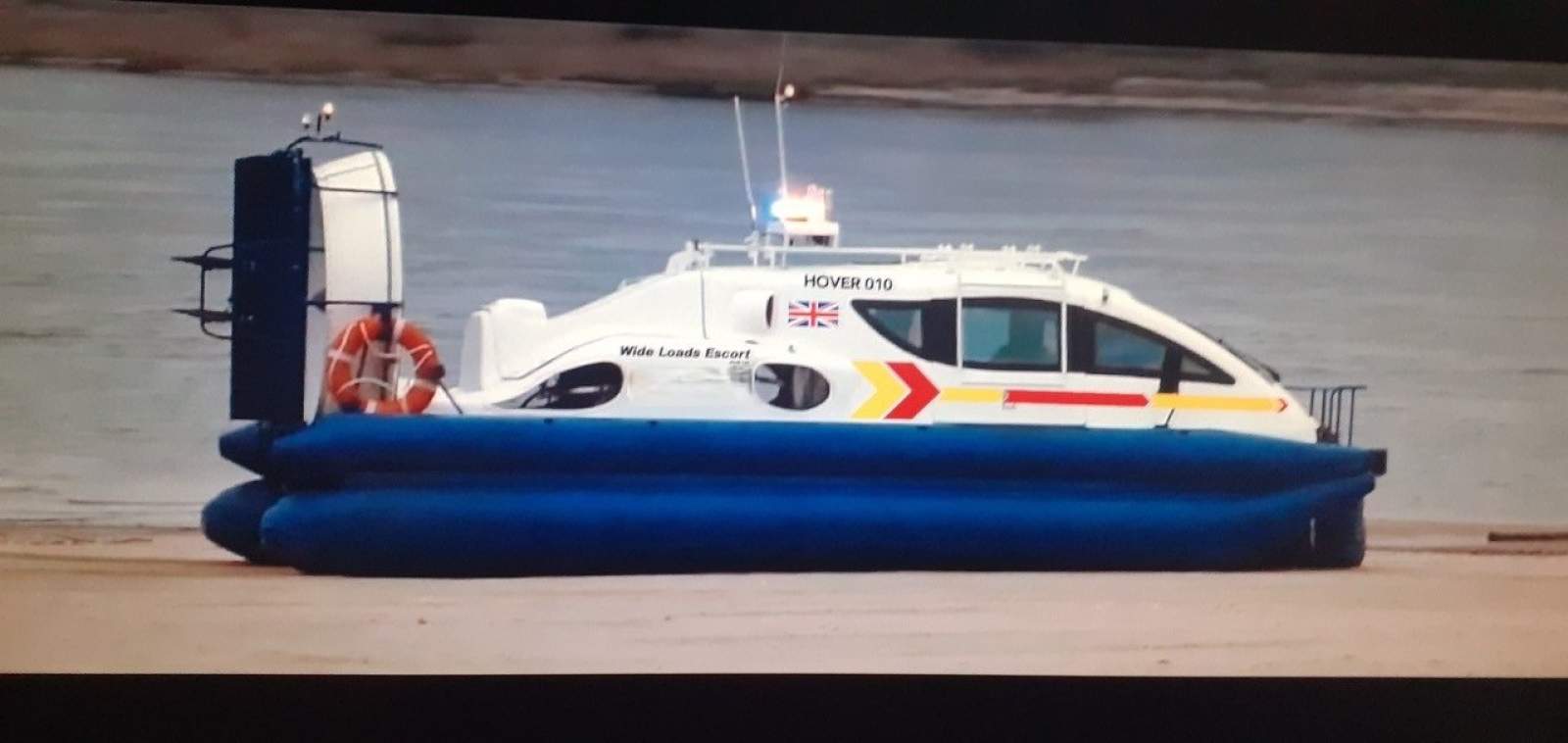

Hovercraft Model M10P
Price
UK £45,000
Currency
Length
26' 3" - 8.00m
Vessel Location
United Kingdom
Launch Year
2020
Hull Material
Aluminium
Use as a passenger/cargo ship in conditions of movement in open water, with waves not exceeding 1m, in shallow water, with full access to a flat coast, not crowded land. Movement is allowed only during daylight hours. Flexible balloon hovercraft. Separate lifting and moving complex with two double-sided centrifugal blowers and one no-variable pitch propeller in aerodynamic nozzles. Aft engine compartment. Body material: Aluminum alloys, Composite materials. The thickness of the bottom metal of the hull: Not less than 2.0 mm.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Price
UK £45,000
Boat Reference
5364
Launch Year
2020
Length
26' 3" - 8.00m
Beam
3.6m (11ft 9in)
Displacement
2565 kg
Vessel Location
United Kingdom
Region
Europe
Use
Commercial
Hull Material
Aluminium
Engine
Model: IVECO F1C
Engine location: Inside the case, in a closed compartment, with access from the outside through the cover
Autonomous Heater: 1pc., 2.2 kW
Air cushion-blower: 2 pcs., centrifugal type
Engine management: From the wheelhouse control hovercraft
Flexible Air Cushion: Two-balloon, with inflatable sides; Inflatable skegs having a longitudinal emergency section; Additional buoyancy cylinders; Bow and stern flexible skirt
Engine oil filter: 2
Fuel filter: 2
Supercharger belts:
Repair kit for flexible fences: 1
Fuel System Volume
For main engines: 270l
For autonomous heaters: 20l
Carrying capacity: 1000kg
Seaworthiness (when driving in open water): Reservoirs of the category "River", "Lake"
Speed (maximum)
On water, not less: 60 km/h
On ice, not less: 90 km/h
Resource (set life): 6 years
Trim system: Due to the presence of horizontal rudders trim
Engine Make
Iveco
Number Engines
1
Horsepower
146 kW (198 hp) each
Fuel Type
Diesel
Propulsion
Adjustable pitch propeller: 1 pc., 6 blades, in ring nozzles
Accommodation
Passenger Capacity: 6 (8 optional)
Cabins
2
Ground Tackle
Folding Anchor, 5 kg: 1
Anchor polyamide rope, diam. 16 mm, length 30 m: 1
Polyamide mooring rope, diam. 16 mm, length 30 m: 2
Anchor polyamide rope, diam. 16 mm, length 30 m: 1
Polyamide mooring rope, diam. 16 mm, length 30 m: 2
Safety Gear
Lifebuoy with a rope: 1
Flares
X 8 with a special compartment in the cabin
Electrics
Power network: 12V DC
Sockets: 2 × 12V Charging sockets; 3 × 12V USB charging sockets
Spotlight Finder: 1 pc, control from the wheelhouse
Outdoor Lighting: LED-elements; 2 pcs forward-facing spotlights; 2 pcs rear-facing work lights
Cabin and wheelhouse lighting: LED-elements
Radio CD and speakers: 1
Side Mirrors: 1 left; 1 right
Sockets: 2 × 12V Charging sockets; 3 × 12V USB charging sockets
Spotlight Finder: 1 pc, control from the wheelhouse
Outdoor Lighting: LED-elements; 2 pcs forward-facing spotlights; 2 pcs rear-facing work lights
Cabin and wheelhouse lighting: LED-elements
Radio CD and speakers: 1
Side Mirrors: 1 left; 1 right
Electronics / Navigation
For Engine: Tachometer; Coolant temperature gauge; Volmeter; Alarm indicators
General Ship: Fuel level indicator; speedometer
Navigation lights: 1
Stationary VHF radio: 1
Portable VHF radio: 2
Radar-chart plotter station (with GPS): 1 (Ray marine)
Orange flashing light (for speed vessels): 1
General Ship: Fuel level indicator; speedometer
Navigation lights: 1
Stationary VHF radio: 1
Portable VHF radio: 2
Radar-chart plotter station (with GPS): 1 (Ray marine)
Orange flashing light (for speed vessels): 1
Remarks
Model: Hovercraft Model M10P
Main Purpose: Passenger / Cargo
Body material: Aluminum alloys, Composite materials
The thickness of the bottom metal of the hull: Not less than 2.0 mm
Overall height: 3.3m
Empty displacement, kg: 1565;
WARRANTY
Hull: 24 months
Flexible fencing: 300 moto-hours or 6 months (whichever comes first) ?
Engine: 24 months or 1500 moto-hours (whichever comes first)
ADD
Optional kit: 1 pack full set of flexible
Instructions to the skipper on the maintenance and operation of the ship: Travel and accommodation expenses additionally at the expense of the customer.
Main Purpose: Passenger / Cargo
Body material: Aluminum alloys, Composite materials
The thickness of the bottom metal of the hull: Not less than 2.0 mm
Overall height: 3.3m
Empty displacement, kg: 1565;
WARRANTY
Hull: 24 months
Flexible fencing: 300 moto-hours or 6 months (whichever comes first) ?
Engine: 24 months or 1500 moto-hours (whichever comes first)
ADD
Optional kit: 1 pack full set of flexible
Instructions to the skipper on the maintenance and operation of the ship: Travel and accommodation expenses additionally at the expense of the customer.
