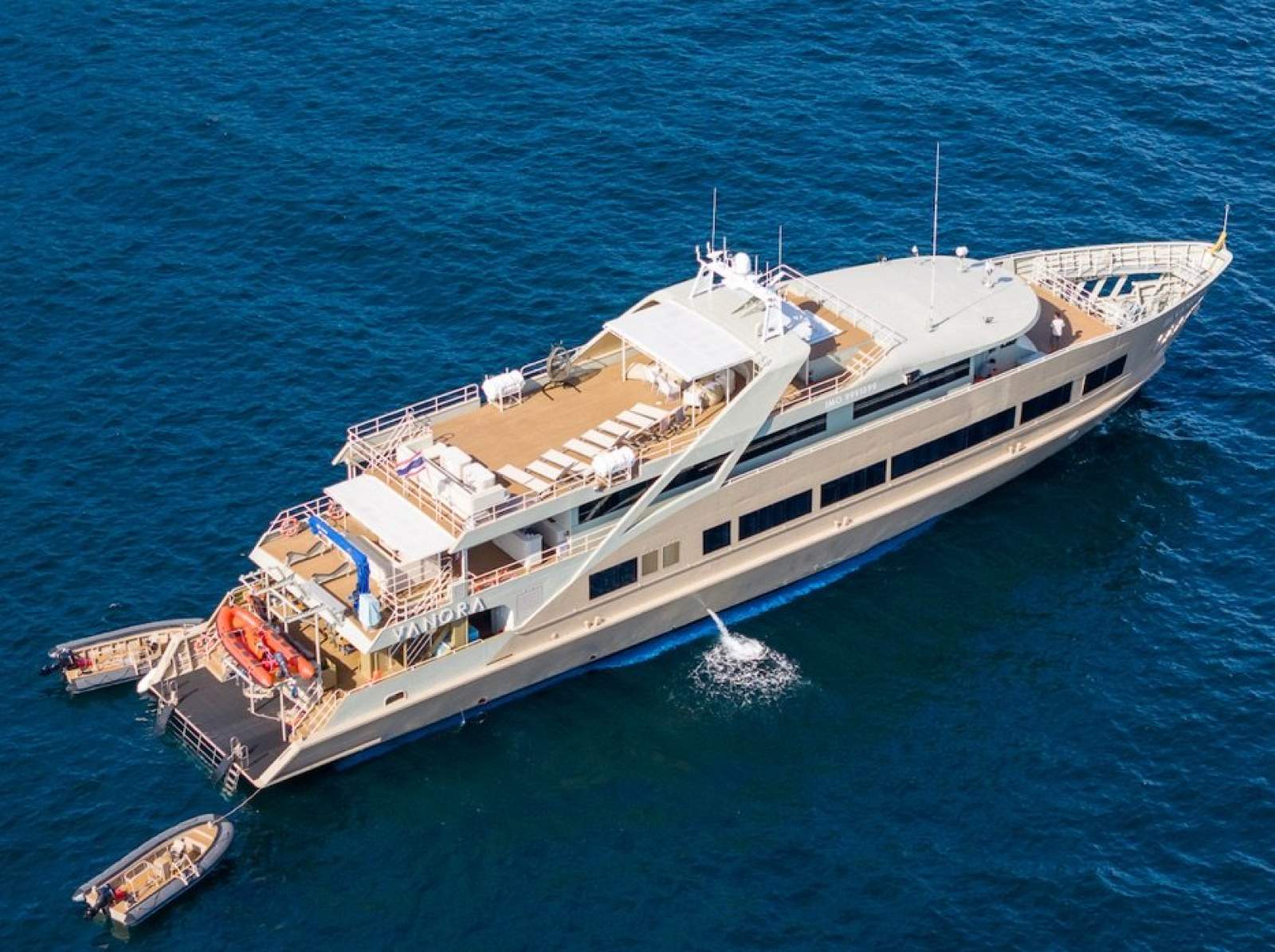

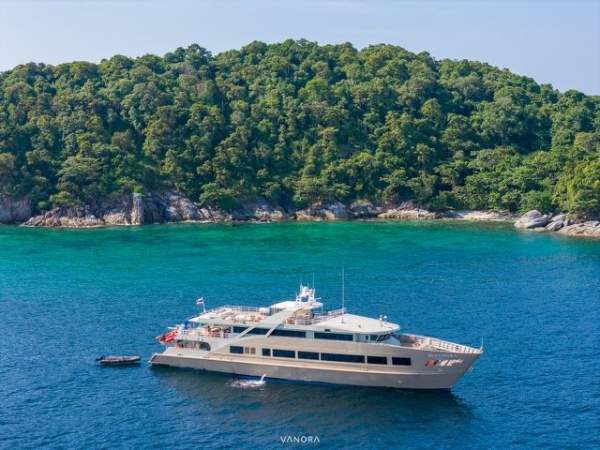

46.32m Superyacht - Dive Support Vessel
Price
US $9,100,000
Currency
Length
152' - 46.32m
Vessel Location
Phuket, Thailand
Launch Year
2023
Hull Material
Aluminium
Year of Completion: 2023. Hull: Aluminum. Superstructure: Aluminum. Crew: 12 persons. Passenger: 80 persons. Overnight Passenger: 22 persons. Speed: 18 knots. Max Speed: 22 knots. Lloyd Register (LR). Structure Notation: +100A1, SSC, Workboat, G3, Dive Support Vessel. Main Engine: 2x Cummins KTA50-M2 / 1875hp @ 1950 rpm.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
SeaBoats are International Ship Brokers & Yacht Brokers, marketing and selling a wide range of boats and ships, recreational and commercial, new and used, to broad global audiences. Our dedicated international teams of are strategically located around the world and utilize modern communication strategies and a vast network of industry associates.
Whether buying or selling, let the SeaBoats team work for you.
Price
US $9,100,000
Boat Reference
5074
Launch Year
2023
Length
152' - 46.32m
Beam
7.8m (25ft 7in)
Draft
3.80m (12ft 5in)
Vessel Location
Phuket, Thailand
Region
Asia
Use
Leisure, Cruising, Commercial
Hull Material
Aluminium
Engine
PROPULSION, GENERATORS, AUX EQUIPMENT
Main Engine: 2x Cummins KTA50-M2 / 1875hp @ 1950 rpm
Gear Box: 2x ZF Ratio 2.5:1
Main Generator: 3x 130kWe DEUTZ / 1500rpm / 3ph / 50hz
Harbor Generator: 1x 60kWe
Bow Thruster: 1x SAC 900 / 900kgf
Desalination: 3x Water Maker System 240L/H
Air Conditioning: 2 sets of Marine Chilled Water System
Sewage: 1x Vacuum System (1x Operation, 1x Satndby Vacuum Pump)
Engine Make
Cummins
Number Engines
2
Fuel Type
Diesel
Max Speed
22 knots
Cruise Speed
18 knots
Fuel
35,500 Litres
Water
20,000 Litres
Accommodation
Crew: 12 persons
Passenger: 80 persons
Overnight Passenger: 22 persons
FACILITIES
2x Forward Main Deck Guest Suite-2 people (approx. 20 sqm)
5x Main deck guest rooms - 2 people (approx. 12 sq. M)
4x Upper deck guest rooms- 2 people (approx. 15 sq m)
Independent Controlled Air-conditioning System
Large Modern Design Saloon
Entertainment System - TV in guest, dinning, saloon and senior crew
Top/Sun deck bar with Jacuzzi bath size 2.0 x 2.0 m
2x Bauer 500 l/min Compressor (High pressure)
1x 15kW Nitrox membrane system (Low pressure)
14x Air receiver tanks

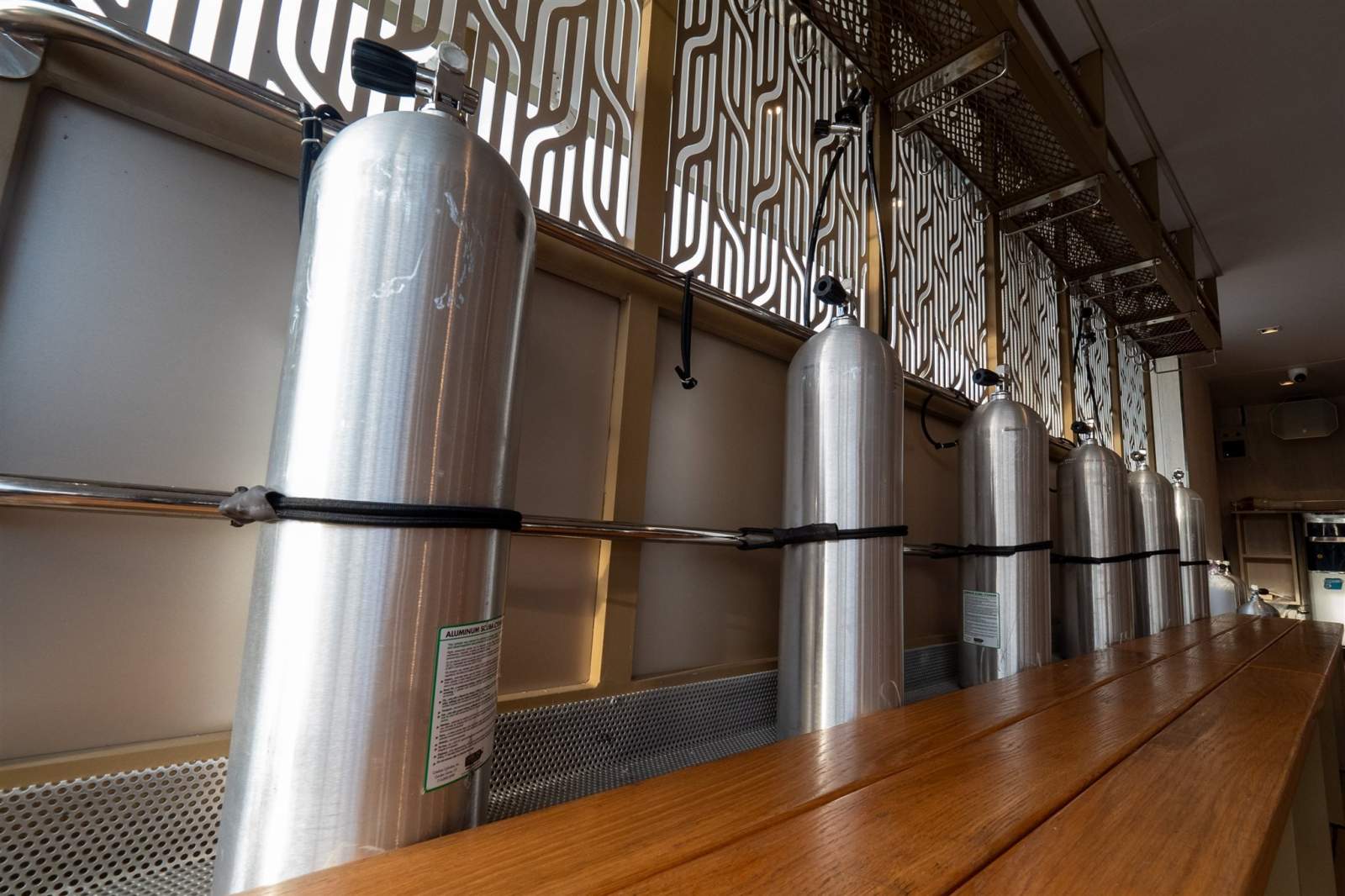

30x 12L and 10x 15L Aluminium Scuba tanks
30 sets closed circuit rebreather
24 Large dive Camera rise tanks on Dive deck area
Multiple rinse area on Aft swim platform
Passenger: 80 persons
Overnight Passenger: 22 persons
FACILITIES
2x Forward Main Deck Guest Suite-2 people (approx. 20 sqm)
5x Main deck guest rooms - 2 people (approx. 12 sq. M)
4x Upper deck guest rooms- 2 people (approx. 15 sq m)
Independent Controlled Air-conditioning System
Large Modern Design Saloon
Entertainment System - TV in guest, dinning, saloon and senior crew
Top/Sun deck bar with Jacuzzi bath size 2.0 x 2.0 m
2x Bauer 500 l/min Compressor (High pressure)
1x 15kW Nitrox membrane system (Low pressure)
14x Air receiver tanks
30x 12L and 10x 15L Aluminium Scuba tanks
30 sets closed circuit rebreather
24 Large dive Camera rise tanks on Dive deck area
Multiple rinse area on Aft swim platform
Safety Gear
Emergency Oxygen Kits
First Aid Kits
Life vest
2x SOLAS B Life raft 35 persons
Lifebuoys
2x 5m Dinghy boats with 60hp Outboard Engine
1x RIB with 40hp outboard engine
CCTV Cameras (Display in wheelhouse) - 16 cameras
1x EPIRB
1x Command Intercom
1x PA System Ship Wide
Fire detection System
Firefighting Equipment (Fixed & Portable)
First Aid Kits
Life vest
2x SOLAS B Life raft 35 persons
Lifebuoys
2x 5m Dinghy boats with 60hp Outboard Engine
1x RIB with 40hp outboard engine
CCTV Cameras (Display in wheelhouse) - 16 cameras
1x EPIRB
1x Command Intercom
1x PA System Ship Wide
Fire detection System
Firefighting Equipment (Fixed & Portable)
Electronics / Navigation
1x Furuno Open Array Radar
1x Satellite Compass
1x Weather Fax
1x AIS Receiver
2x Fixed VHF Radio
2x Portable VHF Radio
1x Anemometer
3x multi-function display (15")
1x Autopilot
1x HF SSB GMDSS Radio
1x Navtex
1x Echo Sounder
1x Fixed Satellite Phone
1x Cellular Broadband Ship wide System
1x Global Positioning System Compass
1x Terrestrial TV Antenna
1x Satellite Compass
1x Weather Fax
1x AIS Receiver
2x Fixed VHF Radio
2x Portable VHF Radio
1x Anemometer
3x multi-function display (15")
1x Autopilot
1x HF SSB GMDSS Radio
1x Navtex
1x Echo Sounder
1x Fixed Satellite Phone
1x Cellular Broadband Ship wide System
1x Global Positioning System Compass
1x Terrestrial TV Antenna
Remarks
Year of Completion: 2023
Hull: Aluminum
Superstructure: Aluminum
Gray Water: 200 Litres
Black Water: 1000 Litres
CLASSIFICATION
Lloyd Register (LR)
Structure Notation: +100A1, SSC, Workboat, G3, Dive Support Vessel
Hull: Aluminum
Superstructure: Aluminum
Gray Water: 200 Litres
Black Water: 1000 Litres
CLASSIFICATION
Lloyd Register (LR)
Structure Notation: +100A1, SSC, Workboat, G3, Dive Support Vessel
