Assegai 54 Flybridge Cruiser
Currency
Length
54' 2" - 16.51m
Vessel Location
Freemantle
Launch Year
1994
Hull Material
Composite Cedar strip plank epoxy
Description: Assegai 54 Flybridge Cruiser
Seven Star Marine Sales in conjunction with Jim Stuart Marine are proud, for the first time in more than 20 years, to present "Azura"to the market. From the design board of Legendary Designer/Builder Barry Martin, like all Assegais she is built in Strip Cedar, commonly refferred to as the West System, with an amazingly strong Epoxy Glass Laminate inside and out.
The construction method makes for a Lighter, Stronger, Stiffer Build and with Barry's expertise in design and construction their track record stands alone and has easily stood the test of time, while many are winding in their lines and heading for home like all Assegais "Azura" just keeps on fishing with her unmatched ride, speed and stability in the worst of conditions.
Azura was originally built in 2B Survey and sucessfully fished the east coast before heading around the bottom to WA and has been in the same private ownership since. Azura has been a much loved and cared for Game Fisher and Family Cruiser. It is an absolute pleasure to represent a boat whose owner has shown a "no expence spared" attitude in the care, upgrades, upkeep and maintenance of "Azura". In return for that committment "Azura" has made many far flung return trips to Exmouth and beyond and never required assistance, the boat is additionally loaded with spares and parts, and with her large fuel capacity and watermaking abilities can be self-sufficient for extended remote stays, this says so much about the boat and the owner.
The committment to upgrades is rarely seen, including but not limited to,

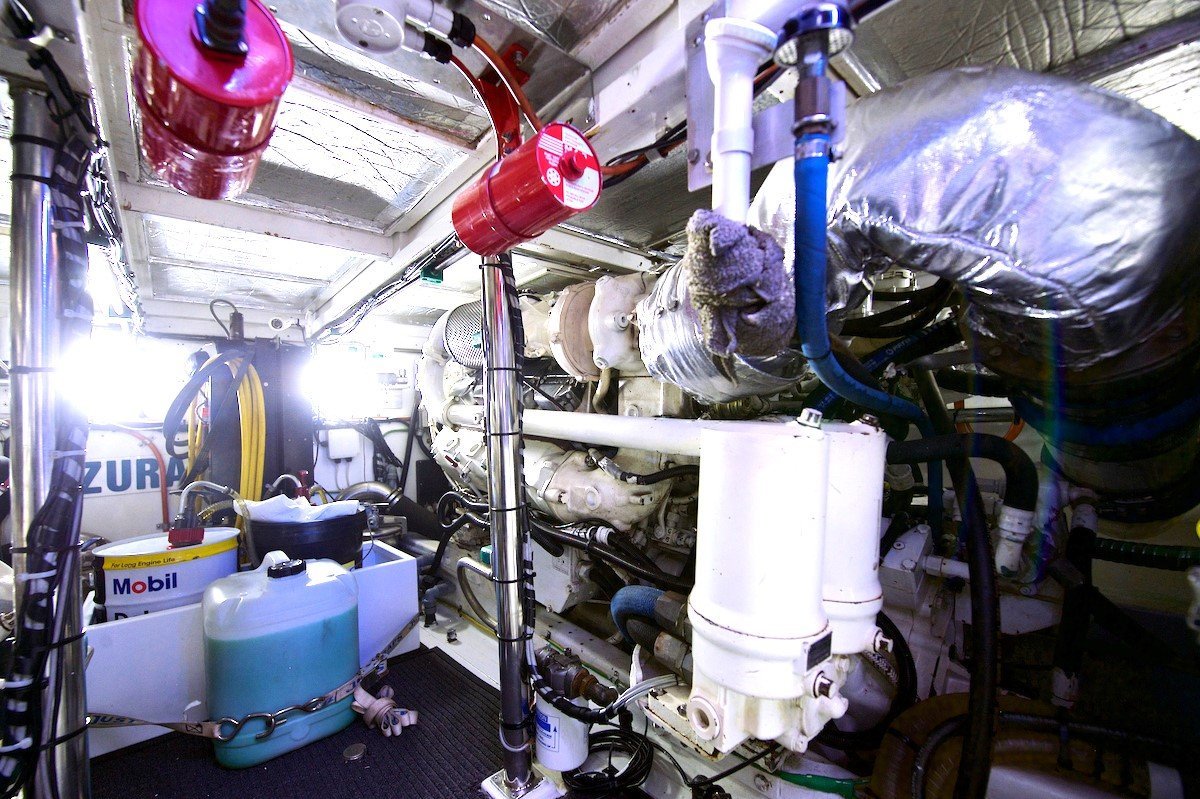

*** Full Main Engine Replacement in 2006 with V8 MAN Marine Diesels, Model Number 2848LE 423, developing 900hp or 671 KW Each
*** New 17 KVA Genset 2006
*** New 13.5KVA Genset 2020 (Azura has 2 Gensets)
*** Full 2 Pack Respray
*** Upgraded Electronics Throughout
*** Remove and Rebuild Marine Gyro
*** Lofrans Project 2000 Anchor Winch
*** Powerful Stern and Bow Thruster
*** Replacement of Electronic Engine Controls, EC 300's, Flybridge and Tower have both Forward and Rear Facing Controls
The list goes on.
Performance ranges from pleasant displacement speed cruising at 6 - 8 knots, planning flat at approxiametely 14knots to cruising at 20 knots at 1750 RPM fully loaded thru to WOT at 2200 RPM of 28-30 knots depending on trim.
"Azura" carries approx 4800 litres of fuel in 4 Centreline Intergrated GRP Tanks offering a cruise range in excess of 500 Nautical Miles at 20 knots with approx 20% in Reserve.
Fishing/Cruising/Comfort and Performance were clearly in the design brief and all have been extensively catered for.
FISHING
Large Tower With Controls and Electronics
Large Self Draining Cockpit
Large Transom Door
Ample Gear Storage
Central Rigging or Bait Table
Game Chair
Rupp Outriggers
Cockpit Live Bait Well
Multiple Rod Holders
Multiple Rear Facing Electronic Engine Controls, Including Powerful Bow and Stern Thruster Controls
Large Cockpit Fridge/Freezer Space
Internal Refrigeration
Electric Teaser Reels Fitted in Flybridge
Proven Fish Raiser
Multiple GameX Exmouth Game Fishing Titles
Long Range
Modern Electronics
Speed and Manouverability
Modern Internal Comforts For Extended Trips
Proven Hull Design And Build
CRUISING
Excellent Range
Comfortable Ride Motion at Speed, At Slow Cruise or at Anchor
Large Well Equipped Galley With Updated Modern Appliances
Large Lounge Dining Area
Large Refrigeration Capacities
Large Foredeck/Cockpit for Entertaining or Sunbathing
Master ( Private Ensuite) and 2 Guest Cabin Layout Accommodating 7 Plus Lounge Options
Airconditioned Throughout
Sewerage Treatment System for Sensitive Locations
Watermaker for Extended Stays
Foredeck Crane With Modern Tender and 4 Stroke Outboard Motor For Transfers or Exploring.
Duckboard For Swimming
Modern Electronics
Speed and Manouverability
Modern Internal Comforts For Extended Trips
Proven Hull Design And Build
Price includes delivery back to the East Coast, what better way to learn everything you need to know about your new boat than to spend part or all of the trip accompanying the experienced Owner.
Seven Star Marine Sales in conjunction with Jim Stuart Marine are proud, for the first time in more than 20 years, to present "Azura"to the market. From the design board of Legendary Designer/Builder Barry Martin, like all Assegais she is built in Strip Cedar, commonly refferred to as the West System, with an amazingly strong Epoxy Glass Laminate inside and out.
The construction method makes for a Lighter, Stronger, Stiffer Build and with Barry's expertise in design and construction their track record stands alone and has easily stood the test of time, while many are winding in their lines and heading for home like all Assegais "Azura" just keeps on fishing with her unmatched ride, speed and stability in the worst of conditions.
Azura was originally built in 2B Survey and sucessfully fished the east coast before heading around the bottom to WA and has been in the same private ownership since. Azura has been a much loved and cared for Game Fisher and Family Cruiser. It is an absolute pleasure to represent a boat whose owner has shown a "no expence spared" attitude in the care, upgrades, upkeep and maintenance of "Azura". In return for that committment "Azura" has made many far flung return trips to Exmouth and beyond and never required assistance, the boat is additionally loaded with spares and parts, and with her large fuel capacity and watermaking abilities can be self-sufficient for extended remote stays, this says so much about the boat and the owner.
The committment to upgrades is rarely seen, including but not limited to,
*** Full Main Engine Replacement in 2006 with V8 MAN Marine Diesels, Model Number 2848LE 423, developing 900hp or 671 KW Each
*** New 17 KVA Genset 2006
*** New 13.5KVA Genset 2020 (Azura has 2 Gensets)
*** Full 2 Pack Respray
*** Upgraded Electronics Throughout
*** Remove and Rebuild Marine Gyro
*** Lofrans Project 2000 Anchor Winch
*** Powerful Stern and Bow Thruster
*** Replacement of Electronic Engine Controls, EC 300's, Flybridge and Tower have both Forward and Rear Facing Controls
The list goes on.
Performance ranges from pleasant displacement speed cruising at 6 - 8 knots, planning flat at approxiametely 14knots to cruising at 20 knots at 1750 RPM fully loaded thru to WOT at 2200 RPM of 28-30 knots depending on trim.
"Azura" carries approx 4800 litres of fuel in 4 Centreline Intergrated GRP Tanks offering a cruise range in excess of 500 Nautical Miles at 20 knots with approx 20% in Reserve.
Fishing/Cruising/Comfort and Performance were clearly in the design brief and all have been extensively catered for.
FISHING
Large Tower With Controls and Electronics
Large Self Draining Cockpit
Large Transom Door
Ample Gear Storage
Central Rigging or Bait Table
Game Chair
Rupp Outriggers
Cockpit Live Bait Well
Multiple Rod Holders
Multiple Rear Facing Electronic Engine Controls, Including Powerful Bow and Stern Thruster Controls
Large Cockpit Fridge/Freezer Space
Internal Refrigeration
Electric Teaser Reels Fitted in Flybridge
Proven Fish Raiser
Multiple GameX Exmouth Game Fishing Titles
Long Range
Modern Electronics
Speed and Manouverability
Modern Internal Comforts For Extended Trips
Proven Hull Design And Build
CRUISING
Excellent Range
Comfortable Ride Motion at Speed, At Slow Cruise or at Anchor
Large Well Equipped Galley With Updated Modern Appliances
Large Lounge Dining Area
Large Refrigeration Capacities
Large Foredeck/Cockpit for Entertaining or Sunbathing
Master ( Private Ensuite) and 2 Guest Cabin Layout Accommodating 7 Plus Lounge Options
Airconditioned Throughout
Sewerage Treatment System for Sensitive Locations
Watermaker for Extended Stays
Foredeck Crane With Modern Tender and 4 Stroke Outboard Motor For Transfers or Exploring.
Duckboard For Swimming
Modern Electronics
Speed and Manouverability
Modern Internal Comforts For Extended Trips
Proven Hull Design And Build
Price includes delivery back to the East Coast, what better way to learn everything you need to know about your new boat than to spend part or all of the trip accompanying the experienced Owner.
Price
AU $1,175,000
Vessel Name
AZURA
Launch Year
1994
Length
54' 2" - 16.51m
Beam
16.12m
Draft
1.4m
Displacement
28 Tonnes Fully Loaded
Vessel Location
Freemantle
Region
Western Australia
Use
Off-shore Fishing
Designer
Barry Martin
Builder
Assegai Gold Coast
Hull Material
Composite Cedar strip plank epoxy
Decks Material
Fibreglass
Engine
New In 2006,2 x V8 MAN Marine Diesels, Model D2848LE423's, Each Developing 900
Engine Make
MAN
Number Engines
2
Horsepower
900 hp or 671 KW Each
Fuel Type
Diesel
Engine Hours
Approx 4500 hours at time of listing
Fuel Consumption
Exceptional Slow Cruise Speed Economy, 20 Knot Cruise 180 LPH Fully Loaded @1750 RPM
Max Speed
28 - 30 Knots
Cruise Speed
20 Knots
Propulsion
70mm Shafts, 2 x 800mm 5 Bladed Props, includes spare set. Dripless Shaft Seals
Thrusters
Stern and Bow
Genset
2 Onan Gensets, 1 x 17.5KVA, 1 x 13.5 KVA
Fuel
4 Centreline Intergrated Tanks From Forward To Stern of 1030l, 1080l, 1500l, 1200l for Total 4800l
Water
1000 l, plus
Dinghy
Quintrex Explorer 3.9, Fishing Graphics, Electric Deck Crane for Easy Handling From Foredeck
Outboard
30 HP Honda 4 Stroke
Covers
Enclosed Flybridge, with Hardtop
Accommodation
Master Forward with Ensuite, Stbd Guest Cabin including a Double and Single. Pt Guest Cabin 2 Singles, Lounge Options 7 plus up to 3
Cabins
3 Plus
Berths
7 plus
Shower
2 Heads With Showers, Deck Shower and Sink
Toilet
2 Heads With Showers, Electrasan Sewerage Treatment System
Entertainment
Tv's, DVD, Fusion Stereo
Air-Con
Yes
Galley
Large Galley Up, Socially Inclusive, Large Bench Area, Stainless Steel Sink with Hot and Cold Water, Siemens Electric, Gas Cooktop, Oven, Neif Convection/Microwave OvenRefrigeration, all Easily Accessible, Coffee Machine, Ample Storage.
Refrigeration
2 Large Deck Fridge/Freezers, 2 x Inbuilt Galley Refrigerators, Hoshizaki Ice Maker
Freezer
Cockpit and Galley Options
Stove
Siemens LPG, Siemens Electric.
Water-Maker
Sea Recovery Watermaker, 1800LPD
Hot Water
Electric
Ground Tackle
Lofrans Project 2000 Anchore Winch, Delta SS Plough Anchor 45kg, Delta Galvanised Plough Anchor 45kg.
10mm Shortlink Chain to Suit approx 85m, 125m 32mm Platted Anchor Rope.
10mm Shortlink Chain to Suit approx 85m, 125m 32mm Platted Anchor Rope.
Safety Gear
Extensive Mechanical and Electric Bilge Pump Systems, In Test Eights Person Liferaft. Lifebouys, Solas Coastal Jackets With Lights And Whistles, Flares, EPIRB, Satellite Phone, Galley Gas Detector, Engine Space Fire Smothering System,
Bilge Pumps
Extensive Mechanical and Electric Bilge Pump Systems, In Test Eights Person Liferaft. Lifebouys, Sol
Life Raft
8 Person In Test.
Fire Protection
Hand Held and Fixed
Electrics
240v Shorepower, RCD's, Reversed Polarity Switching/Detection. 1 x 17.5 KVA Genset, 1 x 13.5 KVA Genset, Victron Battery Charger 24v - 80 AMPS, Victron Battery Charger 24v - 50 AMPS, Dolphin Battery Charger 24v - 80 AMPS. 300mm AC Engineroom Extractor Fans, House, Generator and Start Batteries
Electronics / Navigation
Extensive, Furuno, Simrad Suite, Sounder/Plotters GPS's, Radar, Sounders, Sonar, FLIR, HF, VHF, AIS, Autopilot. Chain Counter, Rudder Angle Indicator, Searchlight, Much is Repeated Across Both Staions,
Deck Gear
Tender, Crane, Tender Cradle, Large Polished TimberCockpit Table, Large Fibreglass Cockpit Table, Bait/Rig Preparation Area, Game Chair, Swim Platform
Remarks
Azura is Believed to be the Only Assegai Currently on the Market From a Very Limited Number Of Vessels From The Stable. The Reputation, Performance and Handling is Legendary and to find a Lovingly Cared For, Upgraded and Maintained one Presents a Rare Opportunity for an Astute Knowledgable Buyer to act in Securing her now.
A New Replacenment Would be 3 - 5 Years Away And Would Be in Excess Of $5 Million, Depending on Chosen Options, Azura is Available Now in WA or Delivered to The East Coast.
A New Replacenment Would be 3 - 5 Years Away And Would Be in Excess Of $5 Million, Depending on Chosen Options, Azura is Available Now in WA or Delivered to The East Coast.
