Kadey Krogen 48 North Sea Widebody Offshore Passage Maker Just Listed

THIS BEAUTIFUL VESSEL IS NOW BACK ON THE MARKET!

A PERSONAL INSPECTION OF THIS BEAUTIFUL CRAFT, IS A MUST - BUT ONLY IF YOU ARE READY TO FALL IN LOVE WITH HER!!!

PICK UP THE PHONE AND MAKE AN APPOINTMENT TODAY!!!

AN EXCITING ADVENTURE AWAITS YOU!!!

If your thoughts ever drifted to "sailing off into the sunset" or just cruising off along our amazing coastline and you became serious about that adventure and wondered, what type of boat would I need to do that? then look no further!!!

Only those who are experiencied, or perhaps well read, will know the "Krogen" name, but for those who don't, let us introduce you to a proper little ship!

This rare offering is not only the right brand, with the right pedegree, beautifully built and comprehensively equipped, but also, it has been lovingly maintained and presents here in excellent condition.

The Kadey-Krogen brand was developed from the original design concepts of naval architect, the late James Kadey.

He drew the lines to embody his theory of a Pure Full Displacement hull, with individually engineered displacement to waterline length ratios for every model in the range.

The design combines a sharp entry, deep keel and a wineglass shaped transom to maximise stability and ride, while reducing rolling action in a swell.
By producing an easily-driven hull less power is needed, thus saving weight and allowing a larger fuel capacity for extended voyaging.

Kadey Krogen's are built in Taiwan, with solid 'glass below the waterline (reinforced with Kevlar and Knytex) using vinylester resins for strength and durability, with more than 2000kg of lead ballast, encapsulated in the keel for stability.

At the transom a fibreglass boarding platform leads to a substantial central gate into the covered cockpit. High bulwark sides give a safe feeling and a wide side deck to starboard, leads to the pilothouse.

The asymmetric layout, allows for a larger saloon, positioned to the port side.

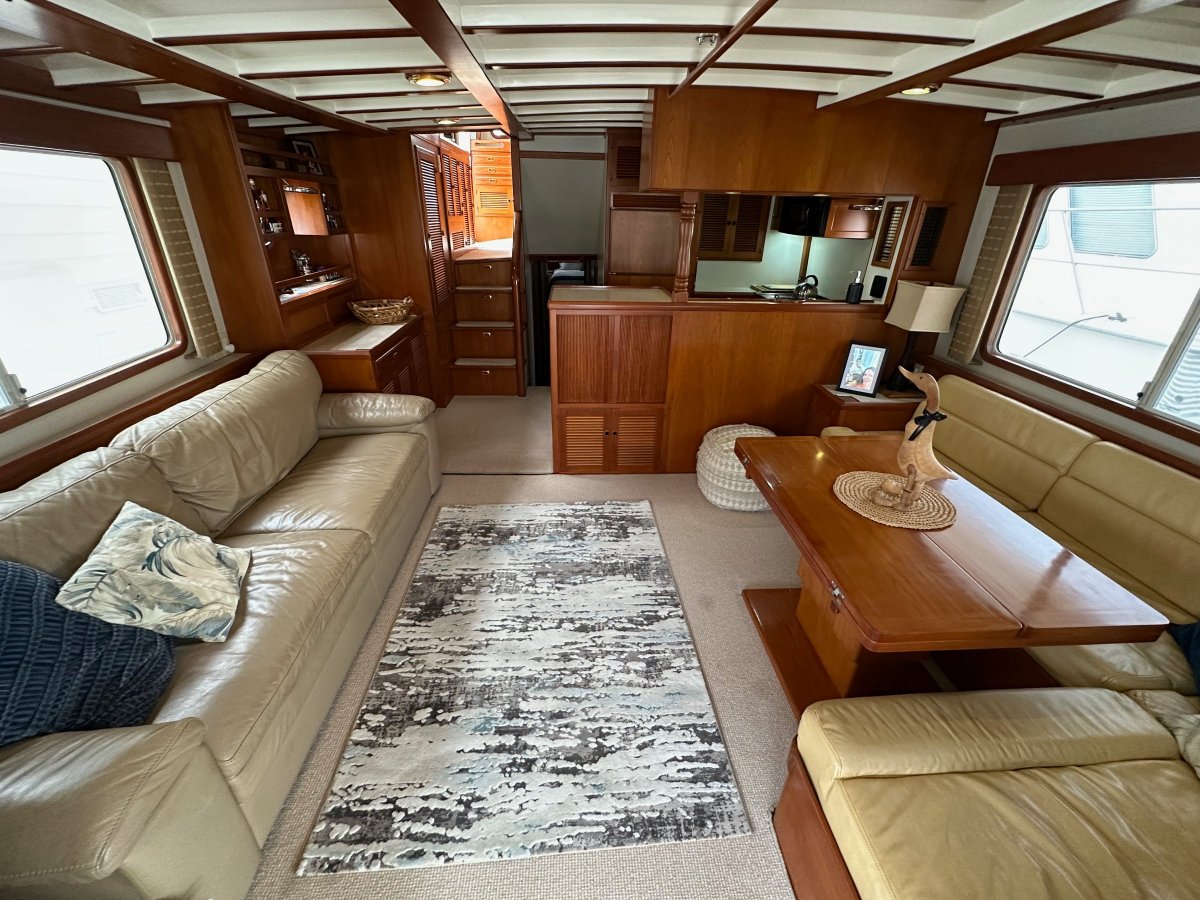

Heavy-duty weather proof doors, lead into the open saloon and galley, where traditional teak timber panelling and silky-soft leather upholstery, create a homely ambience with large windows either side, to allow light and the scenery inside.
An L-shaped lounge with an extendable teak table are joined by a new 3 seat lounge, to make room for eight or nine guests. Forward of the lounge, is a cabinet that houses a new (2024) Engalon TV and Bose sound system. The galley is on the same level and its open design, arranged in a U-shape to starboard, has all the comforts of home and a good workflow.

The master stateroom is located in the bow and nautical-themed teak lining follows the lines of the hull as it narrows forward. A queen island bed has a new innerspring mattress (in 2020) and is surrounded by a pair of seats and a wide walkway for easy access.

There is "his-and-her's" clothes storage - one hanging locker to portside and two lockers on the starboard side. There is a dedicated air-conditioner for both cabins, as well as the saloon and pilothouse. This cabin has its own separate en suite and there is a day head and shower for the second cabin and day guests. The guest cabin is set up as an office and is simply converted by the sofa pulling out to make up a queen sized bed.

The pilothouse is accessed from either the stairway from the galley or from the starboard side bulwark. Just as the saloon is the perfect space to relax, the pilothouse is the perfect place to travel. There is an Ultra-Leather covered Stidd helm chair and an L-shaped lounge at the rear overlooks the helm and out through the windows to give clear vision to the front and sides. The settee also converts to a double berth when needed. A long table at the lounge lends the space to eating or working out the coming activities, as the miles slip by. It's a roomy place for a full complement of crew, keeping everyone together to give the skipper some company in comfortable, protected surroundings.

The helm is well laid out and fully equipped. The wide dash has ample room to lay out charts and lots of drawers and lockers. The blue Stidd captain's chair is designed for comfortable hours at the helm and has ample adjustment.

There is a full compliment of Navigation Electronics and the 7.5ft² ABT TRAC Roll Stabilisers (fully serviced 2024) are a fantastic addition for coastal and oean cruising. VHF radio is common on most boats but the inclusion of HF communication marks the boat as something more serious.

The flybridge helm station is also well equiped and is a great place for long distance cruising, when the weather is good.

Entry to the engineroom is through a hatch in the saloon floor and like everything on the boat, it's clean and very functional.

The John Deere main engine revs to a maximum at 2,800rpm for a WOT speed of 9knts.
An economical speed of 9 knots can be acheived at only 2,000rpm. Idle speed of 700rpm is around 3.4kts and 1,500rpm equals about 6.5kts. Cruising at 1600rpm gives 7.5kts for a good balance between speed and fuel burn.

There is a 12kVa Northern Lights generator, four house batteries (new 2024) two start batteries, another for the bowthruster, four air-conditioner compressors, an Avco fire suppression system, a 3000W Xantrex inverter/Charger and a fuel polishing system.

The LTM Parker 500 Watermaker was upgraded in 2021 and now has the capability of producing 175lts/hr.

BASIC SPECIFICATIONS:

OVERALL LENGTH: - 16.15m (53ft)
WATERLINE LENGTH:- 13.87m (45.45ft)
MAX BEAM:  - 5.3m (17.3ft)
DRAFT: - 1.52m (5ft)
DISPLACEMENT:  - 25,605kg
BALLAST: - 2,000KG (encapsulated in the keel for additional stability)
FUEL CAPACITY: - 3,785lt
FRESH WATER CAPACITY: - 1500lt
HOLDING TANK CAPACITY: - 378 lts (Black Water)
ENGINE MAKE/MODEL:  - John Deere / 6068TFM DIESEL
RATED POWER:  - 225HP @ 2,600rpm
ENGINE DISPLACEMENT:  - 6.8lt
FUEL BURN: - 12.5LTS/HR = 7.5KNTS @ 1,600 RPM
ENGINE HOURS: - 5,400 (approx)
GENERATOR: - 12KW NORTHERN LIGHTS
GENERATOR HOURS: - 2,850 (approx)
PROPELLER: - 22in (63.5CM) FOUR BLADE BRONZE
GEARBOX MAKE/RATIO: - ZF / 3:1
ROLL STABILISERS: ABT TRAC HYDRAULIC FIN STABILISERS
BOW THRUSTER: - ABT TRAC 24V - 12HP (with dedicated batteries and charger)
WATERMAKER: - LTM 500 PARKER (175lt/hr - new 2020)

FUEL BURN / RANGE INFORMATION: (APPROXIMATE CALCULATIONS WITH AROUND 500LTS RESERVE)
( BASED ON FUEL TANK CAPACITY OF 3,785LTS )

6KNTS = 4.3LTS/HR - 4,600NM RANGE
7KNTS = 7.9LTS/HR - 3,000NM RANGE
7.5KNTS = 12.5LTS/HR - 2,400NM RANGE (CRUISING SPEED @ 1,600RPM)
8KNTS = 13.7LTS/HR - 2,300NM RANGE
9KNTS = 22LTS/HR - 1,600NM RANGE
(ABOVE CALCULATIONS DO NOT INCLUDE FUEL BURN FROM THE GENERATOR)

UPGRADE INFORMATION:

2019 New carpet throughout
2019 New 3 x seater leather couch
2019 New Brig Eagle E340 with 40hp Honda.
2019 model Honda CB125 Motor Bike (lifted ashore by tender davit, for transport at marinas and towns)
2019 Sign writing upgraded.
2019 Ice maker removed and custom drawers for glasses installed.
2019 Air Conditioners serviced.
10/2019 Installed Fusion Marine DVD/CD Stereo.
03/2024 Trac Stabilizers fully serviced
03/2024 Replaced Bimini - 2020 replaced flybridge & tender covers.
2020 New mattress for master.
2020 New motor fitted to Maxwell HWC-2200 12v anchor windless.
2020 Satellite phone installed.
2020 Cel-fi Telstra mobile signal booster fitted.
2021 New Garmin GPS.
2021 Water maker upgraded, able to double water made 175 lit per hr.
2021 Water Tank flow rate monitor installed.
2021 Shore power issue rectified, upgraded to 32amp.
2022 Star Link fitted (can be removed, if not wanted).
2022 Stabilizer arms (for when anchored) fitted, comes with 2 sets of flopper stoppers (2 different designs).
2023 Anchor & Chain re-galvanized.
2023 Nautical Structures MC800 sent to ACD (Gold Coast) to be refurbished and strengthened.
2023 Engine mounts replaced.
2023 Navigation lights replaced (Excl Anchor light)

SERVICE INFORMATION:

LAST ENGINE SERVICE: - NOVEMBER 2024 (Engine serviced every 200hrs)
LAST GENERATOR SERVICE: - NOVEMBER 2024 (Generator serviced every 100hrs)

LAST ANTIFOULING: - MARCH 2023
NEW SHAFT SEALS: - MARCH 2023
(All Service records will be available to genuine buyers)

(As this information has been provided by the vessel owner, please be sure to check with Classic Motor Yachts, to confirm current validity of this information. Classic Motor Yachts will not be held liable "in contract or otherwise" for any loss resulting from the inaccuracy of any information contained in this advertisement. Also, it is important to ensure the safety equipment requirements in your jurisdiction are met prior to the vessel being used)
