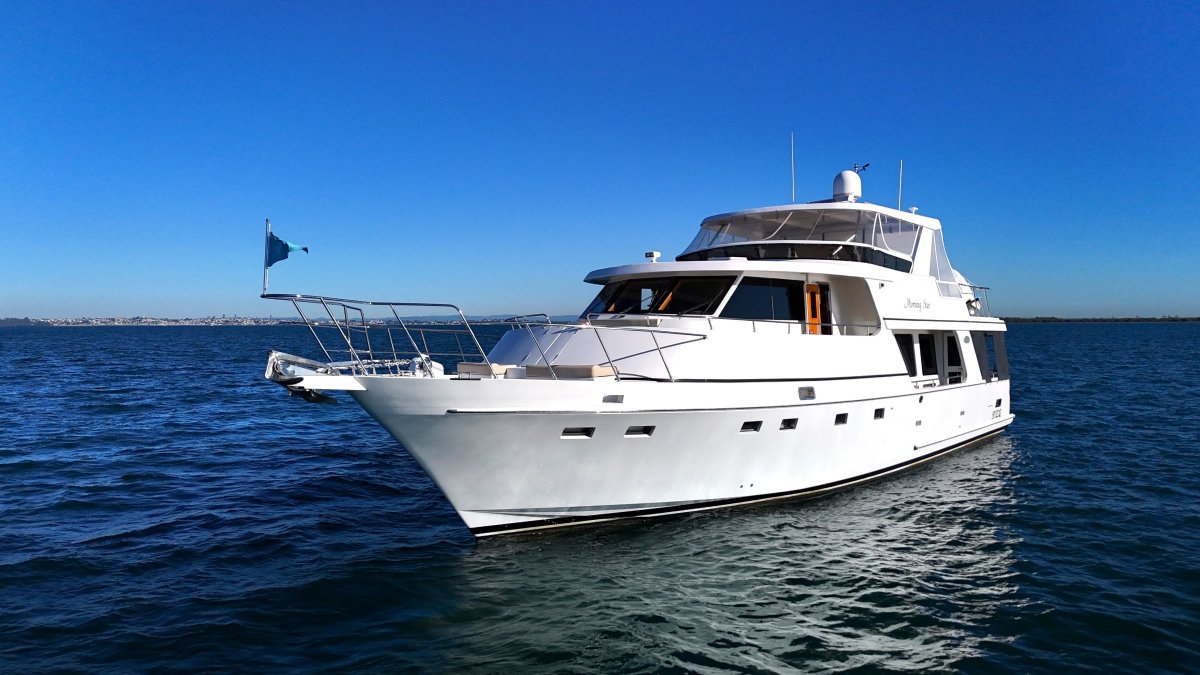

Symbol Symbol Pilot house Classic 63
Currency
Length
67' - 20.42m
Vessel Location
Manly (Brisbane) QLD
Launch Year
2009
Hull Material
Fibreglass/GRP Solid GRP to waterline / Corecell composite above W/L
Proudly presented by Jim Stuart Marine and Seven Star Marine sales Gold Coast
20.42 M LOA x 5.33 M BEAM x 1.45 M DRAFT. AUSTRALIAN DELIVERED TO THE GOLD COAST IN 2009
Running gear protected by full central keel
Full walk-around and shade with weather doors on aft end of side decks to keep out the breeze
Opening bulwark doors for easy on and off access, and berthing.
Portuguese bridge for weather protection when punching
Moderate V hull
Low hour vessel with all engines having just completed a complete engineers service including heat ex-changers and after coolers
Wesmar R S 700 Trim tab stabilisers. Electric over hydraulic with instatrim fins
Vessel fully air-conditioned
Large bow and stern thrusters
Intergrated and monitoring security system
Selmar ECR 150 litre per hour water maker
24 volt electric over hydraulic Brower 700 LB davit crane
Boat deck cover = mono Stamoid
BBQ by Kleenmaid
New radar tower fitted 2023
20.42 M LOA x 5.33 M BEAM x 1.45 M DRAFT. AUSTRALIAN DELIVERED TO THE GOLD COAST IN 2009
Running gear protected by full central keel
Full walk-around and shade with weather doors on aft end of side decks to keep out the breeze
Opening bulwark doors for easy on and off access, and berthing.
Portuguese bridge for weather protection when punching
Moderate V hull
Low hour vessel with all engines having just completed a complete engineers service including heat ex-changers and after coolers
Wesmar R S 700 Trim tab stabilisers. Electric over hydraulic with instatrim fins
Vessel fully air-conditioned
Large bow and stern thrusters
Intergrated and monitoring security system
Selmar ECR 150 litre per hour water maker
24 volt electric over hydraulic Brower 700 LB davit crane
Boat deck cover = mono Stamoid
BBQ by Kleenmaid
New radar tower fitted 2023
Price
AU $1,360,000
Vessel Name
MORNING STAR
Launch Year
2009
Length
67' - 20.42m
Beam
5.33 metres beam
Draft
1.45 metres draft. Gear protected by keel
Displacement
43 ton
Vessel Location
Manly (brisbane) Qld
Region
Queensland
Use
Family, Leisure, Cruising
Registration
SF 022 Q
Designer
Symbol Yachts Taiwan
Builder
Symbol Yachts Taiwan
Hull Material
Fibreglass/GRP Solid GRP to waterline / Corecell composite above W/L
Decks Material
GRP Composite combining Core-cell foam
Engine
2 x Volvo 575 HP @ 2500 rpm D 9 engines. Total Horse power = 1150 hp
Gear box, s = MG 5075 - A
Volvo electronic engine controls
Racor fuel filters 2 x 1000 for mains
Racor fuel filter 1 x 500 for genset
Plenty of engine room spares
Engine Make
Volvo
Number Engines
2
Horsepower
575 hp @ 2500 RPM
Fuel Type
Diesel
Engine Hours
Port = 729 hours
Engine Hours (2nd Engine)
Starboard = 724 hours
Fuel Consumption
9.3 knots @ 1300 rpm = 33 lph / 10 knots @ 1400 rpm = 44 lph / Top speed = 16 knots
Max Speed
16 knots
Cruise Speed
9 to 10 knots
Propulsion
4 blade props and shafts
Thrusters
Both bow and stern thrusters by Side Power 240 KG for the bow. 200 KG for the stern
Genset
16 KVA Kohler 50 HZ Recently serviced
Fuel
4570 litres in 3 tanks with inspections. Tanks recently opened and cleaned.
Water
945 litres in 2 x stainless tanks plus Water maker by Selmar 150 LPH
Dinghy
Grand Rigid Inflatable GRP bottom
Outboard
As new 40 HP 4 stroke Yanmar
Covers
Aft deck surrounded by 90% Breezeway cloth (as new)
Full set of mesh to windscreen plus solid covers to pilot house
Full set of mesh to windscreen plus solid covers to pilot house
Accommodation
MAGNIFICENT - is the word that comes to mind. Practical and beautiful in WALNUT burl - and other exotic timbers. Subtly blended with leather and stainless - and further enhanced with subdued lighting.
Full walk-around and shade and a proportional aft cockpit for entertaining. Generous side decks with easy access bulwark doors that make boarding and berthing easy. Timber laid decks on the aft deck for comfort (all in shade). Sensible and effective nonskid decks fore and the rest of the vessel's exterior traffic areas.
Top quality fabricated and polished stainless steel doors and quality door furniture are apparent - with two (yes two) hinged opening doors to the pilot house area. Very nice for quick access to the side decks for the crew and the skipper, not to mention the secure Portuguese bridge. This practical outdoor space is ideal for the remote docking feature.
The designers of this vessel have shown their experience in creating both internal and external areas that work and flow, and make it easy for people traffic going fore and aft. This is a boat that you don't have to fight to be on. To be truthful, it is a pleasure to be on MORNING STAR - if only from an ergonomic point of view. There is enough separation for privacy, and it achieves this feature without losing the ability to accommodate a large group for day boating and entertaining...
The Master Suite is full width amidships with no compromise on space anywhere, especially in the ensuite and wardrobe areas.
The second guest Queen size cabin also has an abundance of space and comfort, once again with good separation and privacy.
There is a third sleeping cabin with twin singles for crew or younger family members.
All these cabins are beautifully appointed with high quality solid timber and laminate fit-outs. No square corners to be found here, just hand built and consistent quality blended finishes. Come and see for yourself that the above is not just sales talk.
The galley is in the raised area of the vessel - which makes for easy access to the lower helm station and to the saloon as well. Once again, practical and well thought out.
The saloon is a joy to be in - as only an inspection will confirm. Comfortable and luxurious, with double opening doors to the aft deck.
Full walk-around and shade and a proportional aft cockpit for entertaining. Generous side decks with easy access bulwark doors that make boarding and berthing easy. Timber laid decks on the aft deck for comfort (all in shade). Sensible and effective nonskid decks fore and the rest of the vessel's exterior traffic areas.
Top quality fabricated and polished stainless steel doors and quality door furniture are apparent - with two (yes two) hinged opening doors to the pilot house area. Very nice for quick access to the side decks for the crew and the skipper, not to mention the secure Portuguese bridge. This practical outdoor space is ideal for the remote docking feature.
The designers of this vessel have shown their experience in creating both internal and external areas that work and flow, and make it easy for people traffic going fore and aft. This is a boat that you don't have to fight to be on. To be truthful, it is a pleasure to be on MORNING STAR - if only from an ergonomic point of view. There is enough separation for privacy, and it achieves this feature without losing the ability to accommodate a large group for day boating and entertaining...
The Master Suite is full width amidships with no compromise on space anywhere, especially in the ensuite and wardrobe areas.
The second guest Queen size cabin also has an abundance of space and comfort, once again with good separation and privacy.
There is a third sleeping cabin with twin singles for crew or younger family members.
All these cabins are beautifully appointed with high quality solid timber and laminate fit-outs. No square corners to be found here, just hand built and consistent quality blended finishes. Come and see for yourself that the above is not just sales talk.
The galley is in the raised area of the vessel - which makes for easy access to the lower helm station and to the saloon as well. Once again, practical and well thought out.
The saloon is a joy to be in - as only an inspection will confirm. Comfortable and luxurious, with double opening doors to the aft deck.
Cabins
3 x sleeping cabins, all oozing welcoming comfort
Berths
1 x King in masters cabin amidship. 1 x Queen in guest cabin. 2 x singles in 3rd sleeping cabin.
Shower
Fresh water system by Flojet 4325- 343A to all bathrooms plus duckboard shower
Toilet
Tecma toilet system to all 3 bathroom areas, connected to holding tank
Entertainment
TV by Samsung LCD x 2
LCD Viewsonic Screen NX1 940 W
CCTV CAM 100 Raymarine
CCTV CAM 50 Raymarine
Bose speakers and entertainment system
LCD Viewsonic Screen NX1 940 W
CCTV CAM 100 Raymarine
CCTV CAM 50 Raymarine
Bose speakers and entertainment system
Air-Con
Cruisair Condensing air con x 3, services sleeping cabins and saloon area
Galley
Beautifully appointed - as you would come to expect with quality appliances
U shaped in configuration for preparing meals under way (good sea going galley)
Dishwasher by Miele
Ice maker by U-Line
Cooktop by Kleenmaid
Rangehood by Qasair
Sink by Franke
Microwave by Kleenmaid
U shaped in configuration for preparing meals under way (good sea going galley)
Dishwasher by Miele
Ice maker by U-Line
Cooktop by Kleenmaid
Rangehood by Qasair
Sink by Franke
Microwave by Kleenmaid
Refrigeration
Refrigerator - Liebheer 3056
Refrigerator - Liebheer KIU 1640
Refigerator - Vitrifrigo CH5 1 AX
Refrigerator - Liebheer KIU 1640
Refigerator - Vitrifrigo CH5 1 AX
Water-Maker
Selmar 150 LPH
Hot Water
Water heater by Torrid
Ground Tackle
Muir 3500 24 volt Electric anchor winch
100 metres of 12 mil Stainless chain
1 x 90 LB Stainless CKR anchor
1 x 30 KG Bruce Anchor on chain and Rode
Deck and anchor wash down. Fresh water wash on fore-deck
Chain counter on both helm stations
100 metres of 12 mil Stainless chain
1 x 90 LB Stainless CKR anchor
1 x 30 KG Bruce Anchor on chain and Rode
Deck and anchor wash down. Fresh water wash on fore-deck
Chain counter on both helm stations
Safety Gear
To comply with coastal
Bilge Pumps
1 x Rule 24 volt 3700 GPH / 1 x Rule 2000 GPH / 1 x Bosworth bilge pump M-5-V
Life Jackets
16 x PFD
Fire Protection
Auto Fire supresant system by Fire Boy MAZ-1000 plus ample fire extinguishers
Electrics
240 volt
24 volt
12 volt
2 x Batteries = AGM x 120 amp hour
10 x Batteries = AGM x 200 amp hour
24 volt
12 volt
2 x Batteries = AGM x 120 amp hour
10 x Batteries = AGM x 200 amp hour
Electronics / Navigation
2 x 22 inch Garmin touch screens at main helm station = 8422 (new)
2 x 16 inch touch screens on flybridge (new)
New Garmin 72 mile Radar
KVH satelite dome
Auto pilot by Garmin fitted new in 2023
Depth sounder by Furuno DFF1 Airhorn
2 x 16 inch touch screens on flybridge (new)
New Garmin 72 mile Radar
KVH satelite dome
Auto pilot by Garmin fitted new in 2023
Depth sounder by Furuno DFF1 Airhorn
