NEW Grand Soleil 48 Race


Price
AU $995,000 Finance
Currency
Length
48' 11" - 14.90m
Use
Family, Cruising, Racing
Vessel Location
Newport NSW Insurance
Model Year
2019
Hull Material
Fibreglass/GRP Built in GRP Sandwich using PVC foam with biaxial & unidirectional reinforcement
Presentation

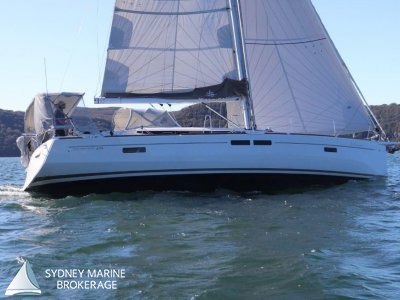

Introducing possibly the most stunning yacht yet to leave the Cantiere del Pardo yard.

This incredible design is the collaboration of three important teams: The technical department of Cantiere del Pardo, Nauta Yacht Design for the interiors and the deck layout and Marco Lostuzzi for the naval architecture.

Their goal was to produce an incredibly fast performance cruising yacht and to offer this both to the cruising customer and also the serious yacht racer.

The GS48 is available two different versions, the Race version and the Performance version.

This version is the Race version and this stunning yacht is priced including the following additions:

-Fixed Composite Bow Sprit
-Hydraulic opening Swim platform
-6 x Upgraded Harken Performa winches, ( 2x60.2 + 4x50.2)
-Racing Deck Gear package including Adjustable jib track, Colour coded Armare sheets and halyards in Dyneema, Black Magic blocks, gennaker and code 0
deck gear
-Upgraded 2.8m Race T-Bulb lead keel
-Safety rails in Dyneema
-Upgraded Race rigging including Aluminium Mast, Boom, Rod Rigging, Hydraulic Backstay Adjuster & racing running rigging
-Race Interior, (Furniture and floorboards in super lightweight sandwich construction)
-Twin Console station for cockpit plotters and H5000 displays
-B&G Triton Navigation Package including Auto Pilot, Zeus 2 GPS plotter
-Fusion Stereo entertainment system 750 series
-3 Blade Flex O Fold Propeller
-Cockpit floor LED lights for night racing
-B&G H5000 electronic package including: Hydra H5000 processor, compass sensor RC42N, 2 displays Graphic H5000 in std and Portside of the cockpit,
-Speed and depth wind std transducer, H5000 keyboard installed Portside in the instruments compartment/engine dashboard compartment, Pilot computer
-H5000 with external operator RAM T2
-B&G Zeus 2 7" touch screen Multi-Function colour display GPS

In true Grand Soleil style each vessel is customizable depending on the customers needs:

World Class Construction:

 First-class materials and techniques have been used for this stunning project. The main characteristic of the Grand Soleil 48 is that the owner can choose among different kinds of construction: the infusion of the Race version can be done either in epoxy resin and Fibreglass or in epoxy resin and carbon with four composite bulkheads. The Performance version is hand laminated and realised in vinylester and Fibreglass (the main bulkhead is made of composite). In both the versions the bulkheads are veneered to the hull, creating a unique single structure which can easily support the loads of the mast, the keel and the shrouds. In the Race version the frame is made of carbon unidirectional fibre). All the female moulds have been made by controlled models in order to obtain the highest precision. As far as the keel is concerned, it has a stainless steel blade with a lead bulb. In the Race version, the keel has a 2.8m draft: that guarantees considerable stability. The high draft rudder is in carbon in the Race version, while it has a steel axis and Fibreglass blade in the Performance version.

The deck from Performance to Race:

The deck plan is one of the most interesting features of the new Grand Soleil 48. It is indeed what distinguishes the Race version from the Performance version. The first one has six or eight winches on the deck - it comes with two aft winches to regulate the split backstay -, a hydraulic piston at bow to regulate the stay, a jib equipped with diagonal tracks and a dolphin striker 100% longer than the Performance version one, which gives a wider sail plan surface. The Performance version is equipped with four winches near the rudder and standard self-tacking jib that allows easy manoeuvring of the boat and a greater comfort even to the smallest crews. Simple technical solutions have been well integrated to the deck aesthetics. This excellent combination has allowed for a wider cockpit, a neat-design and comfortable deck, excellent performances and speed during the races, and very easy manoeuvring when cruising. As far as the external layout is concerned, the hull windows can also be removed which offers a completely "nude" version.

A Powerful and easily to handle Sail Plan:

The sail plan has been designed using VPP speed programs. The outcome is a powerful but easily handling sail plan. In addition to this, all the Controls run back to the cockpit. On the bow, the fixed dolphin striker has been designed to hoist both the gennaker and the Code 0, which can be easily raised and furled directly from the sail locker. The first three boats sold are the Race version. The first one has a square top main sail and PBO shrouds, while the other two are in full carbon. The mast, characterised by a double cross tree order with a 9/10 stay, can be in carbon or in aluminium.

Interior:

The spaces under the deck have a wide beam and a free board that give spacious and comfortable interiors with three cabins and two heads, both with separated shower rooms, a kitchen, saloon and the chart table. The natural lighting is fantastic, due to teh generous windows located on the hull and on the deck. All the interiors are made with high quality materials in accordance with Grand Soleil's unique style: in the Race version, the lightened interior save 30-40% of weight. As far as the Race version is concerned, thanks to the modular parts the boat becomes lighter and creates more space in order to stretch out the sails without damaging the furniture.

The Grand Soleil 48 Performance, or Race are in a category of their own, from build quality to Performance on the water this wonderful and exciting new design is a must see, for more information please contact us today.

Sydney Marine Brokerage is the exclusive Australian agent and distributor for G-Force Yachts, Grand Soleil Yachts, Sasga Yachts and Smuggler Marine. In addition to new yacht sales, the team at Sydney Marine Brokerage also manage a highly regarded and professional pre-owned brokerage business, selling second hand vessels. Sydney Marine Brokerage also runs a successful yacht maintenance division, providing its customers with monthly schedules and personalised training when using their boats.

Our head office is located on Sydney's beautiful Pittwater at the Royal Prince Alfred Yacht Club in Newport, we look forward to assisting you in your future boating endeavours.

*Images may contain some optional extras not included in this price, price may vary depending on freight and commissioning charges. The broker takes no responsibility for incorrect vessel specifications provided by vendors and acts only as the broker for any brokerage vessels.


Price
AU $995,000    Finance    Insurance
Boat Reference
NSB005r
Model Year
2019
Length
48' 11" - 14.90m
Beam
4.50m
Draft
2.80m
Displacement
10.5 Tonnes
Keel / Ballast
T-Bulb Race Keel (Stainless Steel Fin with Lead Bulb)
Vessel Location
Newport Nsw
Region
New South Wales
Designer
Cantiere Del Pardo, Nauta Yacht Design and Marco Lostuzzi
Builder
Cantiere Del Pardo
Hull Material
Fibreglass/GRP Built in GRP Sandwich using PVC foam with biaxial & unidirectional reinforcement
Decks Material
Laminated in sandwich with bi-axial and unidirectional glass cloth and infused with epoxy-vinylester resin
Engine Make
Volvo Penta
Number Engines
1
Horsepower
50
Fuel Type
Diesel
Fuel Consumption
3l /h
Max Speed
9 knots
Cruise Speed
8 knots
Propulsion
3 Blade Flex O Fold Propeller
Fuel
150
Water
250 L
Accommodation
Race Interior-(All furniture and floorboards in lightweight sandwich construction - no hanging cabinets)
Cabins
3
Berths
8
Shower
2
Toilet
2 x Manual Heads with holding tanks
Entertainment
Fusion Entertainment package 750 Series with CD-DVD player, USB and Bluetooth at chart table. Fusion speakers in Saloon and cockpit. System controllable from B&G Multi-Function display and from apple and android devices
Galley
L-Shaped to Port with white bench top
Refrigeration
90 lt Chest Fridge with Double horizontal opening hatches
Stove
2 Burner Gas Stove + Oven
Hot Water
Yes
Ground Tackle
20 kg Delta Anchor, 50m of chain, 6 Fenders with Grand Soleil Covers and 4 x Mooring lines
Safety Gear
In shore safety equipment provided
Bilge Pumps
1 x Manual 1 x Electric
Flares
8 x Lifejackets
Fire Protection
Yes
Electrics
Cockpit Floor LED lights
Extra AGM Battery for handling systems
3 AGM Exide 90 AH House Batteries
1 AGM Excide 70 AH Starter Battery
Interior and external LED lighting
12v and 240v sockets in all cabins
Electronics / Navigation
B & G H5000 electronics package including:
Hydra 5000 processor
Compass sensor RC42N
2 x Displays in Port and Starboard of cockpit
Speed, depth and wind transducer
H5000 Keyboard installed Portside in instruments/engine dashboard, compartment
H5000 Autopilot with external operator RAM T2
Mast / Rigging
Aluminium racing mast with 2 spreaders, aluminium racing boom, Rod Rigging, Hydraulic Backstay Adjuster and Rigid vang.
Furlex TD400 Furler
Kevlar Backstay
Safety Rails in Dyneema
Deck Gear
Racing Deck Gear Upgrade including:
6 x Harken Performa winches (2 x 60.2 STP and 4 x 50.2 STP), main sheet track system, recessed Jib track with adjuster, fully colour coded Armare sheets and halyards in Dyneema, Black Magic blocks, deck gear for Gennaker and Code 0
2 x Extra Mooring cleats midships
