Chamberlin Performance Cruising Catamaran 12.0
Currency
Length
39' 4" - 12.00m
Vessel Location
Townsville
Launch Year
2005
Hull Material
Composite Epoxy fibreglass, strip plank cedar hulls and decks. Foam sheet Epoxy elsewhere.
Beautiful performance catamaran - she has curves!
Montage is light weight, has easily driven narrow hulls, high bridge deck clearance and low sail plan for excellent stability. She's fast, safe and economical to run. She can sail at windspeed above 6 knots and cruises at 7.5 knots on two engines or 6 knots on one engine.
Sleeps upto eight people in two main cabins with large double and queen beds, two single berth quaterberths and the possibility to convert the saloon table into a double bed. She's more comfortable cruising with 4-6 people.
The sail wardrobe is either new or unused. Mainsail 2023, blade jib 2023, screecher 2024, storm jib unused, spinnaker barely used.
She was re-rigged in 2023 and most of her running rigging has been upgraded or replaced.

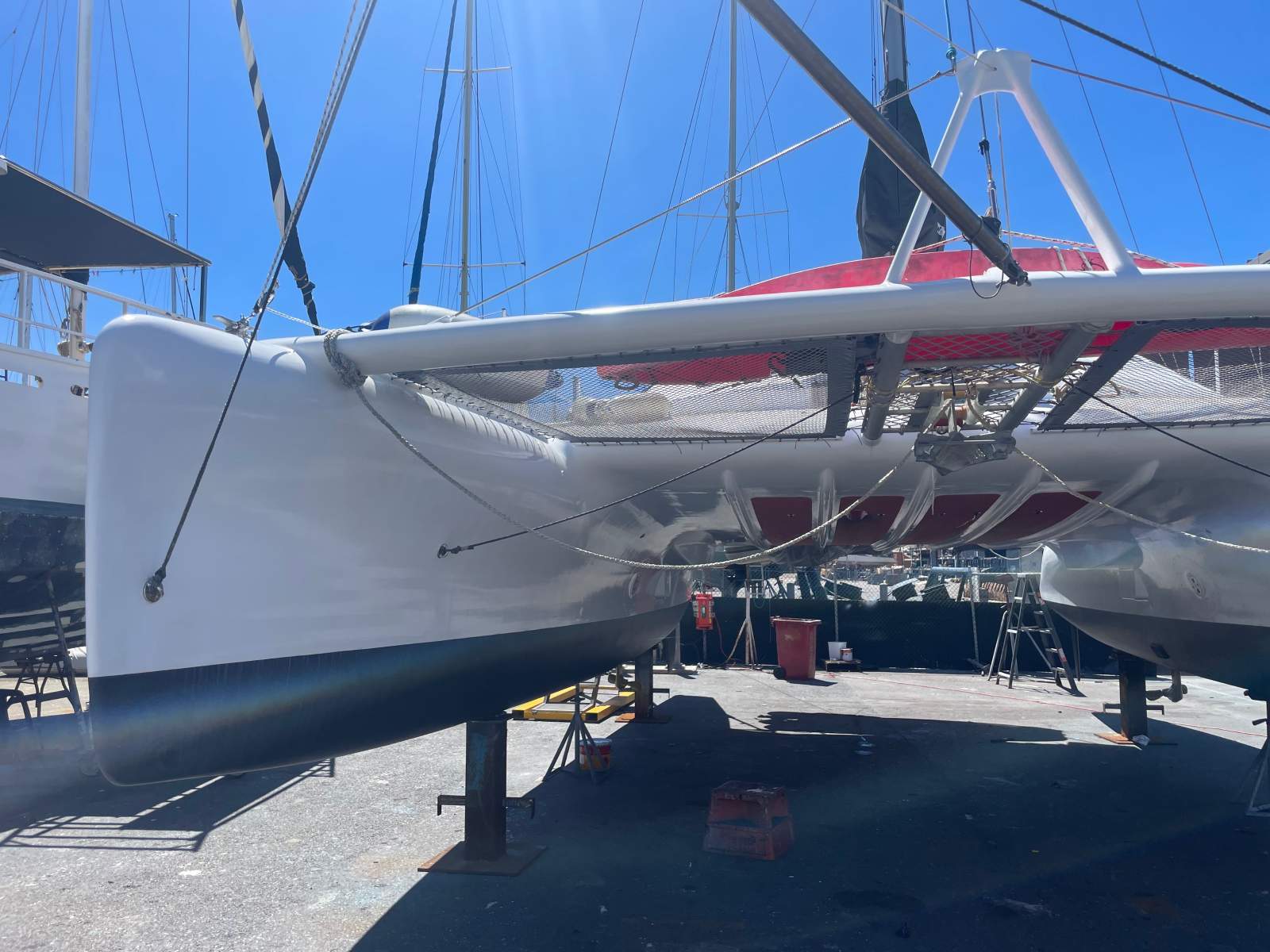

Full rub back anti-foul in April 2025 - ready for the winter cruising season!
The twin 21 HP Nanni diesel engines have been regularly serviced and come with a large spare inventory includeing spare starter motor. All hoses were replaced in 2024. New heat exchangers in 2021. Sail drive seals replaced in 2023.
Features a unique manual mainsheet dump control system (details and demonstration in the video). Never needed, but nice to have.
She is 12 metres long, 7m wide and draws only 0.9m with the daggerboards up.
Vessel located in Townsville.
Montage is light weight, has easily driven narrow hulls, high bridge deck clearance and low sail plan for excellent stability. She's fast, safe and economical to run. She can sail at windspeed above 6 knots and cruises at 7.5 knots on two engines or 6 knots on one engine.
Sleeps upto eight people in two main cabins with large double and queen beds, two single berth quaterberths and the possibility to convert the saloon table into a double bed. She's more comfortable cruising with 4-6 people.
The sail wardrobe is either new or unused. Mainsail 2023, blade jib 2023, screecher 2024, storm jib unused, spinnaker barely used.
She was re-rigged in 2023 and most of her running rigging has been upgraded or replaced.
Full rub back anti-foul in April 2025 - ready for the winter cruising season!
The twin 21 HP Nanni diesel engines have been regularly serviced and come with a large spare inventory includeing spare starter motor. All hoses were replaced in 2024. New heat exchangers in 2021. Sail drive seals replaced in 2023.
Features a unique manual mainsheet dump control system (details and demonstration in the video). Never needed, but nice to have.
She is 12 metres long, 7m wide and draws only 0.9m with the daggerboards up.
Vessel located in Townsville.
Price
AU $315,000
Vessel Name
Montage
Launch Year
2005
Length
39' 4" - 12.00m
Beam
6.95 M
Draft
0.9 M / 2.2 M (Daggerboards up/down)
Displacement
4.5 tons lightship
Keel / Ballast
Dagger boards
Vessel Location
Townsville
Region
Queensland
Use
Cruising
HIN
857641 AUS Reg.
Registration
857641
Rego Expiry
01/05/2026
Designer
Robin Chamberlin
Builder
Mike Walsh under the supervision of designer Robin Chamberlin
Hull Material
Composite Epoxy fibreglass, strip plank cedar hulls and decks. Foam sheet Epoxy elsewhere.
Decks Material
Epoxy over strip plank cedar. Foam epoxy cabin
Engine
Model 3.75 HE
Engine Make
Nanni
Number Engines
2
Horsepower
21
Fuel Type
Diesel
Engine Hours
1600
Engine Hours (2nd Engine)
1600
Fuel Consumption
2.4 l/hour
Max Speed
10 kts
Cruise Speed
7.5 kts two engines, 6 kts one engine
Propulsion
2 x SD10 Saildrives with folding two-blade slipstream, cast stainless steel propellers
Thrusters
No
Genset
No
Fuel
120l
Water
2 x 250 litres
Dinghy
3.4m Sirocco Rib, 2013
Outboard
9.9 HP Mercury Four-Stroke (2020)
Covers
Internal window sunshades. External window shades, insect netting for all windows and cabin door.
Accommodation
Six berths but can sleep eight with saloon table dropped.
Owners cabin, 175 x 200 cm (Between Queen and King size).
Guest cabin 135 x 200 cm double bed.
Two quarterberth singles 100 x 200 cm.
Saloon berth double with table dropped.
Owners cabin, 175 x 200 cm (Between Queen and King size).
Guest cabin 135 x 200 cm double bed.
Two quarterberth singles 100 x 200 cm.
Saloon berth double with table dropped.
Cabins
2
Berths
6
Shower
Shower in each bathroom and one in the cockpit
Toilet
2 electric, one with 80 litre blackwater storage
Entertainment
Four speaker stereo (currently not installed)
Air-Con
No
Galley
Galley up. Three burner gas hotplates and gas oven.

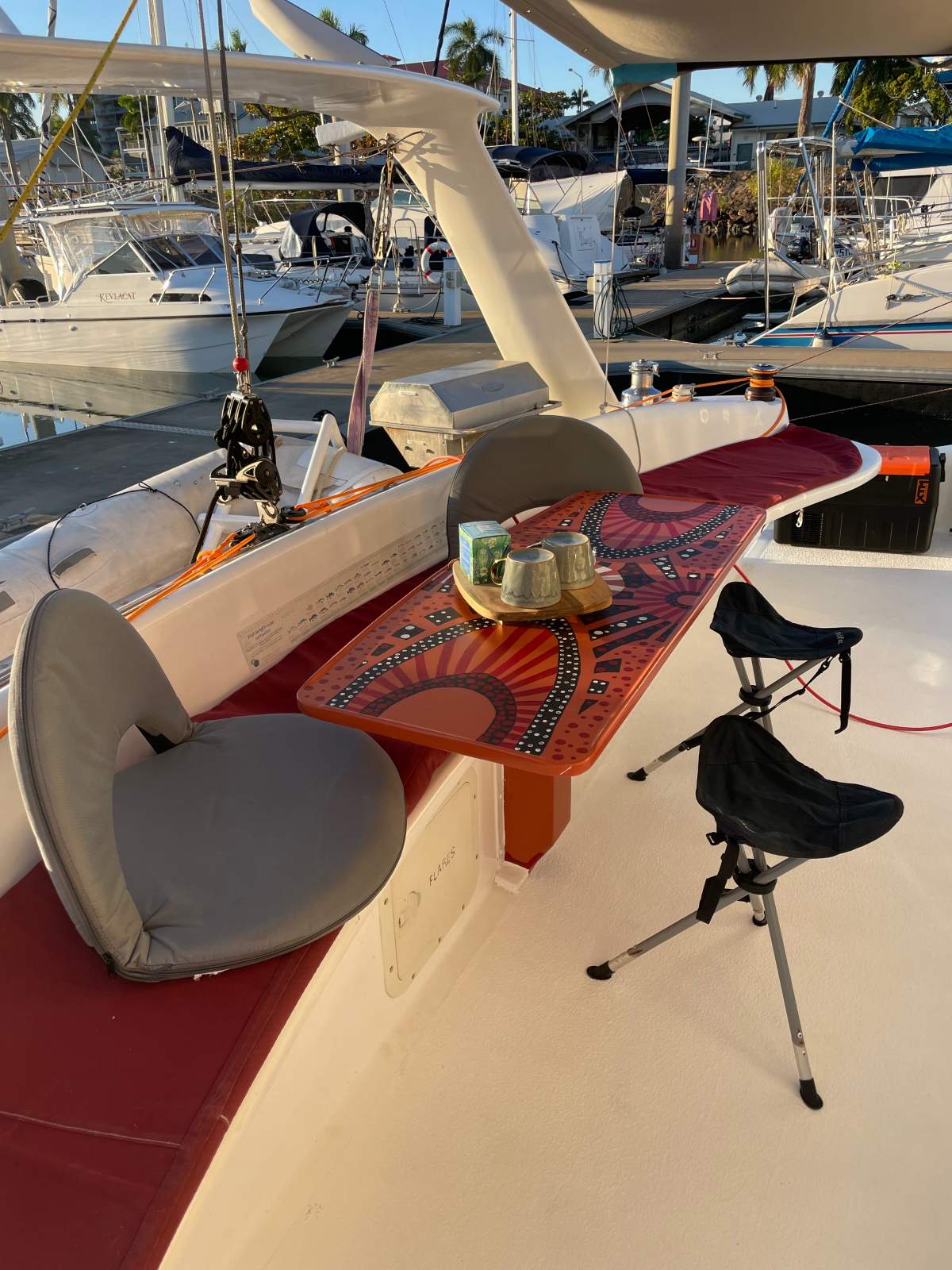

Stainless steel cookout BBQ in cockpit.
Stainless steel cookout BBQ in cockpit.
Refrigeration
New (2025) 153 litre Dometic RUC 5208 Fridge/freezer.
Freezer
Additional XTM 35 litre fridge/freezer (New 2025)
Stove
Yes
Water-Maker
Yes, but uninstalled. New guest toilet installed in that position. Model 'The Little Wonder 160
Hot Water
No
Ground Tackle
22KG Excel-Sarka (New in 2024) with 65m 8mm galvanised chain (new 2025) plus 40m nylon three strand rode. Spare anchor, large aluminium Danforth.
Maxwell RC8-8 Electric Anchor winch (New 2025).
Maxwell RC8-8 Electric Anchor winch (New 2025).
Safety Gear
Gas alarm, CO, Ex, O2, H2S

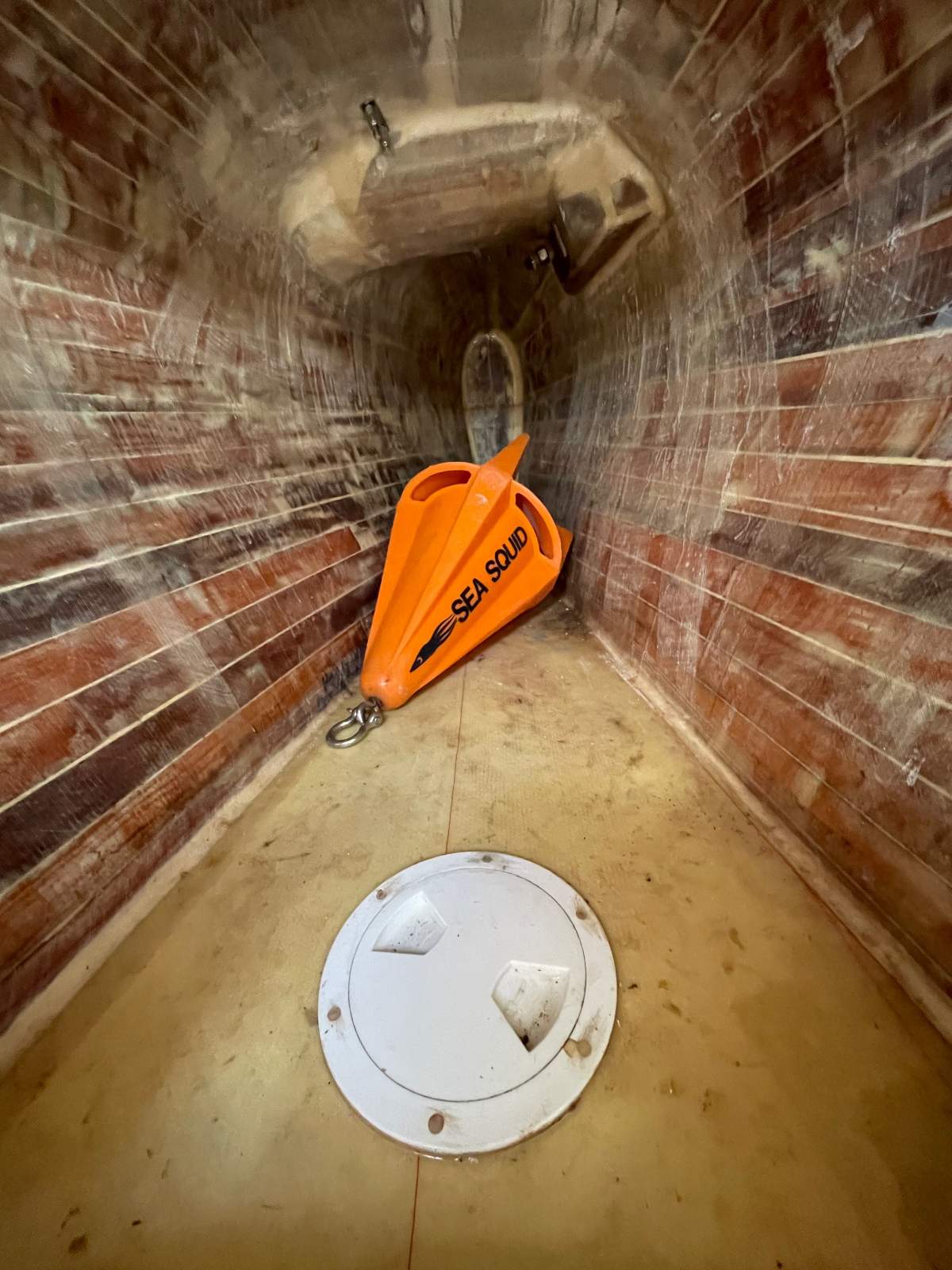

Sea Squid Drogue
Sirius Signal C-1002 SOS LED Distress Signal (replaces flares in inland waters some states)
Wooden bung set
Jacklines
Safety harness x 3
Dan buoy

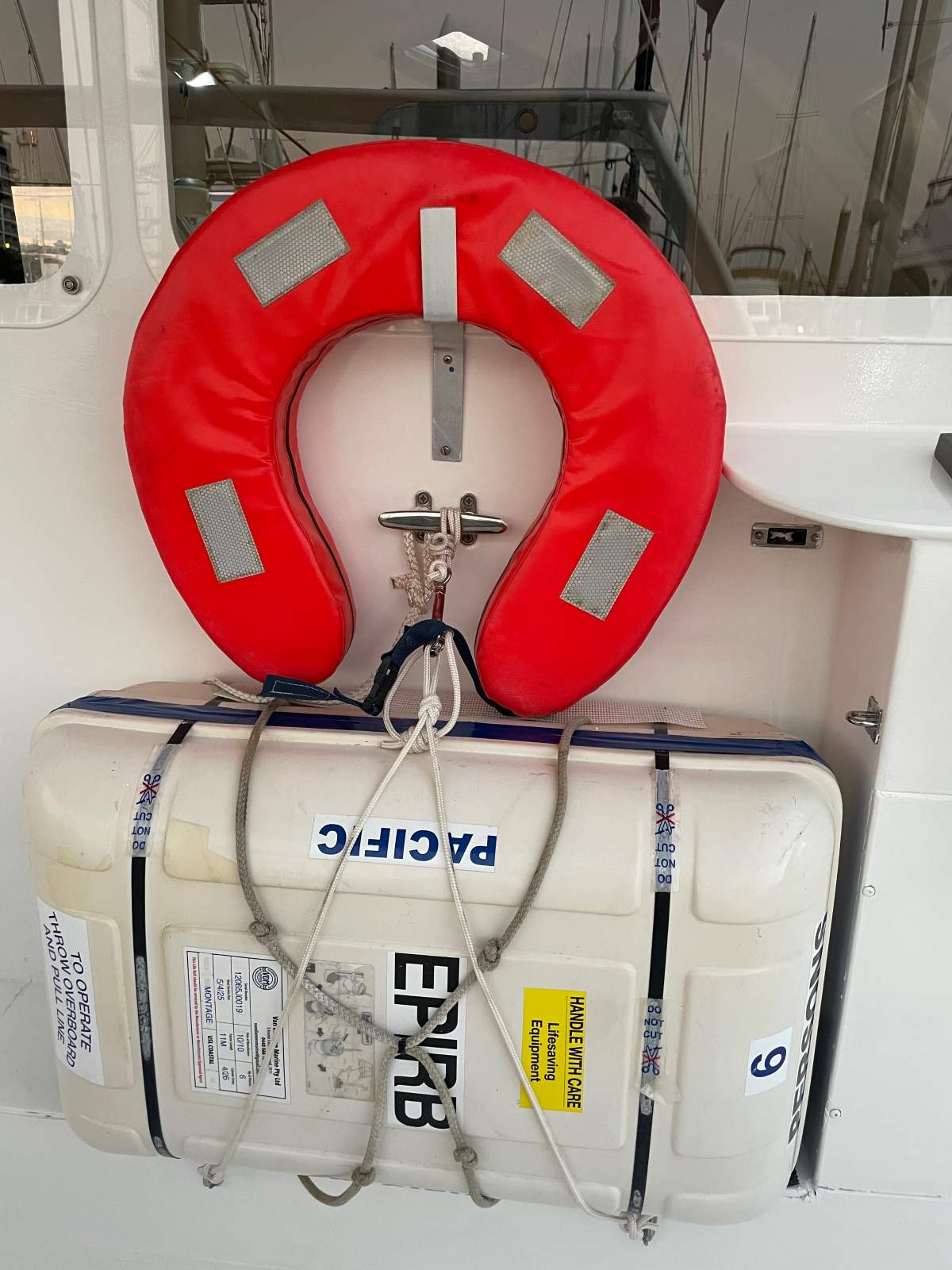

2 x Life rings
Sea Squid Drogue
Sirius Signal C-1002 SOS LED Distress Signal (replaces flares in inland waters some states)
Wooden bung set
Jacklines
Safety harness x 3
Dan buoy
2 x Life rings
Bilge Pumps
6
Life Raft
6-person
Epirb
Yes
Life Jackets
8
Flares
Yes
Fire Protection
2 x powder fire extinguishers in main cabin, fire blanket, automatic extinguisher in battery bay
Electrics
3 x Fullriver DC 120-12B AGM House batteries new in April 2025
2 x Fullriver DC 120-12B Start batteries (new 2024)
Total battery bank 600Ahr
2 x 200W and 2 x 50 W solar panels for 500W total
3000W 12V to 240V power inverter
30 A 240V to 12V shore power inverter
Maxwell RC8-8 Electric Anchor winch (New 2025). Remote and Cockpit switch.
2 x Fullriver DC 120-12B Start batteries (new 2024)
Total battery bank 600Ahr
2 x 200W and 2 x 50 W solar panels for 500W total
3000W 12V to 240V power inverter
30 A 240V to 12V shore power inverter
Maxwell RC8-8 Electric Anchor winch (New 2025). Remote and Cockpit switch.
Electronics / Navigation
B&G Depth and Log sensor
B&G WS320 Wind sensor
B&G Triton Display
Starlink internet connectivityRaymarine Autopilot
i-Com VHF radio
i-Com HF radio
AIS Em-Trak 5W Class B Rec/Transmit
Seiwa Chart Plotter
Furuno Radar (B&W display)
Cockpit mounts for iPad display - we normally run navionics boating app with AIS from waterproof covered iPad
B&G WS320 Wind sensor
B&G Triton Display
Starlink internet connectivityRaymarine Autopilot
i-Com VHF radio
i-Com HF radio
AIS Em-Trak 5W Class B Rec/Transmit
Seiwa Chart Plotter
Furuno Radar (B&W display)
Cockpit mounts for iPad display - we normally run navionics boating app with AIS from waterproof covered iPad
Sail Inventory
Mainsail: (New Sep 2023) 52 M2,9.65oz Pro Hybrid Fibrecon woven Spectra/dacron
Blade Jib: (New Sep 2023) 17 M2,9.65oz Pro Hybrid Fibrecon woven Spectra/dacron
Screecher: (New June 2024) 55 m2, Stormlite 210 woven Polyester 3.4 Oz. On furler.
Spinnaker: (Age unknown, looks hardly used) 100 m2
Storm Jib: Looks like never used
Blade Jib: (New Sep 2023) 17 M2,9.65oz Pro Hybrid Fibrecon woven Spectra/dacron
Screecher: (New June 2024) 55 m2, Stormlite 210 woven Polyester 3.4 Oz. On furler.
Spinnaker: (Age unknown, looks hardly used) 100 m2
Storm Jib: Looks like never used
Mast / Rigging
Aluminium mast and boom
Stainless steel rigging - complete re-rig August 2023
Stainless steel rigging - complete re-rig August 2023
Deck Gear
4 x Hutton stainless steel winches - Jib and Screecher
2 x Harken winches - mainsheet traveller (new 2024)
8 x Spinlock rope clutches (New 2023)
16:1 Harken Mainsheet
Manual mainsheet dump system - at both steering stations (See video for demo)
Fenders (approx 10), four large new in 2023
Bosun's chair
2 x Harken winches - mainsheet traveller (new 2024)
8 x Spinlock rope clutches (New 2023)
16:1 Harken Mainsheet
Manual mainsheet dump system - at both steering stations (See video for demo)
Fenders (approx 10), four large new in 2023
Bosun's chair
Remarks
Comfortable fast cruising cat.
She has taken us safely and in style from Port Davey on the Southern tip of Tasmania to Far North Queensland.
Full set of new sails (Main, jib, screecher)
Re-rigged 2023. Running rigging mostly replaced and upgraded
Many spares including complete engine spares, freshwater pump.
She has taken us safely and in style from Port Davey on the Southern tip of Tasmania to Far North Queensland.
Full set of new sails (Main, jib, screecher)
Re-rigged 2023. Running rigging mostly replaced and upgraded
Many spares including complete engine spares, freshwater pump.
