Custom 48ft Cruising Catamaran


Price
AU $365,000
Finance
Pre-Purchase Inspection
Currency
Length
47' 7" - 14.50m
Vessel Location
Port Bouvard WA
Launch Year
2003
Hull Material
Composite

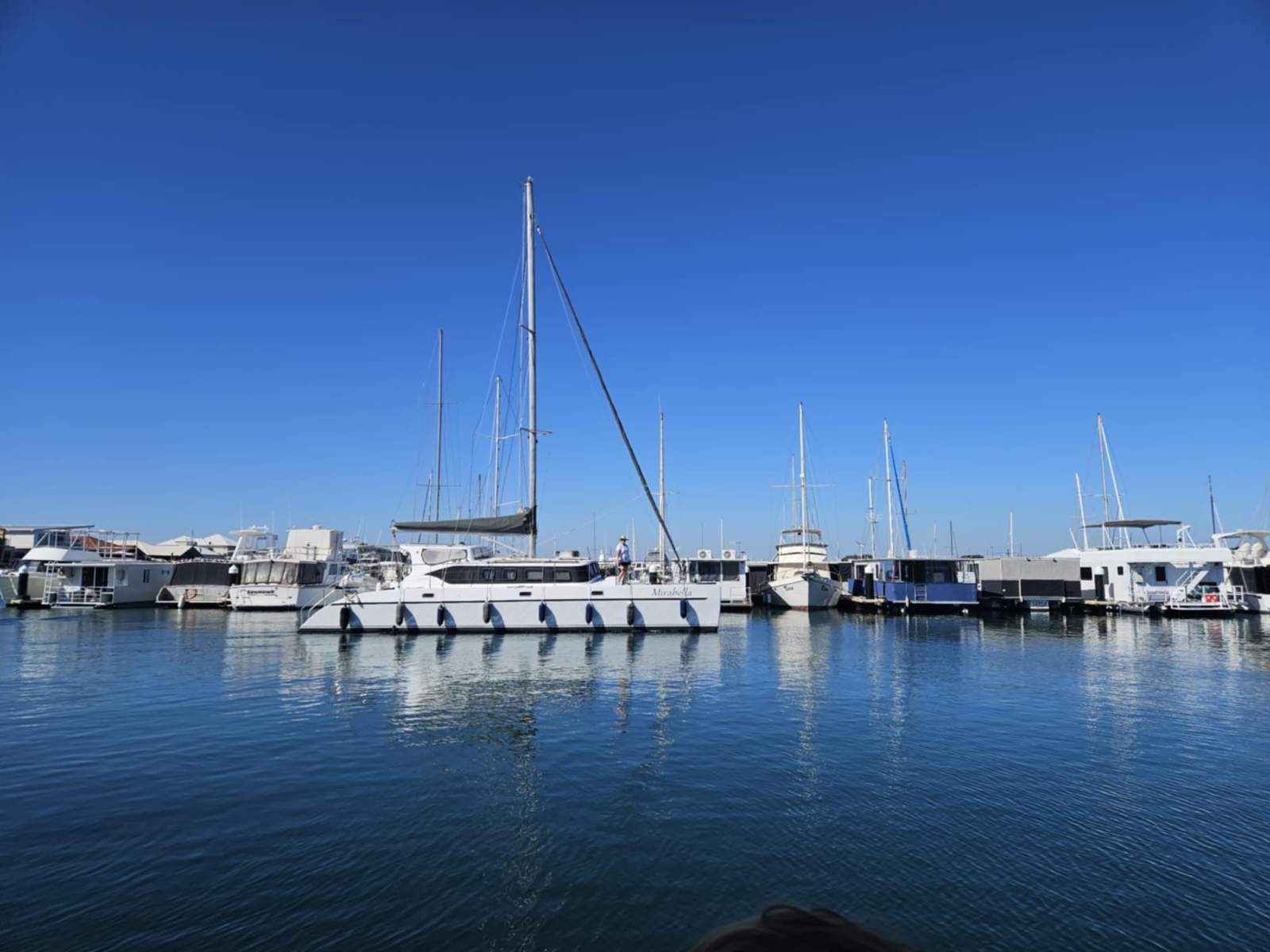

Mirabella is a Custom designed 48ft Cruising Catamaran that is well suited for liveaboard, as she has the main cabin, galley, saloon, head and shower all on the bridgedeck level. Well ventilated with 14 opening ports to the saloon, galley and main cabin.

Rigging, sails and complete electrical rewire from 2022

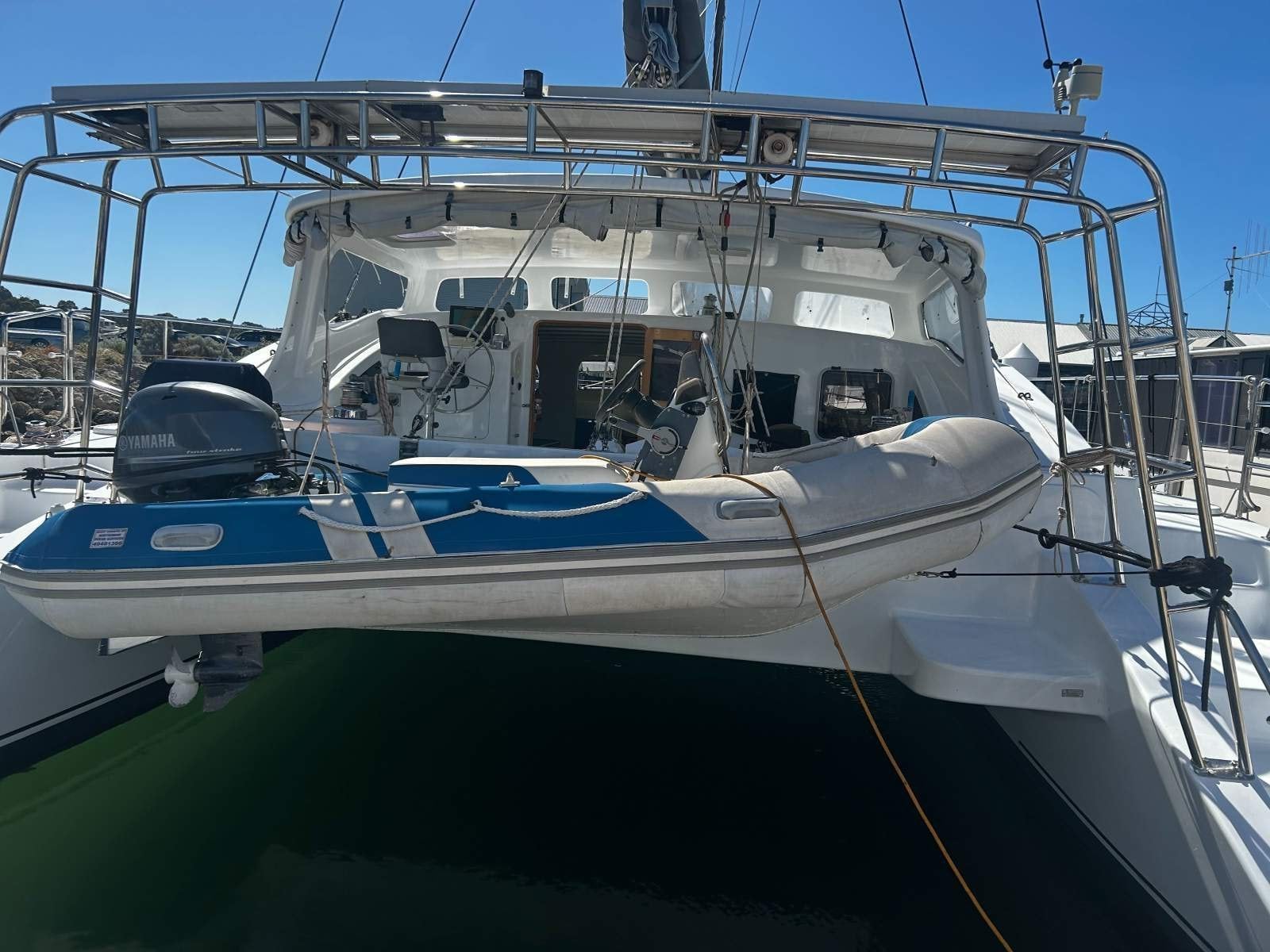

Custom stainless steel arch that supports solar panels on top and electric dinghy davits underneath. Swift 3.55m rib powered by Yamaha F40

She is conservatively rigged and fits under the Port Bouvard bridge and an ultra convenient berth at Port Bouvard would be available to the new owners.

PROS :

She has fantastic buoyancy in the stern with her long transom scoops. There are shaft drives to the 39hp Yanmars, which means that the motors are able to be sited further inboard than production catamarans. This gives enormous confidence when running before larger seas as the tendency to squat is eliminated.

Lifelines on most production cats are 2 rows of stainless steel. Mirabella has a solid stainless steel handrail above these two lifelines that runs all around the boat, across the bows and on both sides down the transoms. Ideal protection for children, pets and safer movement around the boat

CONS:

Mirabella needs to be hauled for fresh antifoul, paint, resealing of 4 hatches, new clears and 1 water tank pressure test.


Price
AU $365,000
Vessel Name
Mirabella
Launch Year
2003
Length
47' 7" - 14.50m
Beam
7.56
Draft
1.1
Displacement
11,000
Keel / Ballast
Twin keels
Vessel Location
Port Bouvard Wa
Region
Western Australia
Use
Cruising
HIN
AU-AEF010061QT3
Registration
HA348
Rego Expiry
15/09/2026
Designer
Ian Campbell
Builder
Ian Campbell
Hull Material
Composite
Decks Material
Composite
Engine
3JHSE
Engine Make
Yanmar
Number Engines
2
Horsepower
39 hp
Fuel Type
Diesel
Engine Hours
2,200 approx
Engine Hours (2nd Engine)
2,200 approx
Fuel Consumption
4 litres per hour
Max Speed
9 knots
Cruise Speed
6.5 knots
Propulsion
2 x Autostream 3 bladed feathering props on shafts
Thrusters
No
Genset
No
Fuel
460 litres
Water
4 x tanks totalling 700 litres. Lower port tank
Dinghy
Swift 3.55m alloy RIB with centre console
Outboard
Yamaha F40 FET
Covers
Boom cover, & cockpit enclosures from 2022.
Clears neeed replacing
Accommodation
Large liveaboard cruising platform on bridgedeck level
Cabins
3
Berths
6 + saloon
Shower
1
Toilet
2
Entertainment
TV, stereo
Air-Con
No
Galley
Galley up, starboard, twin sink, workbenches
Refrigeration
1 x 12v cabinet
Freezer
1 x 12v cabinet
Stove
Dometic LPG 2 burner stove, SMEV LPG oven
Water-Maker
CAT watermaker - not commissioned
Hot Water
12V and port engine
Ground Tackle
60lb Manson Supreme
Maxwell 1200 12v DC, anchor locker and helm control switchingC
Safety Gear
Life buoys x 2
Bilge Pumps
2 x electric submersibles, 2 x hand pumps
Life Raft
RFD 4 man - seriously out of date
Epirb
406MHz - battery expiry 12/26
Life Jackets
Yes
Flares
Coastal pack
Fire Protection
4 x 1 Kg powder
Electrics
12v and 240 AC
3 x AGM deep cycle + 2 x engine start
1500W sine wave inverter
11 x solar panels - total 1,300 W
TriStar MPPT
Battery charger
2 x 12v 80 amp chargers from motors
Electronics / Navigation
Raymarine Element - GPS/plotter, Log, depth sounder, sonar
AIS
Sail Inventory
Main 2022
Genoa - 2022
Asymetric
Mast / Rigging
Alloy extruded mast & boom, spinnaker pole
All new rigging 2022 with report
Deck Gear
Electric halyard winch, electric furler winch
Profurl genoa, Profurl endless asymetric
