NEW Sabrecraft Marine SPMB12.00x6.60 Metre Self Propelled Modular Barge


Price
AU $712,800 available to order
Finance
Pre-Purchase Inspection
Currency
Length
39' 4" - 12.00m
Model Year
New
Hull Material
Aluminium Marine Grade 5083 H116

Price shown does not include GST - Made to Order, Ships Australia Wide

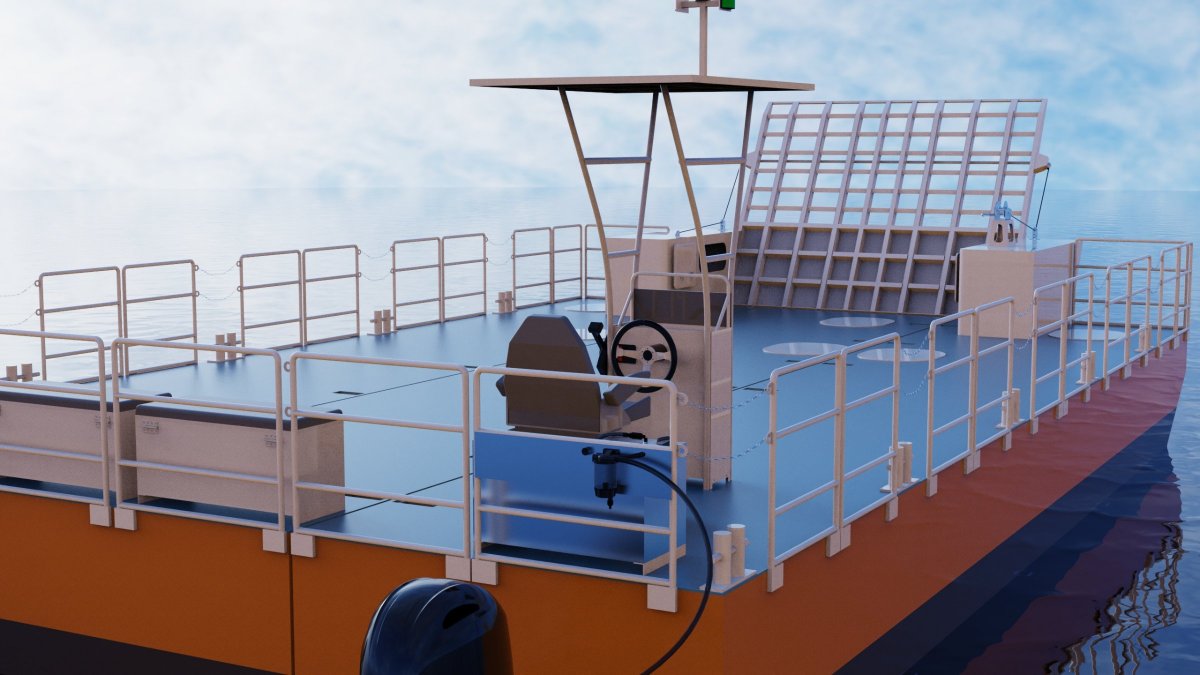

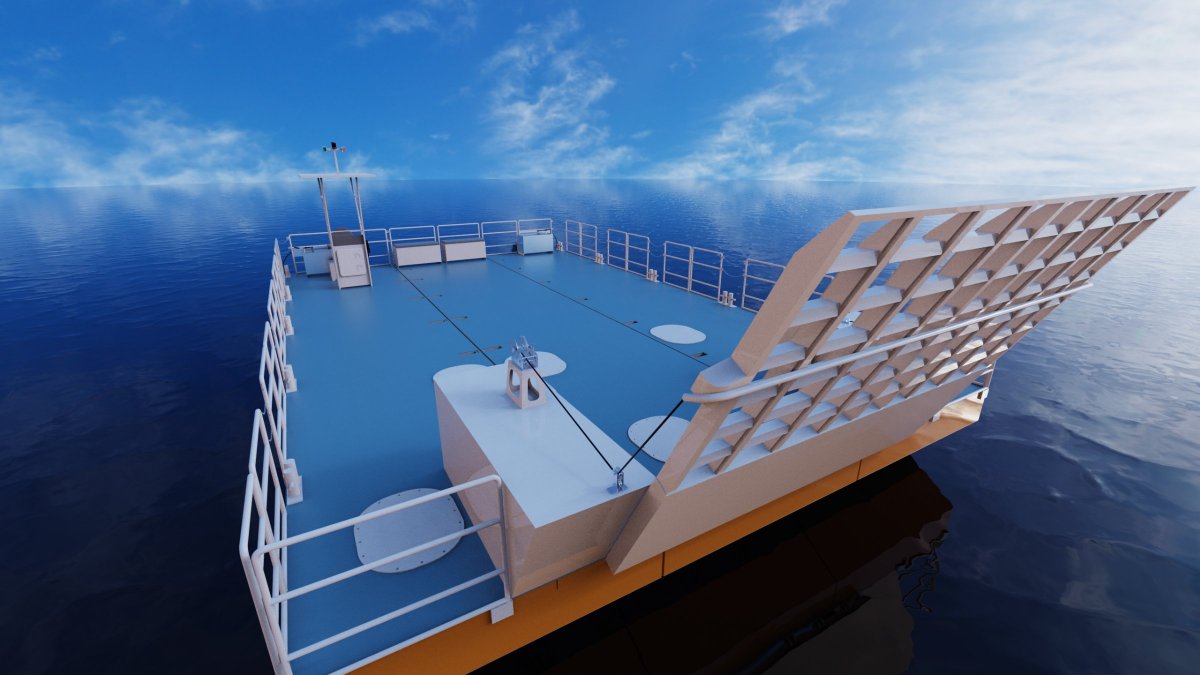

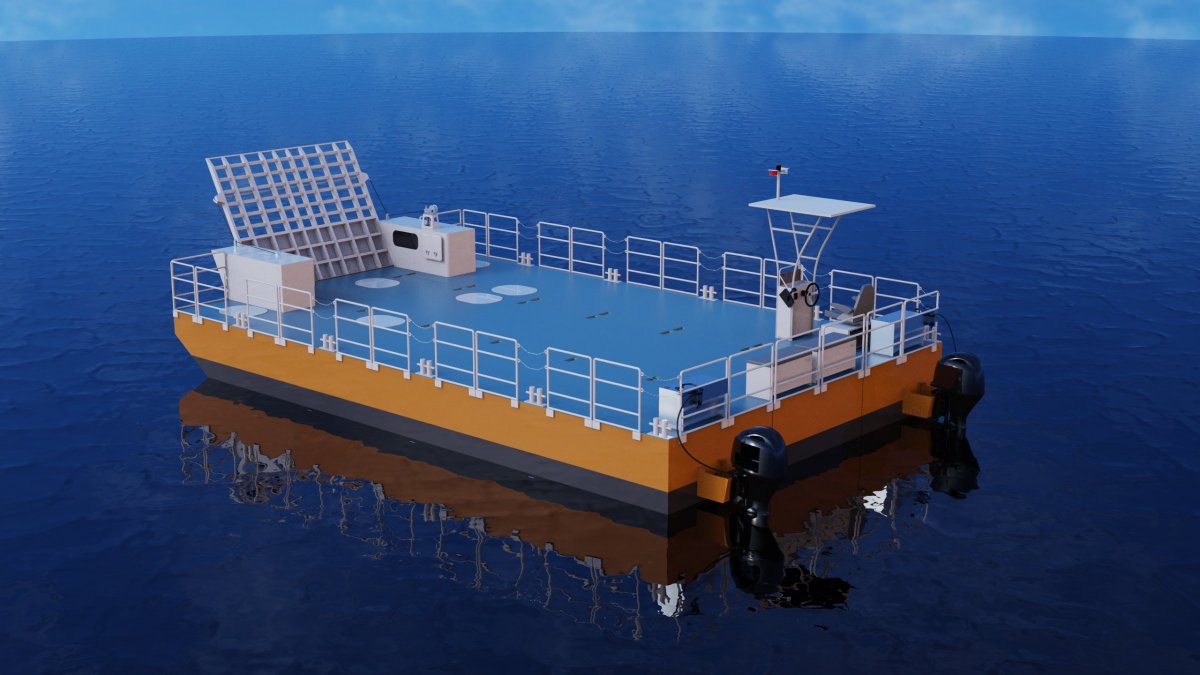

Description: Sabrecraft SPMB12.00x6.60 Self Propelled Modular Barge with Ramp These vessels are built to order and normally take 2 to 3 weeks to construct after materials arrive at the factory

Marine Grade 5083-H116 aluminium is ideal for the construction of work boats, patrol boats to some of the world's largest high-speed Military vessels and now Modular Construction Barges

Like steel, aluminium has considerable ductility giving it the ability to withstand permanent deformation without rupture. It has one third the modulus of elasticity of steel and then can absorb the energy of an impact over a greater distance than steel

All customers demand vessels with proven performance to withstand the harsh Marine Environment. Marine Grade 5083-H116 delivers just that. High Strength with Low Weight and excellent corrosion resisting properties, the versatile benefits of aluminium's strength and weldability are well documented

Construction Material - The Sabrecraft Self Propelled Modular Barge System is constructed using High-Grade Marine Aluminium Plate 5083-H116. All plate used is sourced from factories with Class Approval to BV, DNV, GL or ABS

Connection System - These barges use the Sabrecraft Bolt Through System for assembly with standard tools and lifting equipment.
As these Modules bolt securely together, they create an extremely stable work platform compared to typical Pin Together Systems on the market

Assembly - Modules are easy to load/unload and assemble on site compared to steel at 3 times the weight. Most of the assembly can be carried out with typical Franna type crane

Transport - For shipping the 3 x modules fit into a standard 40FT HC shipping container

Maintenance - Aluminium is very low compared to Steel, no rusting, chipping, blasting and no painting required. Barges are an expensive asset that typically require constant expensive maintenance if constructed from Steel. Barges made from Marine Grade Aluminium require none of the above

Shallow Draft - Aluminium is 3 times lighter than Steel. This weight reduction reduces the vessels draft allowing you to work in far more locations, closer to shore

Inclusions
Construction Material: 10mm/6mm Marine Grade 5083 H116 Aluminium
Length OA: 11.95 meters (nominal)
Width OA: 4.00 meters (based on 2 modules)
Height OA: 1.20 meters
Module size: 10.65 x 2.20 x 1.20 meters
Deck Load: 1.90 tonnes per m2
Payload: tonnes
Bollards: Yes
Safety Fence: Included
Deck is aluminium plate 10mm
Colour - no paint
Warranty: Structural 5 years
AMSA Approved Plans: Included
Approval: Survey AMSA - 2C with restrictions
Vessel inspections: Included during construction - Sabrecraft
Final survey Inspection: Included
Lodgement of AMSA paperwork: From UVI Application to final Survey Approval
Stability Report: Included
Zinc Anodes: Included
2 x 150hp Outboard Motors
2 x Batteries with Isolator switch
2 x Engine Pods
1 x SS Tie Bar
1 x Heavy Duty Hydraulic Steering
2 x Fuel Tank 120lt
1 x Console with Canopy
1 x Set Navigation Light Assembly

Aluminium Boating Specialists!
Sabrecraft Marine is truly a one stop shop for all your vessel design, certification and manufacturing needs. With our inhouse naval architects, AMSA approved surveyor, CE certified products and precision CNC, contact us today to discuss your next boating adventure!!

Ally Work Boat, Alloy Work Boat, Alley Work Boat, Plate Work Boat, Ally Work Punt, Alloy Work Punt, Alley Work Punt, Plate Work Punt, Ally Work Cat, Alloy Work Cat, Alley Work Cat, Plate Work Cat, Mini Tug, Micro Tug, Tug Boat, Ally Tug, Alloy Tug, Ally Barge, Alloy Barge, Alley Barge, Landing Barge, Deck Barge, Self-Propelled Barge, Modular Barge, Work Punt, Work Boat, Work Cat, Jack Up Barge, Construction Barge, Dumb Barge, Landing Craft, Utility Vessel, LCMH, Man Overboard Boat, Man Overboard Vessel, Firefighting Vessel, Fire Fighting Boat, Fire Fighting Rescue, Rescue Vessel, Rescue Boat, Line Boat, Line Vessel, Supply Vessel, Supply Ship, Crew Change Vessel, Crew Change Boat, Transfer Vessel, Service Vessel, Patrol Boat, Glass Bottom, Tourist Vessel, Ferry Pile Cat, Pylon Repair, Pylon Wrapping, Wharf Maintenance, Multipurpose Vessel


Price
AU $712,800 available to order
Boat Reference
SPMB12-660
Model Year
New
Length
39' 4" - 12.00m
Beam
m
Draft
m
Displacement
Tonnes
Region
Western Australia
Use
Commercial
Hull Material
Aluminium Marine Grade 5083 H116
