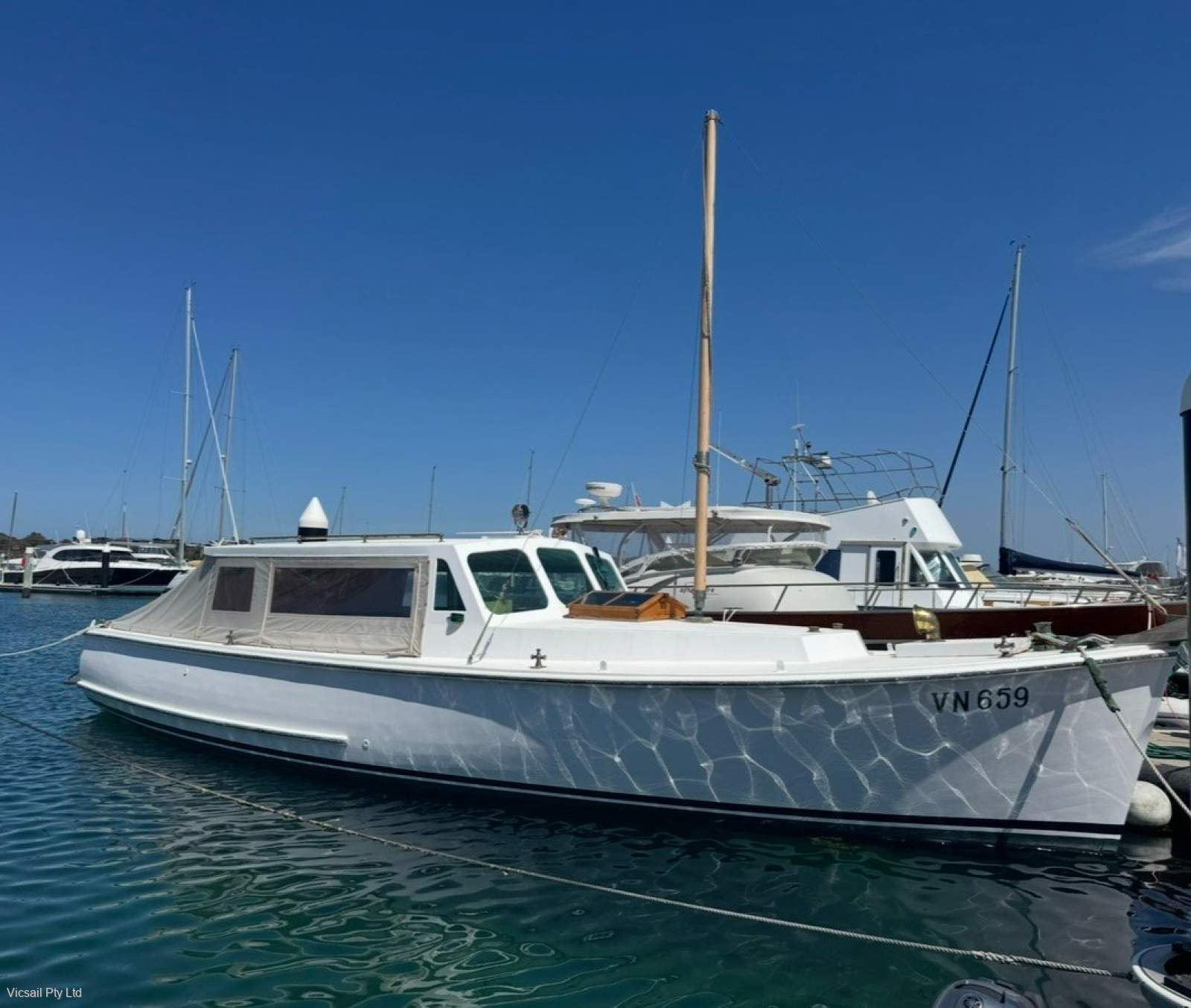

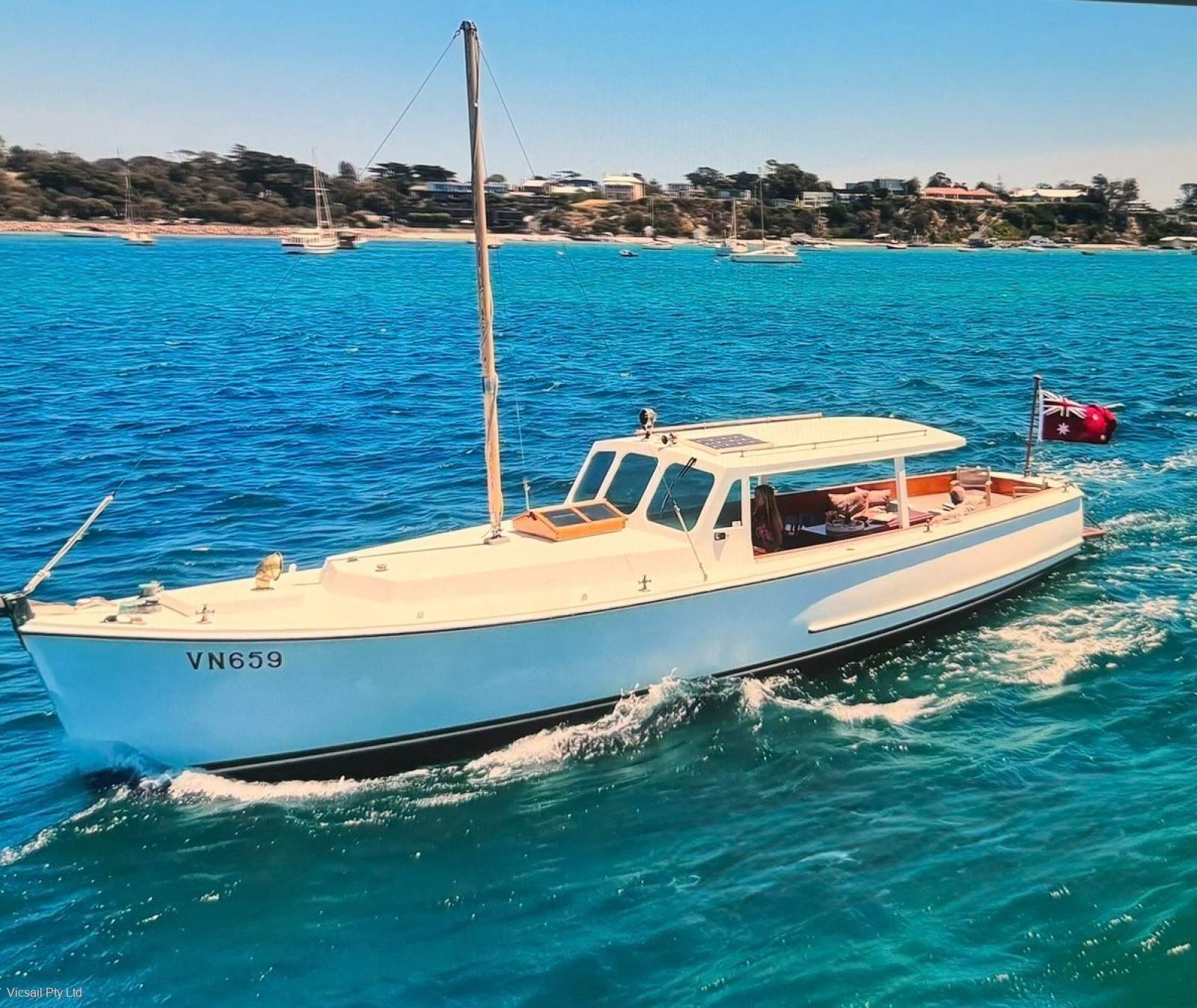

Alan Payne 40
Currency
Length
40' 0" - 12.20m
Vessel Location
Rushcutters Bay NSW
Launch Year
1960
Hull Material
Timber Double planked hardwood carvel hull Spotted gum frames and Oregon deck structure
Price
AU $345,000
Vessel Name
Tropic Star
Boat Reference
Tropic Star
Launch Year
1960
Length
40' 0" - 12.20m
Beam
3.80 m
Draft
1.60 m
Vessel Location
Rushcutters Bay Nsw
Region
Victoria
Use
Family, Leisure, Cruising
HIN
AU-WWA140641A06
Designer
Alan Payne
Builder
Mike Nesbitt, Balmain
Hull Material
Timber Double planked hardwood carvel hull Spotted gum frames and Oregon deck structure
Decks Material
Oregon deck structure
Engine
Yanmar engine 110 HP diesel 2022 Model 4JH110
Engine Make
Yanmar
Fuel Type
Diesel
Propulsion
3 blade fixed bronze propeller
Fuel
Large plastic container under floor
Water
Large plastic container under floor
Accommodation
The cockpit is very roomy and provides good access to the side decks and transom area. The side deck height is low enough to allow access from a floating marina arm. There are fairleads and cleats for mooring lines and large lockers have been fitted to provide extra seating and storage. Most of the under the floor area is accessible which gives access to the engine, fuel and water tanks, rudder, steering gear and various electrical and plumbing systems. There is a very large folding table on centreline, which has been beautifully built and finished.
The forward saloon has two long and wide bunks or lounges either side. The cockpit has seating for 6 or more around the long removable table. These mattresses lift off to provide access to the bilge and storage for safety equipment etc. There is a double opening hatch overhead which is original but has been fully restored. At the forward end of the saloon is a doorway to a head area with a sink and some cupboard storage. Behind the head is access to the electric anchor winch and chain. This area is ventilated via mushroom vents and another hatch. The flooring panels have been replaced in 2021 with teak and celery inlay. Fwd there is an Electric flush toilet.
The forward saloon has two long and wide bunks or lounges either side. The cockpit has seating for 6 or more around the long removable table. These mattresses lift off to provide access to the bilge and storage for safety equipment etc. There is a double opening hatch overhead which is original but has been fully restored. At the forward end of the saloon is a doorway to a head area with a sink and some cupboard storage. Behind the head is access to the electric anchor winch and chain. This area is ventilated via mushroom vents and another hatch. The flooring panels have been replaced in 2021 with teak and celery inlay. Fwd there is an Electric flush toilet.
Shower
Cocpit shower
Toilet
Yes
Ground Tackle
Muir Bronze anchor windlass, anchor, chain/ ground tackle. Windlass control at helm and chain counter
Bilge Pumps
Yes
Electrics
Batteries: 3 x 92amp hour house batteries. AGM
Wiring: 12 breaker BEP DC switch panel for electrical equipment onboard
Wiring: 12 breaker BEP DC switch panel for electrical equipment onboard
Electronics / Navigation
Garmin GPS plotter coupled to Raymarine display for speed/ depth etc. Horn. New twoway radio.
Deck Gear
All original bronze deck fittings including classic spot-light and navigation lights.. The boat was originally a motor sailer and sported a larger mast. As part of the refurbishment. A small, lowering mast was added. This could accommodate a simple steadying sail.
