NEW Lagoon 47 Just Listed

A New Generation 47 Foot Catamaran

Where Innovation Meets Seamless Living at Sea

The Lagoon 47 marks the beginning of a new era for sailing catamarans, combining decades of Lagoon expertise with real owner insights to create a boat that feels intuitive, spacious, and built for life on the water. This 47 foot catamaran delivers the perfect balance between performance, comfort, and modern onboard living, while also establishing itself as a capable bluewater cruising catamaran designed for longer passages in complete confidence.

The Lagoon 47 catamaran introduces a fresh approach to space and movement. From bow to stern, every area is connected, creating a seamless flow rarely seen on a new Lagoon catamaran. At the heart of this innovation is a standout feature, a forward door that connects the saloon directly to the front cockpit, redefining how you move and live onboard. This unique concept offers a level of indoor-outdoor integration that sets the Lagoon 47 apart.

Beyond comfort, the Lagoon 47 is built for the realities of offshore cruising. A powerful rig design, multiple sail plan options, and a range of factory downwind sails ensure it is well suited to passage making, delivering both efficiency and ease of handling. Whether sailing short-handed or with a full crew, it offers the confidence expected from a modern bluewater cruising catamaran.

Above, the expansive flybridge creates an entirely new dimension of living. More than just a helm station, it is a social and relaxation hub, reinforcing the Lagoon 47's place among the most versatile flybridge catamaran designs on the market. With panoramic views, generous seating, and dedicated lounging areas, it becomes one of the most sought-after spaces onboard.

Whether you are planning coastal cruising, extended time aboard, or adventures further afield, the Lagoon 47 adapts to your lifestyle. With flexible layouts, generous accommodation for 6 to 13 guests, and a design philosophy centred around comfort at sea, it is a catamaran built not just to sail, but to live on.

Construction
o Polyester and high quality anti-osmotic resin
o Hull and deck aminated by infusion
o Injected coachroof
o Balsa core hull and deck, white gel coat
o Laminated or glued plywood

Engines
o 2 diesel engines YANMAR 4JH57 57CV SailDrive
o Fixed three blade propeller
o Sea water filter
o Mechanical engine throttles at the helm station
o Engine compartment ventilation: 12V electrical extraction in
the aft transom
o Fuel circuit:
- 2 rotomoulded tanks of 430L / 114 US gal
- Fuel filter systems
- Fuel shut off valve
- Gauge at the general control panel on touch screen

Sails and rigging

Sails
o Furling mainsail in Dacron
o Genoa in Dacron with UV protective band
standing rigging
o Anodized aluminium mast on the roof
o Anodized aluminium boom
o 2 spreader rig
o Coated shrouds
o Furling forestay for genoa
o 2 forestay chainplates and 1 shroud chainplates

Running rigging
o Mainsail halyard
o Genoa halyard
o Mainsheet
o Genoa sheets
o Genoa furling line
o Mainsail traveler lines
o Boom uphaul
o Mainsheet fuse

Hardware
o 2 manual winches size 50.2 STA
o 1 manual winch size 35.2 STA
o Footblocks & clutches for halyards, reefing lines and sheets
o Mainsail track and ball-bearing car
o Track and car for genoa sheet with stopper
o Anodized aluminium crossbeam with fixing point for the
genoa furler, and anchor roller

Plumbing
Fresh water circuit
o Fresh water tank: 380L / 100 US gal with gauge at the chart table
o Fresh water circuit with 1 main water group 36L/mn
o Hot water circuit with 60L / 16 US gal water heater and engine exchanger

Grey water circuit
o Shower and sink draining by automatic water sensor with timer
o Grey water drainage cockpit and salon direct to the sea black water circuit
o Black water holding tanks:
- 3-cabin: 194L / 51 US gal
- 3-cabin +1: 244L / 64 US gal
- 5-cabin: 278L / 73 US gal
o Tank drain by gravity or deck plate

Bilge pump circuit
o 1 manual bilge pump per hull
o 1 automatic immersed bilge pump per hull, with alarm signal
o Self-draining cockpit compliant to the CE certifications

Electrical
o Seanapps® connectivity - Battery voltage and GPS position on mobile app

DC power circuit - 12V
o 2 harnessed alternators 125A
o 2 engine batteries 50A (AGM)
o 2 service batteries 140A (AGM)
o Battery circuit breakers in the engine compartments

Distribution electric panel
o General control panel 12V at chart table
o USB sockets 12V included in the electrical panel

Lighting
o 12V LED interior lighting and reading lights
o 12V lighting in engine compartment
o LED navigation lights
o Deck light on mast

Mooring
o Composite longitudinal crossbeam with integrated chain run and mooring cleat
o 11 mooring cleats
o 1700W / 12V electrical windlass with vertical axis, chain 12 mm

Deck layout
Transom
o S/S telescopic swim ladder with fixed handles on port side

Aft cockpit
o Aft cockpit access opening with stainless steel lifelines
o Bench on starboard with locker
o Lounger with polyester cockpit table on port side
o Gas locker
o Liferaft locker
o Composite aft beam with seats (optional adjustable backrests)
o Cockpit flush-decked with salon
o Non-slip cockpit floor
o Self-draining cockpit with wooden grating

Helm station and flybridge
o Double access from portside and starboard
o Double helm seat
o Leather covered steering wheel ø900mm
o Engine throttles and panel
o Console for screen and instrumentation
o Storage bag for halyards

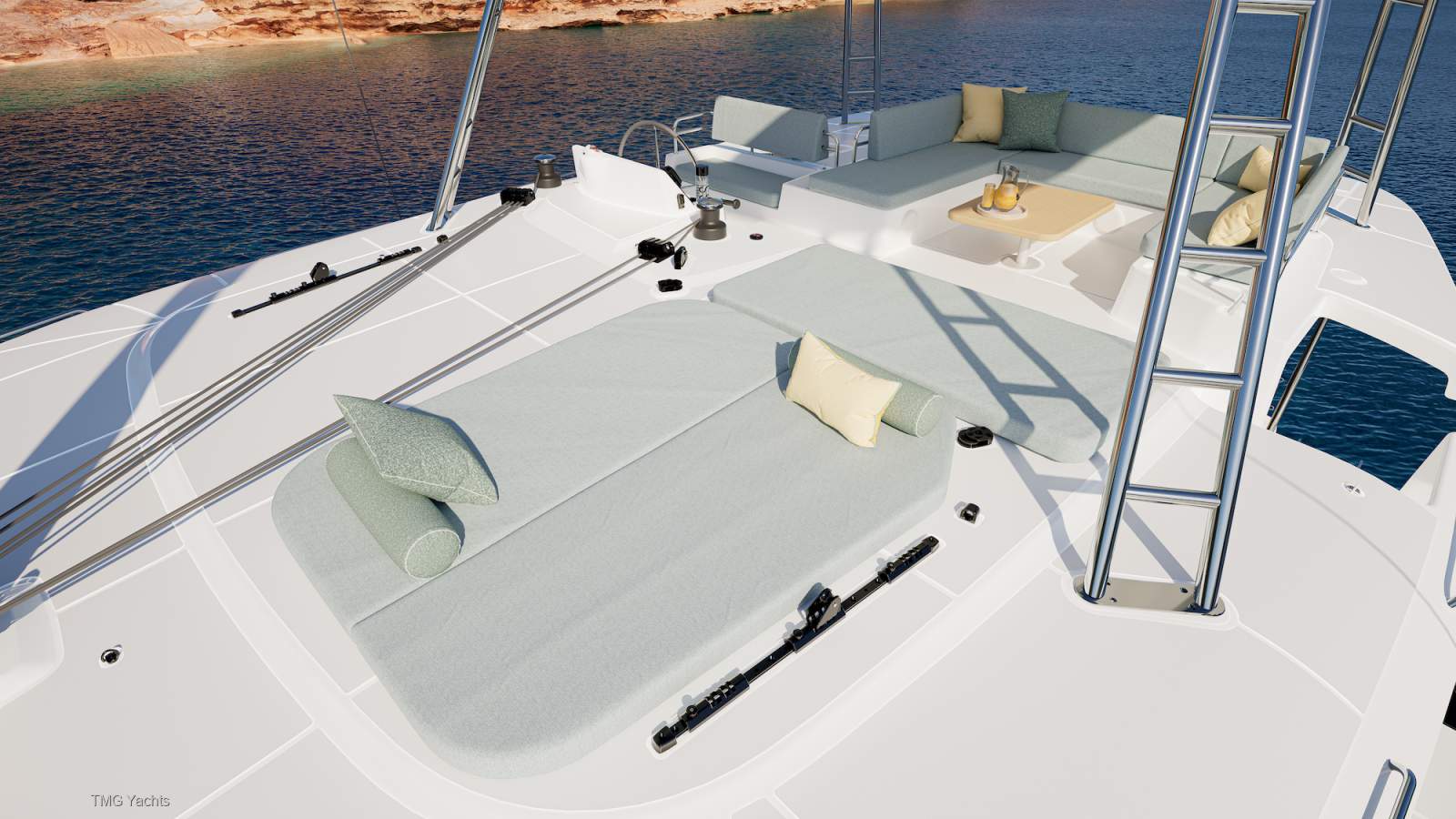

Forward cockpit
o Direct access to the forward cockpit from the salon
o Large hatches for storage and technical access
o Nylon netting

Bow lockers
o Access through deck hatches
o Wooden floor
o LED lighting

Stanchions and lifelines
o Pushpits: H610 mm / 24in
o 10 stanchions: H610 mm / 24in
o Double S/S lifelines

Interior layouts
General
o Construction in Alpi Sand Oak plywood
o Laminated floor: Linberg
o Eco-Cleaning Pack
o Furniture interiors in white finish

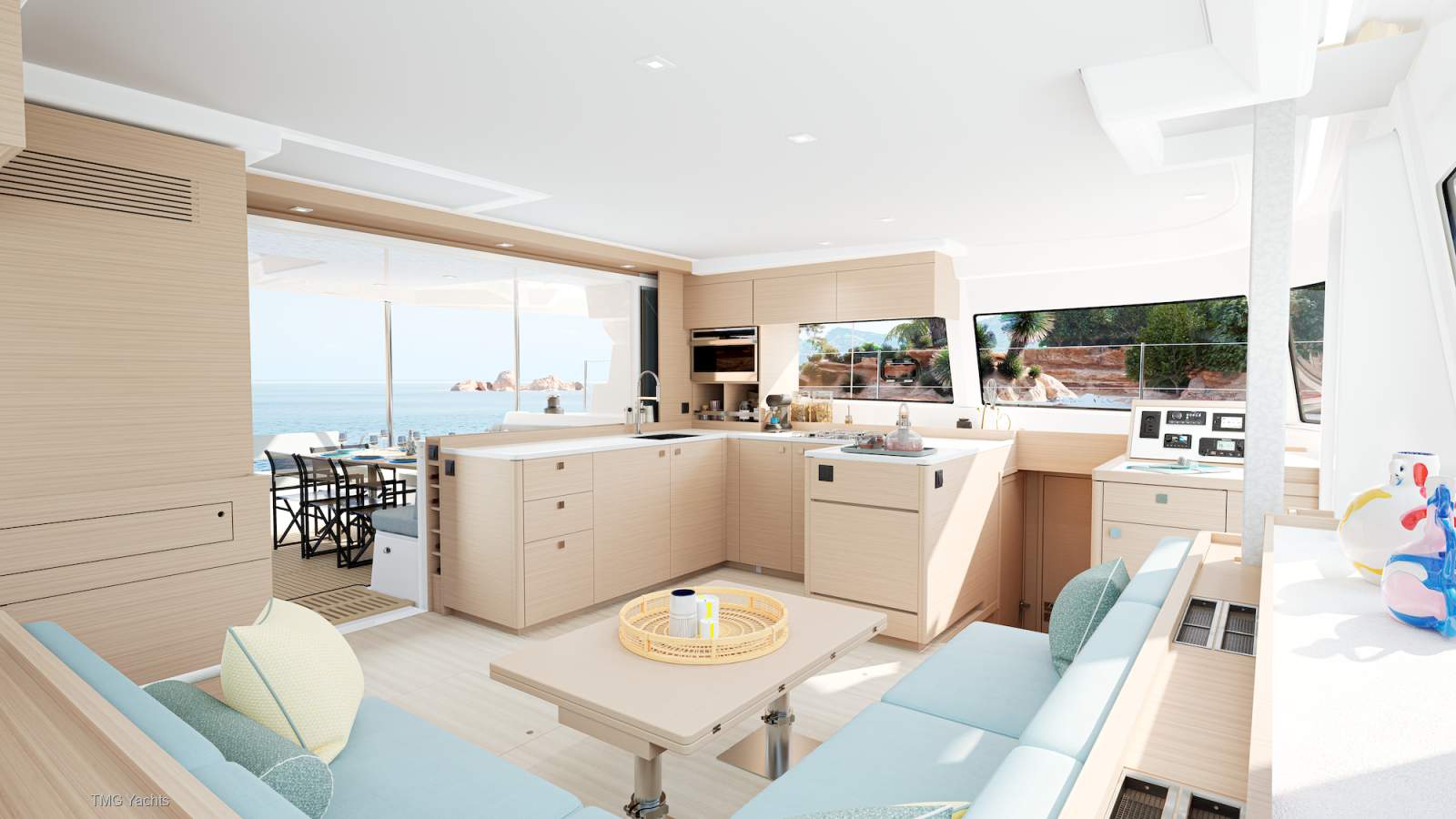

Galley
o U-shaped galley
o Composite countertop
o Large s/s sink
o Hot/cold mixer tap
o 3-burner gas stove
o Gas oven
o Low storage lockers with shelves and drawers
o 220V 300L / 79 US gal refrigerator including dedicated inverter

Salon
o Sofa
o Wooden coffee table
o Lockers under the sofa
o Direct access to the forward cockpit from the salon

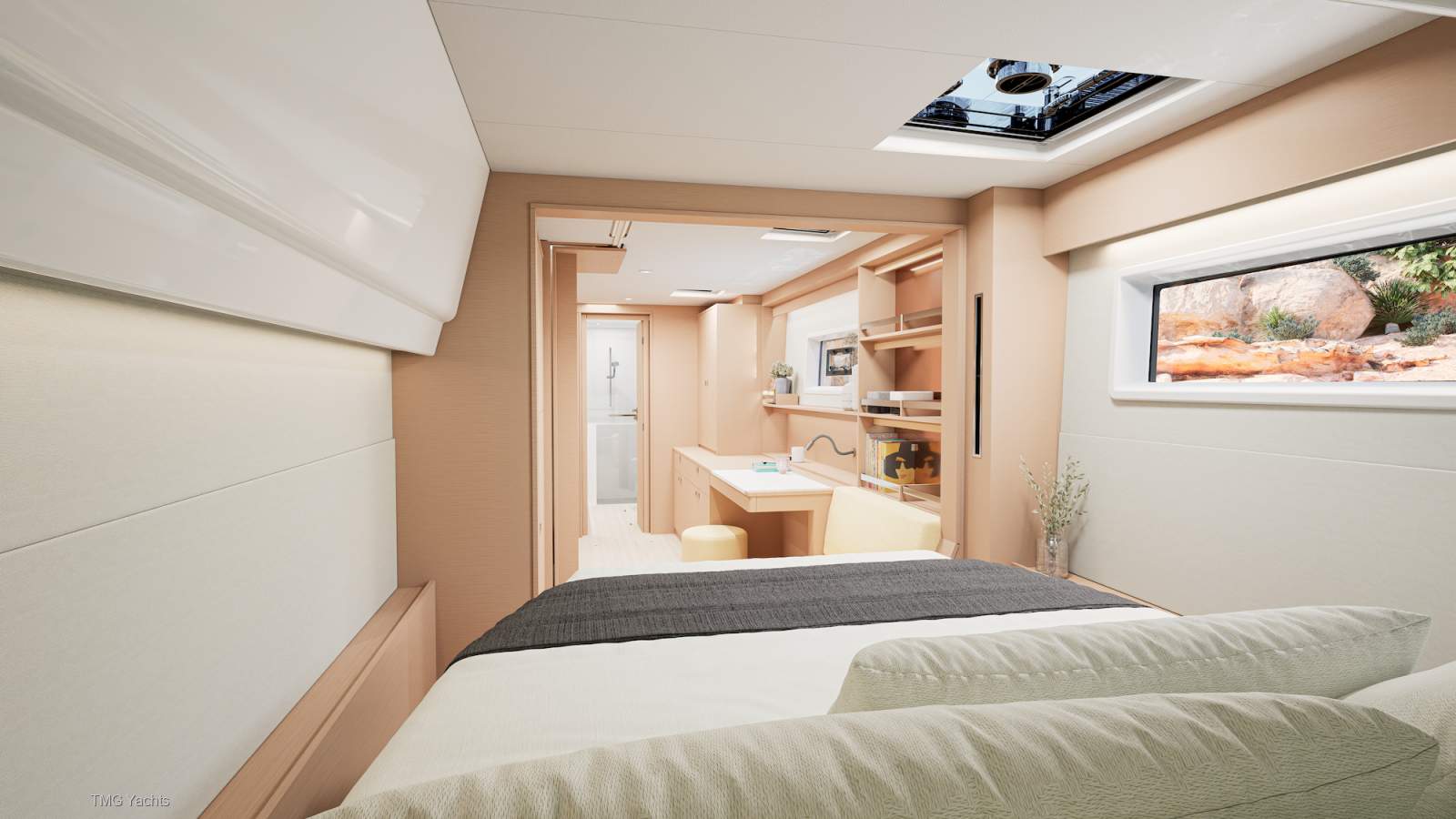

Owner's cabin
o Double bed with front access (2,00 x 1,60 m / 6'7'' x 5'3'')
o Treated cellular foam mattress
o Under bed storage
o Storage units with shelves, drawers and wardrobe
o Sofa
o Desk
o T44 and T10 opening flush deck hatches
o Fixed hull window in PMMA with integrated opening portholes with curtains

Owner's head
o Private access from the Owner's cabin
o Corian countertop
o Integrated sink with hot/cold mixer tap
o High and low-level storage units
o Separated shower with PMMA door
o Manual toilet
o T44 opening flush deck hatch
o Fixed hull window in PMMA with integrated opening porthole

Aft cabins - port side
o Direct access from the aft cockpit
o Double access with front access (2,00 x 1,50 m / 6'7'' x 4''11'')
o Treated cellular foam mattress
o Storage units with shelves and wardrobe
o Under bed storage
o T44 opening flush deck hatch
o Fixed hull window in PMMA with integrated opening portholes with curtains

Aft cabins - starboard 5-cabin version
o Double access with front access (2,00 x 1,60 m / 6'7'' x 5'3'')
o Treated cellular foam mattress
o Storage units with shelves and wardrobe
o Under bed storage
o T44 opening flush deck hatch
o Fixed hull window in PMMA with integrated opening portholes with curtains

Forward cabins
o Double access with front access (2,00 x 1,50 m / 6'7'' x 4''11'')
o Treated cellular foam mattress
o Under bed storage
o Storage units with shelves and wardrobe
o T44 opening flush deck hatch
o Fixed hull window in PMMA with integrated opening portholes with curtains

Heads
o Composite countertop
o Composite sink with hot/cold mixer tap
o High and low-level storage units
o Separated shower with PMMA door
o Manual toilet
o T10 opening flush deck hatch

Middle port cabin
o Area with storage units including shelves and wardrobe
o T44 and T10 opening flush deck hatches
o Fixed hull window in PMMA with integrated opening portholes with curtains
o Conversion of the area into an Utility Room or bunk beds with private head (optional)
