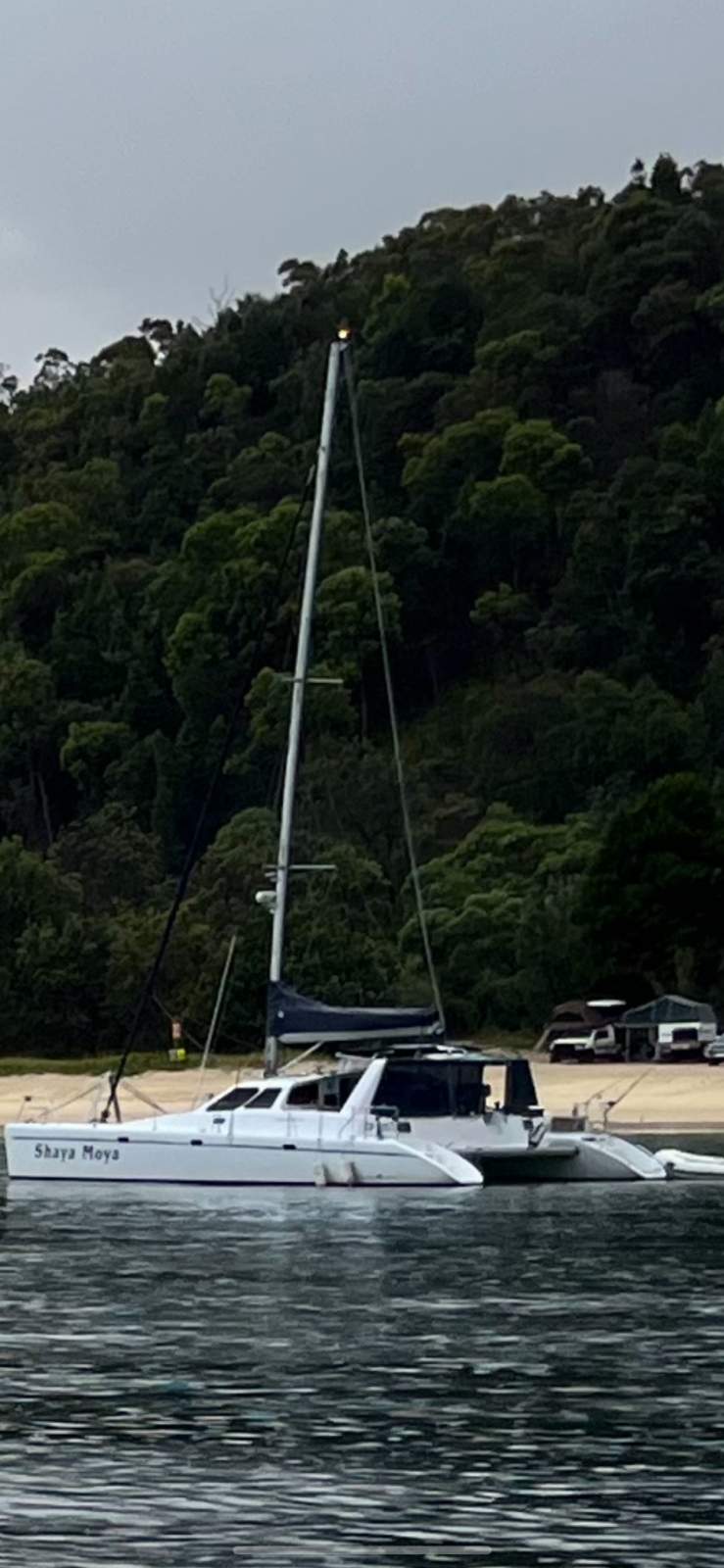

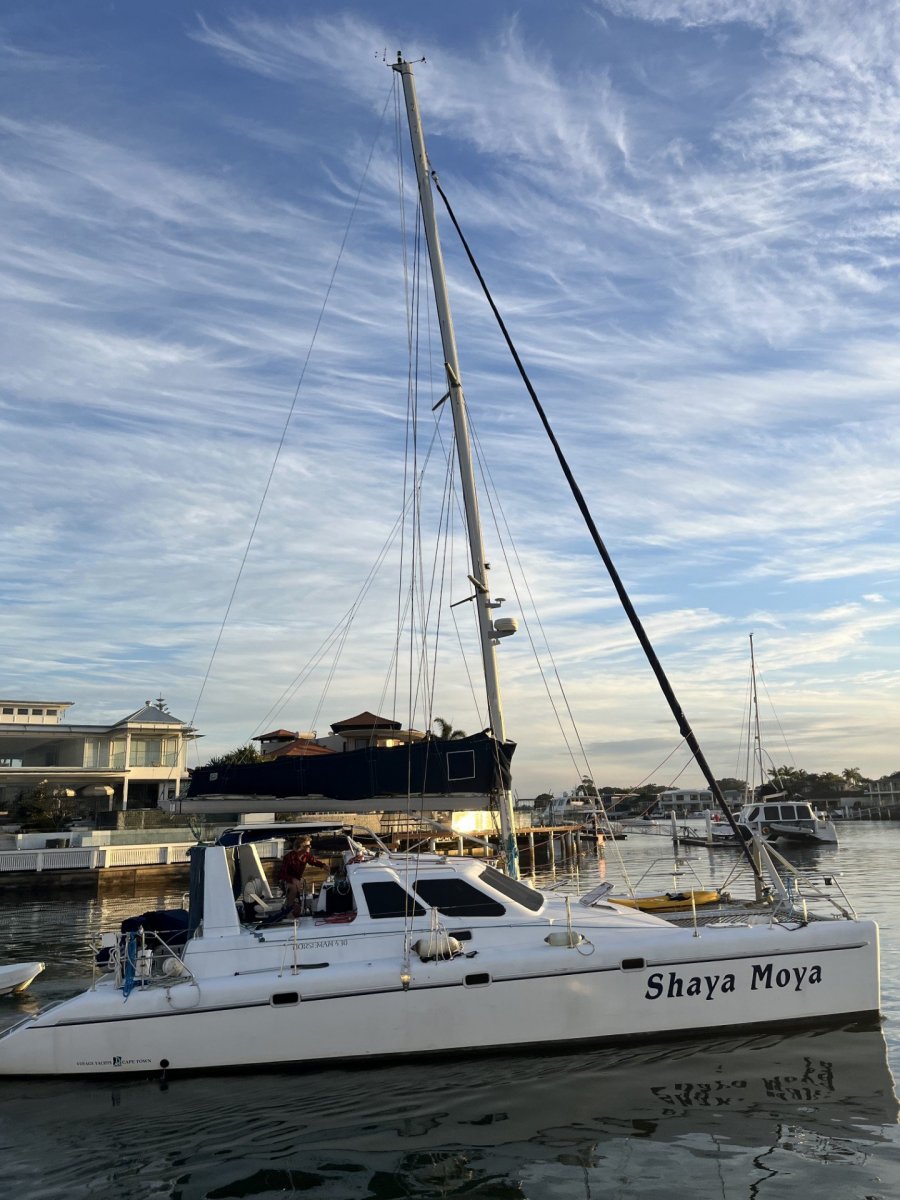

Norseman 430

INVENTORY
MAKE:
Norseman
MODEL:
430
HULL MATERIAL:
Fibreglass, Cored above waterline
DECK & SALOON:
Fibreglass Cored
LENGTH:
13.1 M
VESSEL NAME:
Shaya Moya
LAUNCH YEAR:
1999
BEAM:
7.6 M
DRAFT:
1.4 M
DISPLACEMENT:
TBA
HULL NO.
AUABL000032QT4
CRUISING SPEED:
8 Knots
DESIGNER:
Alexander Simonis
BUILDER:
Voyage Catamarans South Africa
REGISTRATION NO:
OP260Q
AUST REGO:
No
ENGINE:
Two Yanmar 3YM30E 30 HP
1241 hours
Serviced at 1240 hours
2.25 L PH each engine
2 blade props
FUEL CAPACITY:
400 L
7 x 20L fuel drums
DINGHY:
Stephan (Italy) inflatable, fibreglass floor
Yamaha 6hp 4 stroke
Boom extension lifts dinghy in and out of water
GROUND TACKLE:
Mantius 45lb with swivel
Chain 3/8 " x 70M
Fortress anchor
COVERS:
Full covers
SAFETY:
Harnesses x 4
V sheet
Horseshoe ring
EPIRB:
Yes
LIFEJACKETS:
Self inflating x 4, needs service
FLARES:
Yes
FIRE:
Yes
BILGE PUMPS:
Electric & Manual
GENSET:
Honda 2kva
ELECTRICS:
Inverter 1800W
2 x 440W Solar 2024
Victron regulators
Compass
Clock
ELECTRONIC S:
Raymarine speed, depth/log/chart plotter & Auto pilot + Radar
Icom VHF
STEERING/RUDDERS:
Wheel, chain to auto pilot
Cable to rudder link
Alloy tube joining both rudders
Skeg hung rudders
MAST:
Alloy fractional rig
RIGGING:
S/S
SAILS:
Main, Head, Spinnaker with sock
FURLER:
Profurl
WINDLASS:
Yes electric
DECK GEAR:
Anderson 46 self tailing winches
4 x Winch handles, One, length adjustable
Jammers on cabin top
ACCOMMODATION:
4 x doubles
REFRIGERATION:
Fridge Front opening
Freezer top opening
Both 12 V compressor with plates
New Dometic controller fitted
WATER:
400 L
20L water drum
TOILET:
Manual x 2
2 x holding tanks with new pump out fittings
Spare electric motors
Refurbished March 2024
SHOWER:
Yes hot and cold
Engine and 240V
ENTERTAINMENT:
3 x 12 V Televisions
New head unit March 2024 with amplifier
GALLEY:
Oven + 4 burner stove new 2024
Double bowl sink
WATERMAKER:
Yes requires attention

NEW ITEMS 2023 & 2024:
Alternator port engine
Exhaust fans in both engines
Refurbished water heater in starboard engine room
Aft hatch covers
440W x 2 Solar
Victron 30A regulators x 2
CD head unit
Starter solenoid to both engines
Pump out deck fittings
Victron 240V battery charger
Stove top and oven, complies to Australian standards
Refurbished Auto pilot computer
UV on head sail
Main halyard
Dual helm seat & base
Magma BBQ and base
Stephan Rib dinghy & mounting brackets
Yamaha 4 stroke 6 HP outboard, 10 hours
Dinghy cover
Outboard cover
Cabin windows covers
AGM batteries x 8
Leather lounge cushions
Danfoss fridge compressors BD50 x 2
Spare starter motor
Spare starter solenoid

VESSEL CONSTRUCTION:
Hand laid up GRP construction using multi layers of quadraxial glass roving, isophthalic and orthopthalic polyester resin and other highest grade material.
Closed cell PVC foam core, vacuum bonded for stiffness, strength and minimal weight.
Marine ply and balsa core on critical structure bulkheads for added strength and stiffness.
Reinforced fitting areas for rudders, keels, mast, chain plates and deck fittings.
Forward water tight compartments with horizontal bulkheads.
Skeg supported rudders.
Low aspect keels reinforced for beaching.
Antifouling over epoxy based osmosis barrier.

DECK FITTINGS:
Stainless steel grade 316
Bow pulpits with seats
Pushpits on stern
Stanchions and stanchion bases, extra high (thigh level), double guard wires with netting, 36" high
Swim ladder

FURTHER INFORMATION:
She is setup for extended liveaboard and cruising on the hook.
Self sufficient in every way, she will keep her crew happy, comfortable and safe.
The livability of this boat is amazing. Storage room is is exceptionally large.
The electrical system has been designed to sustain indefinitely without running the engines.

OTHER:
Manuals for all equipment
Various charts
Bimini
Duckboard
4 portholes on port and starboard sides
Good headroom
Swim ladder

ITEMS REQUIRING ATTENTION:
Seacocks for holding tanks seized open
Inflatable life jackets require servicing
Watermaker requires attention
Rigging is original and has been inspected, rigger has stated to keep original wire in place
Due for new antifoul

LOCATED: BUDDINA Qld
