Hallberg-Rassy 54
Length
54' 11" - 16.74m
Vessel Location
Opua B. O. I
Launch Year
2008
Hull Material
Fibreglass/GRP
The Hallberg-Rassy 54 is a blue-water cruising yacht designed by German Frers. It's known for its robust build, comfortable living spaces, and easy handling features like hydraulic sail handling and electric winches allowing for easy single handed operation, according to SailCloudyBay and Cruising World Magazine. The 54 is designed to be a comfortable and seaworthy long-distance cruising yacht, suitable for both coastal sailing and extended voyages. Cloudy Bay has not just been fastidiously maintained but has been contstantly upgraded and renewed.
Vessel Name
Cloudy Bay
Launch Year
2008
Length
54' 11" - 16.74m
Beam
4.7m
Draft
2.3m
Displacement
29t
Keel / Ballast
Lead
Vessel Location
Opua B. O. I
Region
North Island
HIN
SE-HRM54021J708
Designer
German Frers
Builder
Hallberg Rassy
Hull Material
Fibreglass/GRP
Decks Material
Laid teak over GRP
Engine
Engine received a complete service including New injector pump, new injectors, all pumps, alternators, manifolds etc were removed, checked, serviced and reinstalled @ 2200hrs
Engine Make
Volvo
Number Engines
1
Horsepower
180
Fuel Type
Diesel. Double Racor fuel filters with switch over. I pair of each for Volvo and generator
Engine Hours
2515
Fuel Consumption
4LPH at 7.2knots 1300RPM. 9LPH at 8.2 knots 1500RPM
Max Speed
9
Cruise Speed
8
Propulsion
Shaft Gori Overdrive propeller plus 3 blade fixed as spare
Thrusters
Bow
Genset
Mastervolt 8kva Ultra 230v/50hz 1500rpm (650hrs)
Fuel
1000l in 2 tanks
Water
1030L
Dinghy
Highfield 340 Classic
Outboard
Suzuki 20hp 4 stroke
Covers
Various
Accommodation
Step below and discover a beautifully appointed saloon. High quality teak joinery, alcantara upholstery and carpeting throughout snapped over a teak and holly sole provide an air of comfort and luxury.

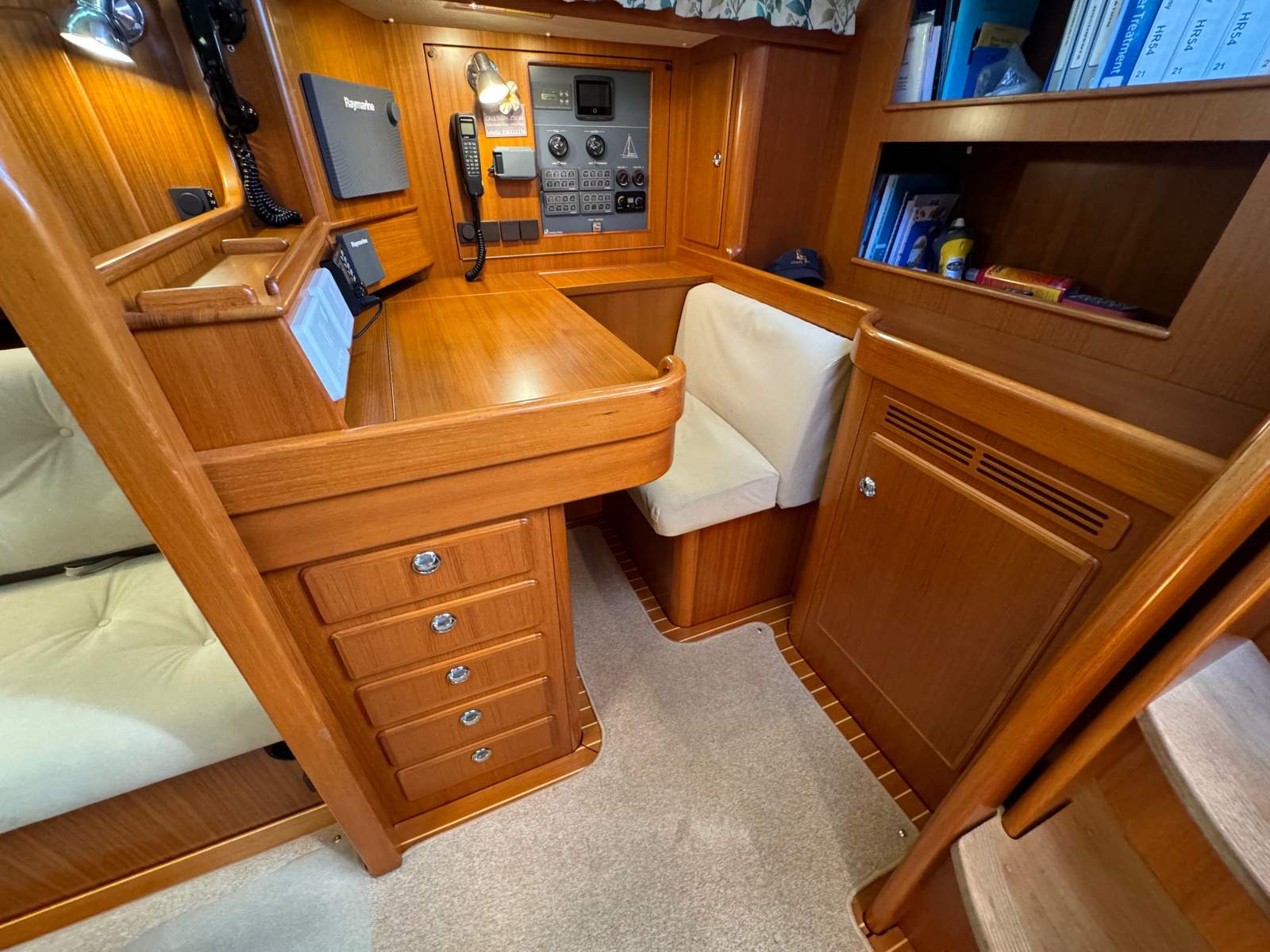

Descend the companionway and you are overwhelmed by the feeling of spaciousness. The layout places the navigation station immediately to starboard with chart table, instruments with ample stowage in draws and shelves. Forward, a large dining table and U shaped lounge with seating for 8 adults. Opposite to port are two single seat lounges. Adjoining the saloon is the Galley located to port.
Cloudy Bay's layout features 2 staterooms and a forward cabin with 2 single 2m + bunks in v berth configuration.
The aft stateroom features a queen sized Island bed, with dresser, work desk excellent ventilation and natural light with several opening ports including a large overhead hatch and a private bathroom with seperate shower stall. The forward stateroom features a queen sized pullman berth to starboard, bathroom to port with seperate shower and a clothes washing machine. Abundant storage and excellent lighting and ventilation are a feature of Cloudy Bay's accomodation.
Descend the companionway and you are overwhelmed by the feeling of spaciousness. The layout places the navigation station immediately to starboard with chart table, instruments with ample stowage in draws and shelves. Forward, a large dining table and U shaped lounge with seating for 8 adults. Opposite to port are two single seat lounges. Adjoining the saloon is the Galley located to port.
Cloudy Bay's layout features 2 staterooms and a forward cabin with 2 single 2m + bunks in v berth configuration.
The aft stateroom features a queen sized Island bed, with dresser, work desk excellent ventilation and natural light with several opening ports including a large overhead hatch and a private bathroom with seperate shower stall. The forward stateroom features a queen sized pullman berth to starboard, bathroom to port with seperate shower and a clothes washing machine. Abundant storage and excellent lighting and ventilation are a feature of Cloudy Bay's accomodation.
Cabins
3
Berths
2 queens and 2 singles (v berth)
Shower
2 enclosed showers plus 1 deck shower
Toilet
2 electric
Entertainment
TV and Stereo
Air-Con
Climate 20kBTU. Plus Heating Webasto air top 3500 Diesel with outlets in all cabins
Galley

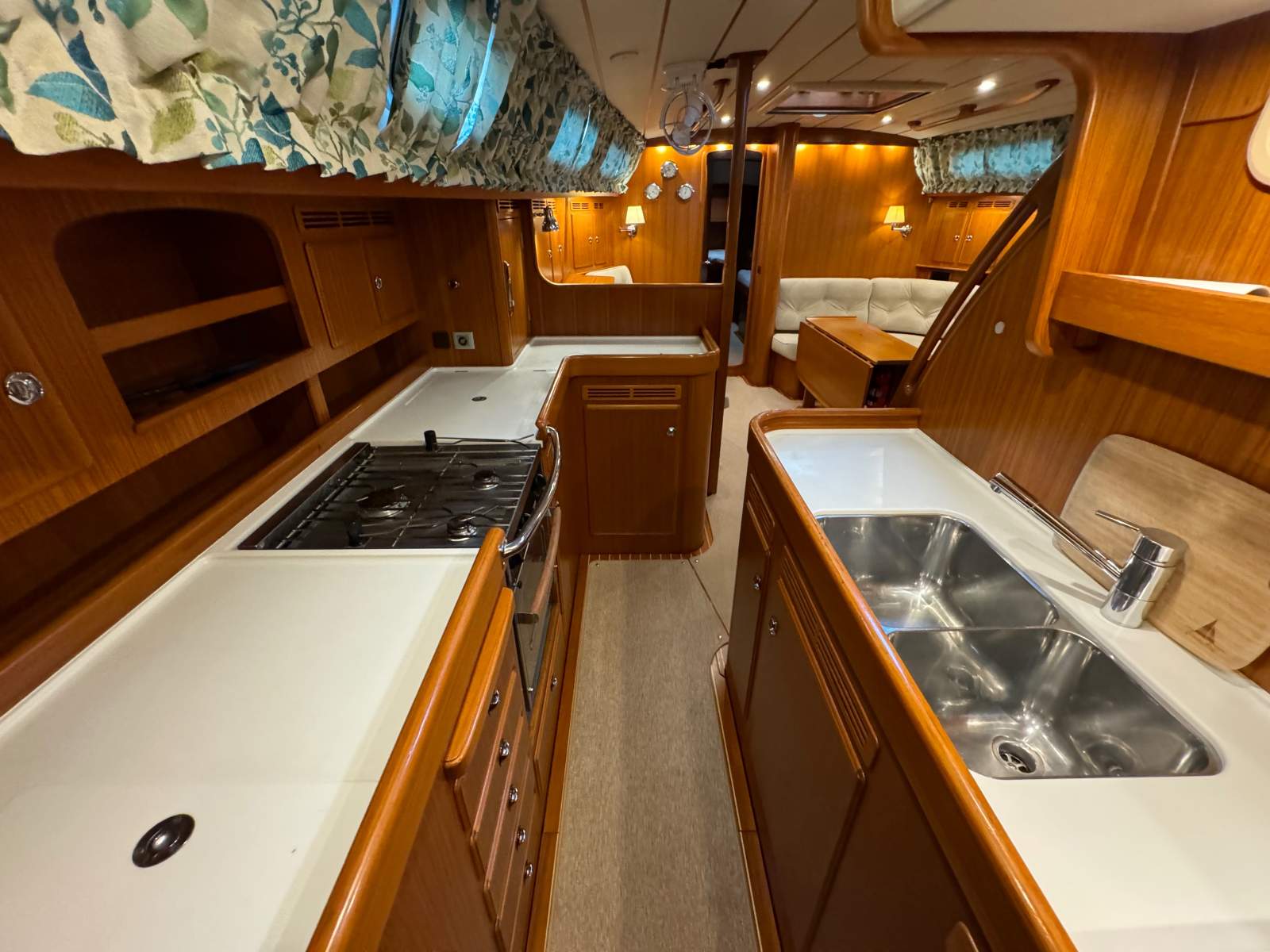

The galley features massive bench space with storage in draws and cupboards. The Force 10 stainless steel 3 burner range with oven and grill presents as new. Fridge and seperate freezer are accesed from the benchtop and both utilise a basket storage system that maximises food storage. A double bowl stainless steel sink is located opposite the stove.
Refrigeration
Top loading under counter with baskets for storage management
Freezer
Top loading under counter with baskets for storage management
Stove
Force 10 Stainless Steel 3 burner gas with oven and grill. As new
Water-Maker
ENWA MT3200.135l/hr. All hoses new in 2022
Hot Water
Yes engine and electric heating
Ground Tackle
46kg S/S Ultra anchor with 100m galvanised chain, New windlass with remote 2021
Safety Gear
Coastal
Bilge Pumps
3 Auto electric 1 manual
Electronics / Navigation
RAYMARINE MFD (cockpit and nav station) Axiom Pro-12 (2022)
RAYMARINE cockpit instruments 5x i 70
RAYMARINE autopilot control plus repeater at nav station P70
RAYMARINE autopilot AV400
RAYMARINE autopilot backup ST7000
RAYMARINE autopilot remote S100
RAYMARINE Liniar drives Type 2 (2 on quadrant)
RAYMARINE Radar Qantum
FURUNO Navtex NX300/D
FURUNO AIS FA100 class A
Starlink
FURUNO VHF FM 2721 Nav and Helm
ICOM SSB/HF ICM801
RAYMARINE cockpit instruments 5x i 70
RAYMARINE autopilot control plus repeater at nav station P70
RAYMARINE autopilot AV400
RAYMARINE autopilot backup ST7000
RAYMARINE autopilot remote S100
RAYMARINE Liniar drives Type 2 (2 on quadrant)
RAYMARINE Radar Qantum
FURUNO Navtex NX300/D
FURUNO AIS FA100 class A
Starlink
FURUNO VHF FM 2721 Nav and Helm
ICOM SSB/HF ICM801
Sail Inventory
New 2021 Elvstrom Genoa, Staysail, Main
Mast / Rigging
Selden Mast and Boom. Removed and serviced including: New spreaders, Vang, Standing Rigging and external hydraulic lines 2021
Remarks
HR 54 is a wonderful example of a safe, comfortable, fast, and beautiful bluewater cruiser. She turns heads wherever she goes, and clearty demonstrates why Hallberg-Rassy enjoys such a remarkable reputation throughout the world.
Cloudy Bay was designed and outfited for extensive unlimited cruising and set up so she can be sailed single-handed or accommodate a large crew in comfort as weil. With hydraulic furling (main, outhaul, genoa, cutter), electric winches and bow thruster, you have push button saling at its best. This particular HR54 has the most desirable floorplan and features a true walkthrough engine room.
Cloudy Bay was purchased in 2008 with many factory upgrades, including teak interior and Alcantara upholstery. She has always been meticulously maintained to the highest standard. A comprehensive spreadsheet can be provided detailing maintainence and upgrades over her lifetime.
We can arrange delivery and importation to anywhere in the globe. If you are looking for a fine quality cruising yacht please contact me to discuss the possibilities.
Cloudy Bay was designed and outfited for extensive unlimited cruising and set up so she can be sailed single-handed or accommodate a large crew in comfort as weil. With hydraulic furling (main, outhaul, genoa, cutter), electric winches and bow thruster, you have push button saling at its best. This particular HR54 has the most desirable floorplan and features a true walkthrough engine room.
Cloudy Bay was purchased in 2008 with many factory upgrades, including teak interior and Alcantara upholstery. She has always been meticulously maintained to the highest standard. A comprehensive spreadsheet can be provided detailing maintainence and upgrades over her lifetime.
We can arrange delivery and importation to anywhere in the globe. If you are looking for a fine quality cruising yacht please contact me to discuss the possibilities.
